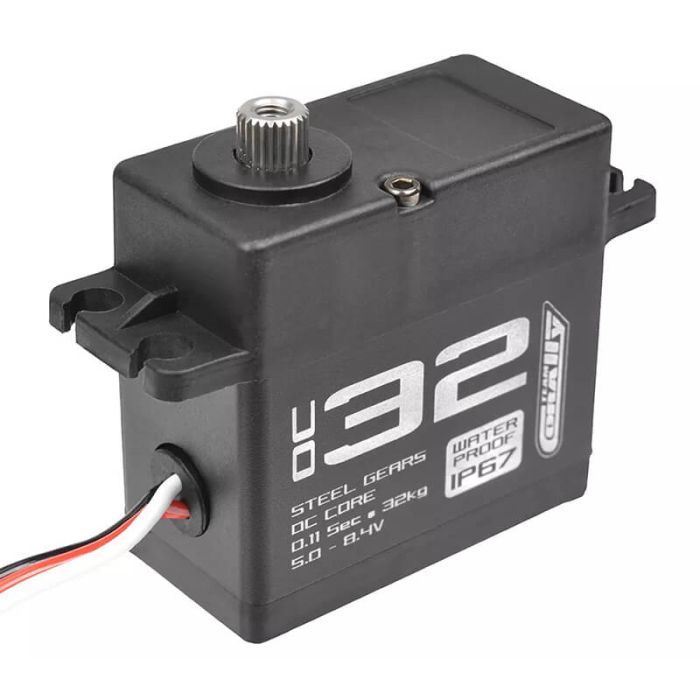

Corally Digital Servo Oc 32 High Voltage Metal Gear 32kg
See All:
Servos
Description
Specifications
Speed 60°/Sec @ 6.0V: 0,14
Speed 60°/Sec @ 7.4V: 0,13
Speed 60°/Sec @ 8.4V: 0,11
Torque kg/cm @ 6.0V: 24,2
Torque kg/cm @ 7.4V: 27,8
Torque kg/cm @ 8.4V: 32
Rated Current (mA): 800
Servo Type: Standard Servo
Spline Type: 25T Spline
Length (mm): 40
Width (mm): 20,2
Height (mm): 37,8
Weight (g): 55
Technology: Digital HV
Operating Voltage (V): 6.0V - 8.4V
Servo Motor: DC Core Motor
Servo Protection: Water - Dust Resistant
Servo Positioning: VR Potentiometer - Direct Drive
Servo Gears: Metal Gears
Servo Case: Aluminium + Composite Case
Connector: JR Universal + Colored Lead
More Information
| Part Number | C-52016 |
|---|---|
| Manufacturer | Corally |
