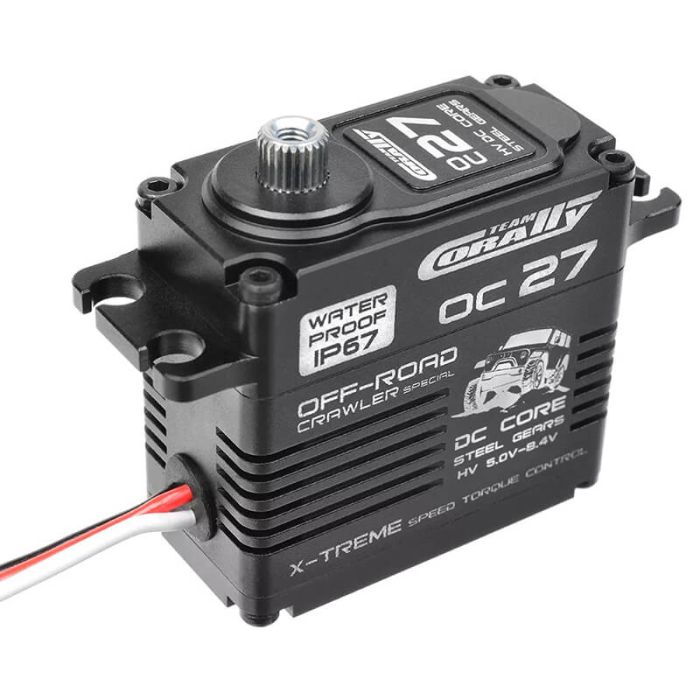

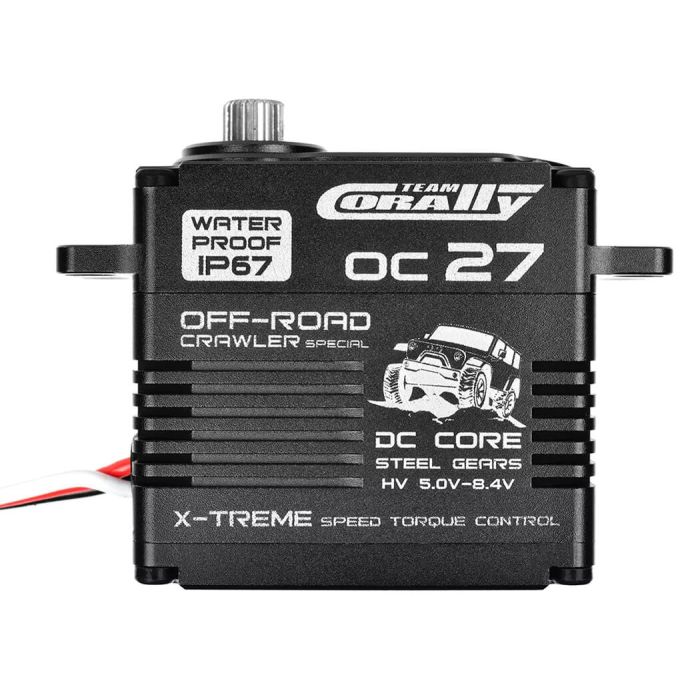

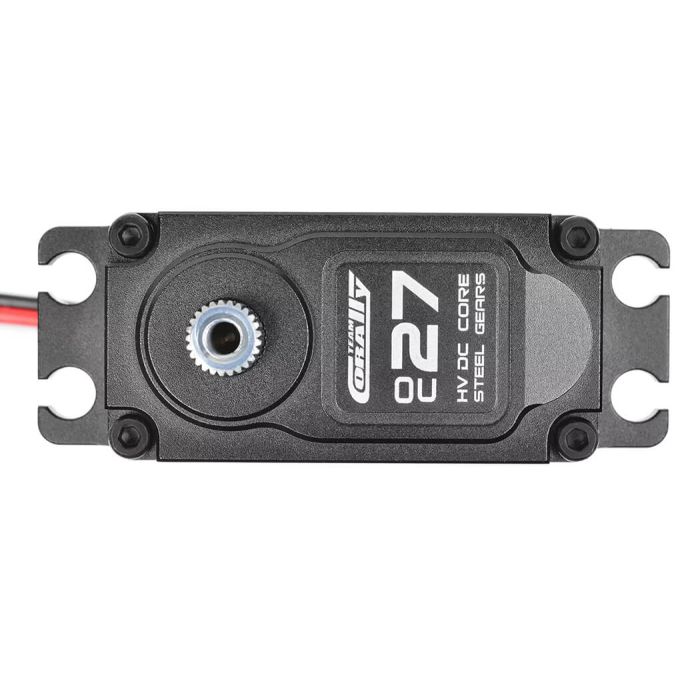

Corally Oc27 Hv Digital Servo 5-8.4v Ip67 Steel Gear Alloy C
See All:
Servos
Description
Are you looking for some powerful control!
We have developed these servos with the basher in mind, ultimate digital power, precision and reliability.
Features
Specifications
Speed 60°/Sec @ 6.0V: 0,15
Speed 60°/Sec @ 7.4V: 0,13
Speed 60°/Sec @ 8.4V: 0,11
Torque kg/cm @ 6.0V: 17,7
Torque kg/cm @ 7.4V: 23,6
Torque kg/cm @ 8.4V: 27,3
Servo Type: Standard Servo
Spline Type: 25T Spline
Length (mm): 40
Width (mm): 20
Height (mm): 37
Technology: Digital HV
Operating Voltage (V): 6.0V - 8.4V
Servo Motor: DC Core Motor
Servo Protection: Waterproof IP67
Servo Positioning: VR Potentiometer - Direct Drive

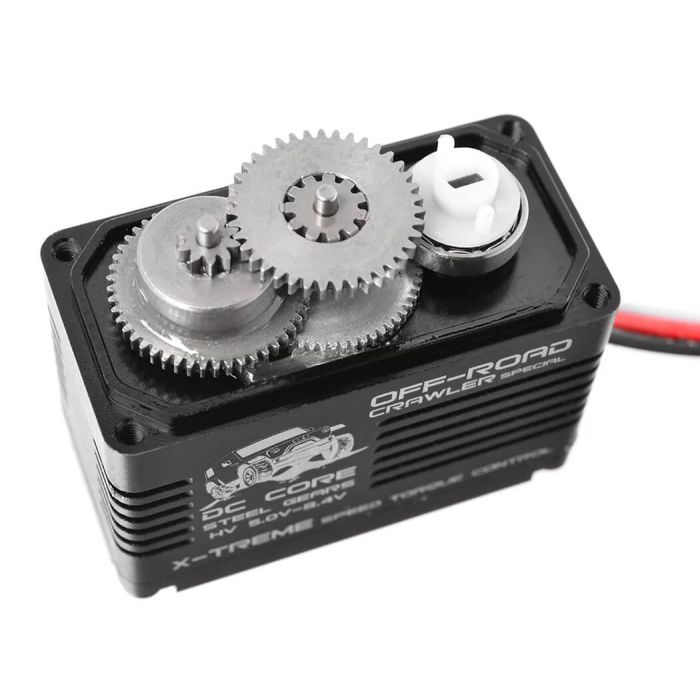

Servo Gears: Steel Gears
Servo Case: Aluminium Case

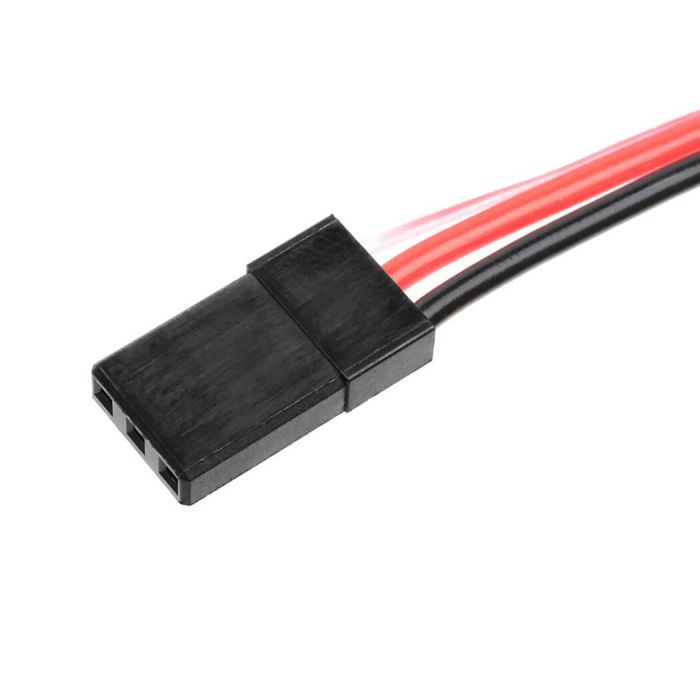

Connector: JR Universal + Coloured Lead
More Information
| Part Number | C-52015 |
|---|---|
| Manufacturer | Corally |
