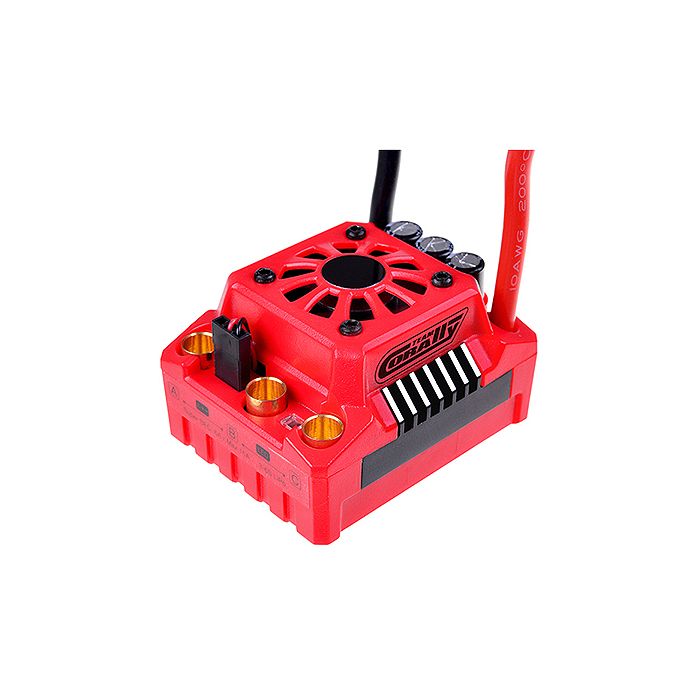

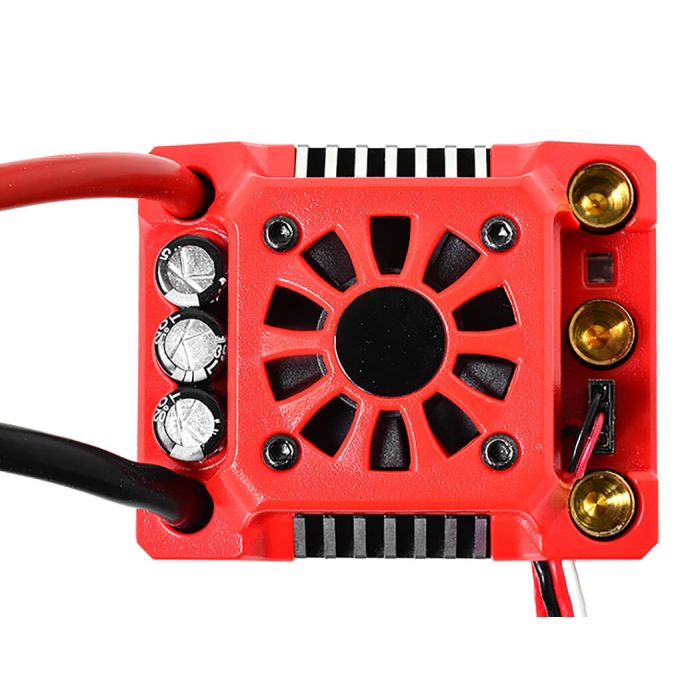

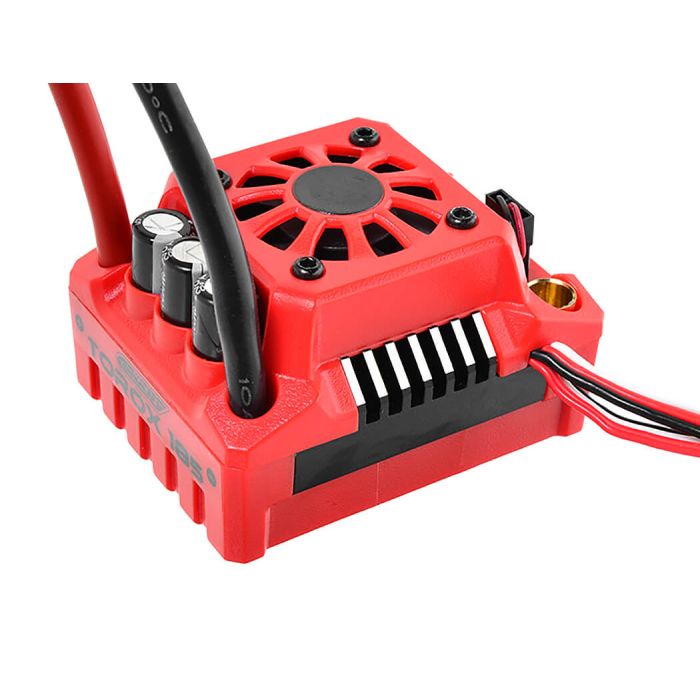

Corally Speed Controller Torox 185A 1/8 RC Car Brushless ESC for 3-6S LiPo
See All:
Motors & ESC's
Description
Specification
Max. Cont. Current (A): 185 A
Motor Limit: 4S LiPo = 3000 Kv (40XX series of motors) 6S LiPo = 2400 Kv (40XX series of motors)
Input Voltage (V) min. - max.: 11.1-22.2
Max. Current (A): 950 A
Length (mm): 60.0mm
Nr of Li-xx Cells: 3-6S
Width (mm): 48.0mm
Nr of Ni-xx Cells: 9-18 Cell NiMH
Motor Type: Sensored / Sensorless Brushless Motor (only in sensorless mode)
Height (mm): 36.5mm
BEC Voltage (V): 6-7.4 V programmable
BEC Current (A): 6 A
Programmable: Yes
Programming Card: Hobbywing LED (optional)
Throttle Mode: Forward / Reverse programmable Reverse lockout
Drag Brake: 0-16% programmable
Battery Mode: NiMH/LiPo programmable
Lipo Cut-Off: programmable
Thermal Protection Temperature: 105?C / 125?C programmable
Water Protection: Yes
Element Protection: Yes
Cooling Fan: 30x30x10mm
Connector (Motor): 6.5 mm female
Connector (Battery): XT90-connector
Battery Wire Size: 10 AWG
Car Type Use: 1/8th scale
More Information
| Part Number | C-54011 |
|---|---|
| Manufacturer | Corally |
