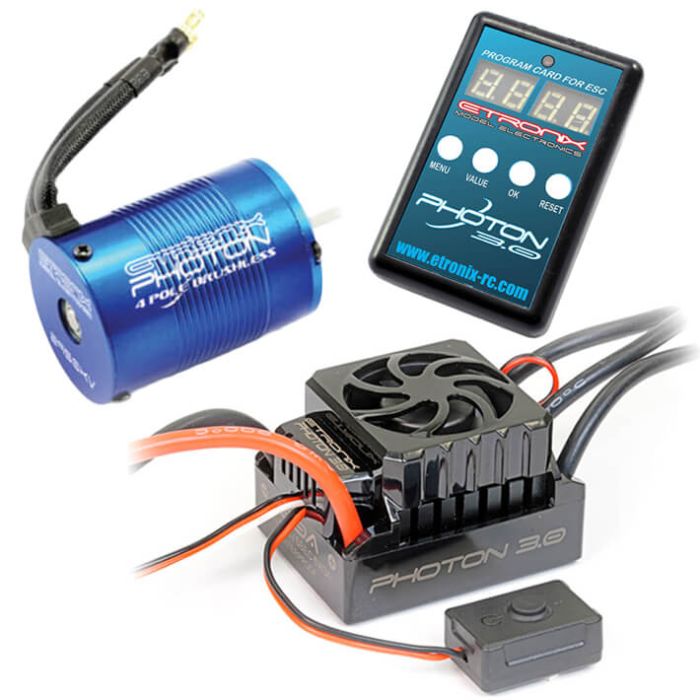

Etronix Photon 3.0 60A ESC / 13.0R 2950kv Brushless Motor Combo

Unlock the convenience and performance of brushless technology with the 60A Photon 3.0 Sensorless Waterproof System. Designed for easy setup and offering a range of sensible KV-rated motors for most 1/10-scale off-road applications, the 60A Photon 3.0 is the ideal upgrade from a stock brushed system or the perfect starting point for upgrading your stock RTR brushless build. Whether you’re running a 1/10-scale buggy, truggy, short-course, or stadium truck, the Photon 3.0 delivers reliable power, smooth throttle control, and exceptional value.

With the included programmable setup card (ET0106), you can finely tune sixteen different ESC parameters to perfectly suit your driving style and setup.

ESC Specifications

2-3S LiPo or 5-10 Cell NiMH/NiCd

BEC Output: 6V/3A

Motor Type: Sensorless brushless motor

Max Continuous Current: 60A

Burst Current: 360A

Program By: ET0106 only

Waterproof: Yes

Dimensions: 48x38x32mm (without fan)

Weight: 96g

Adjustable Parameters

Throttle Response

Coast – Off, 10 to 30

Neutral Range – 5% to 12%

Minimum Throttle – 5% to 16%

Maximum Forward Force – 40% to 100%

Maximum Reverse Force – 40% to 100%

Brake Response – 0.1 ms to 3 ms

Minimum Brake Force – Off, 15% to 50%

Maximum Brake Force – 50% to 100%

Forward Drag Brake Force – Off, 20% to 100%

Reverse Drag Brake Force – Off, 20% to 100%

Motor Rotation – CW or CCW

Running Mode – 3 Options

Reverse Mode – Available only when the running mode is set to Forward/Brake/Reverse

Cut-Off Voltage – Off or Auto

Thermal Protection – Off, 95 °C or 105 °C

Part Number	ET0445
Manufacturer	Etronix

Etronix Photon 3.0 60A ESC / 13.0R 2950kv Brushless Motor Combo
