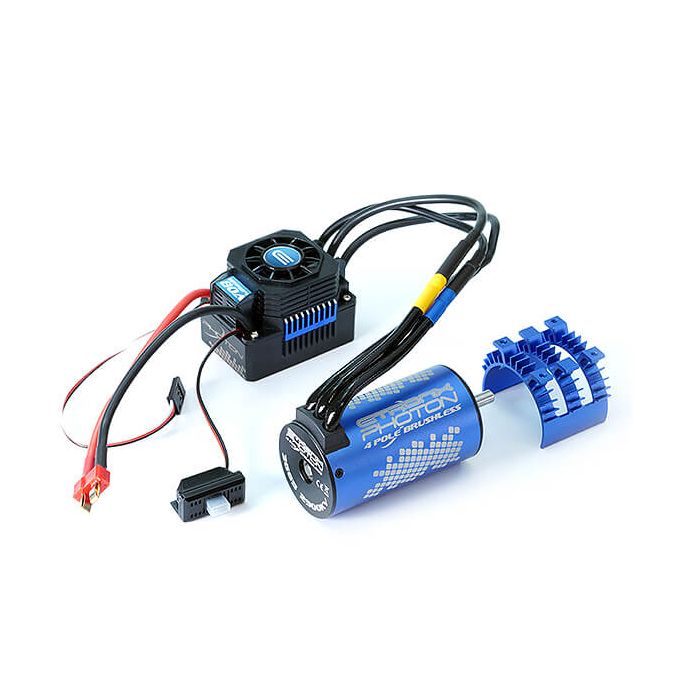

Etronix Photon 80a Brushless ESC & 2900kv 3665 Motor Combo

See All: Motors & ESC's

See All: Motors & ESC's

No Stock - Available to Backorder

£87.99

Description

With systems available ranging from 45A through to 120A there is something within the Photon range for every 1/10th application.

With the optional programmable set up card (ET0449) the user can finely tune different parameters within the ESC to suit their particular needs.

ESC FEATURES

Waterproof (without fan installed)

2-3S Lipo

6-9S NiMH/NiCd

3A 6.1V BEC Output

Sensorless brushless motor

2S 3670 size or smaller 3000kV Motor limit

3S 3670 size or smaller 2500kV Motor limit

80A Constant current

480A Burst Current

ESC SPECIFICATIONS

Dimensions :- 51.5x38.5x38.5mm (without fan)

Weight :- 84g

MOTOR SPECIFICATIONS

KV Rating: 2900KV

Size: 3665

Max RPM: 50000

Max voltage: 14.8v

Max amps 95A

Rotor poles: 4

Diameter: 35.5mm

Length: 64.5mm

Shaft length: 17mm

Weight: 250g

More Information

Part Number	ET1284-29
Manufacturer	Etronix
