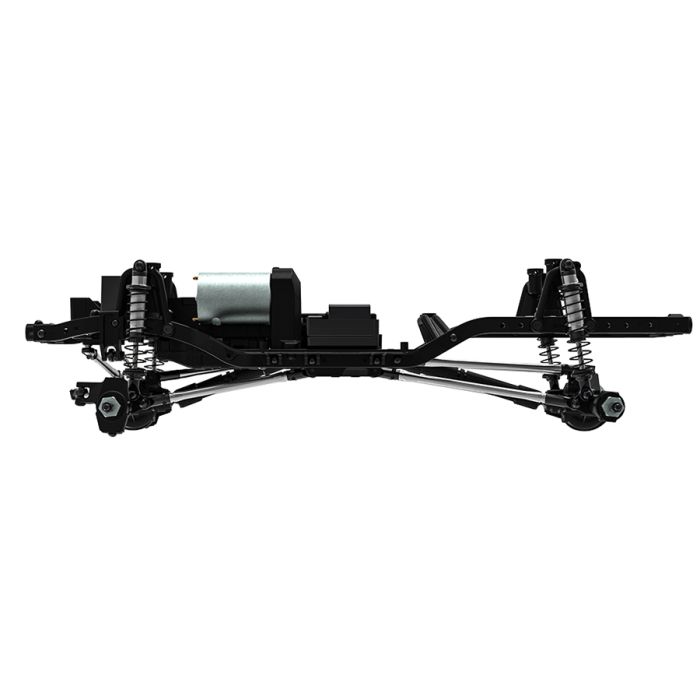

Gmade 1:10 GS02 TS Chassis Kit RC Jeep Truck Rock Crawler

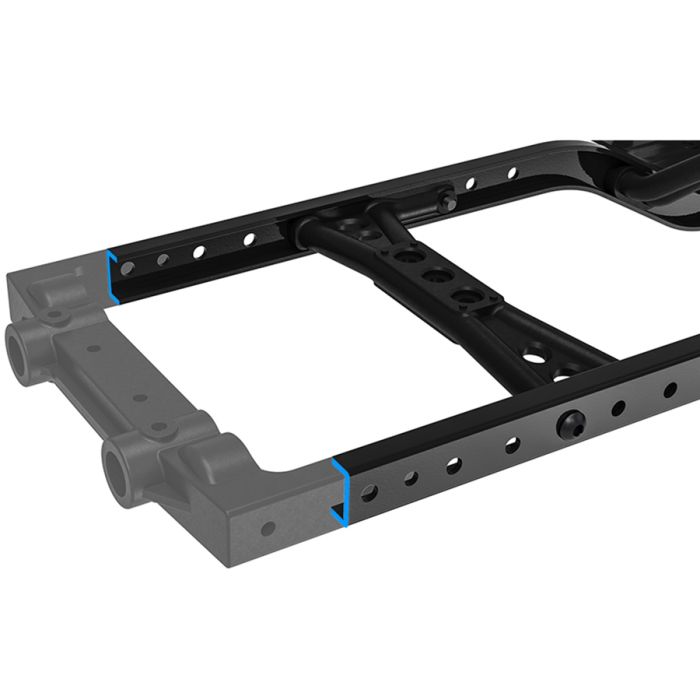

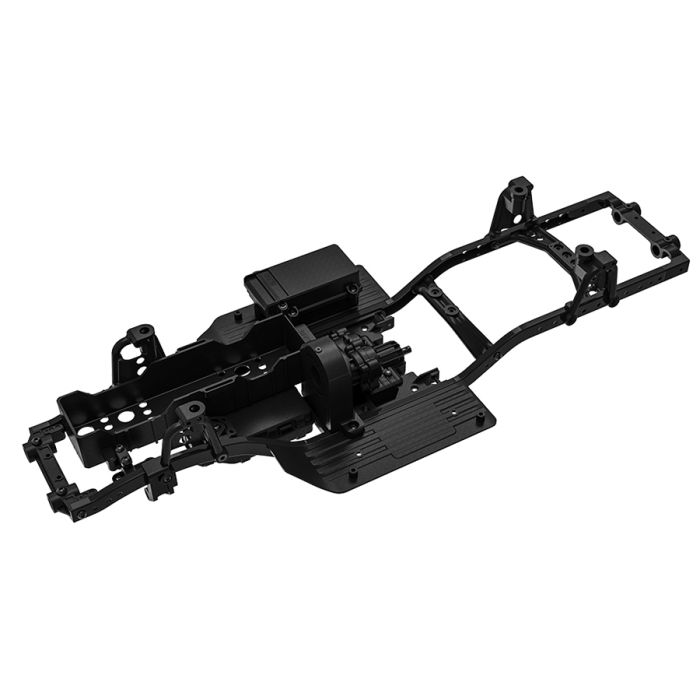

The GS02 frame is designed to look like a chassis of a real truck. The frame is made of high strength steel C-Channel rails, cross-bolted, making it resistant to twisting or wrapping. Steel parts are black powder coated to prevent rust.

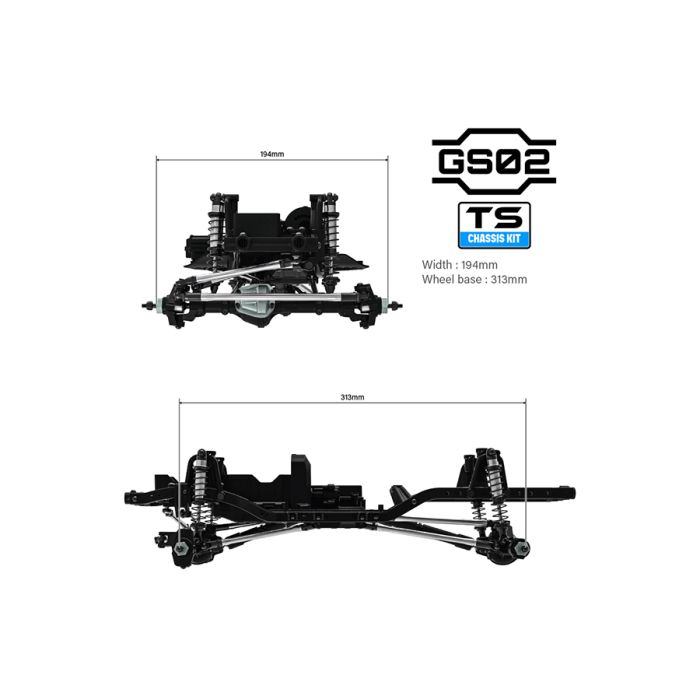

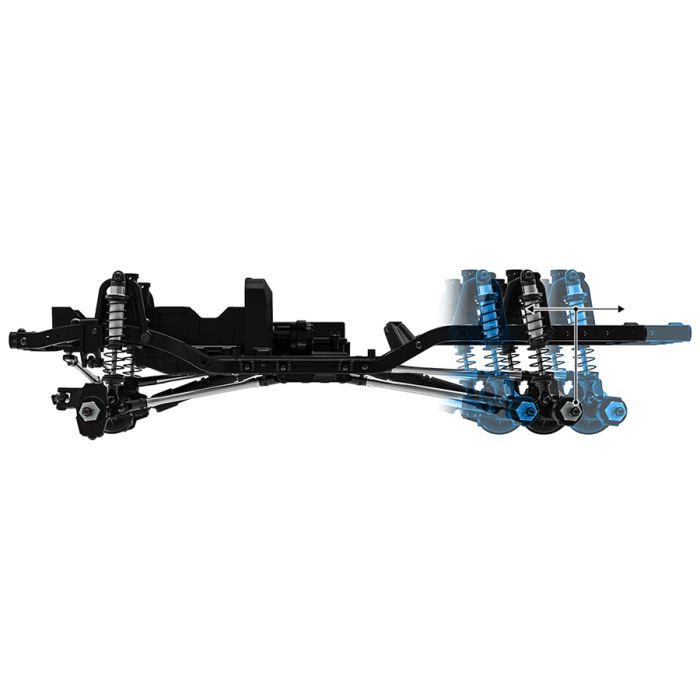

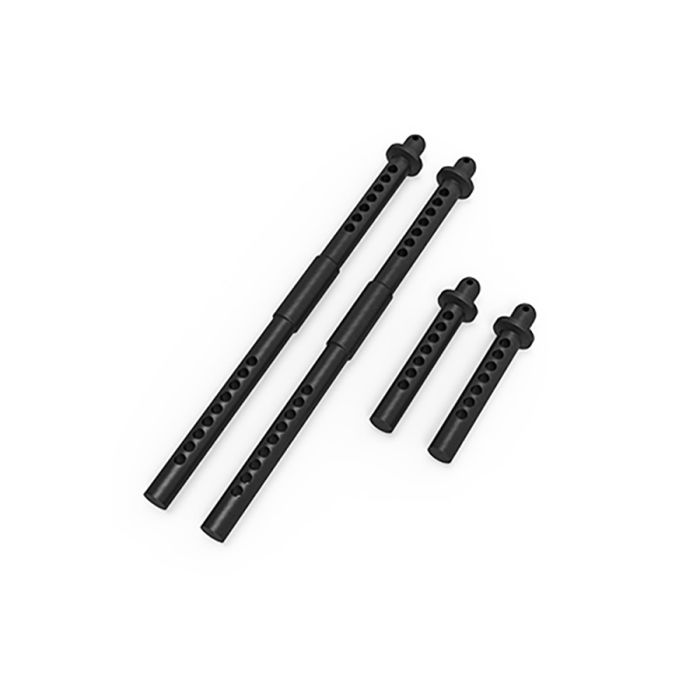

The chassis allows easy adjustment of wheelbase. Use any type of 300, 313 and 324mm bodies, (optional link kits are sold separately). Adjustable body posts are included.

Weight balance is designed to be placed forward of the car, increasing traction to the front wheels, providing better crawling confidence on high tilt angles while minimising the chance of rolling over.

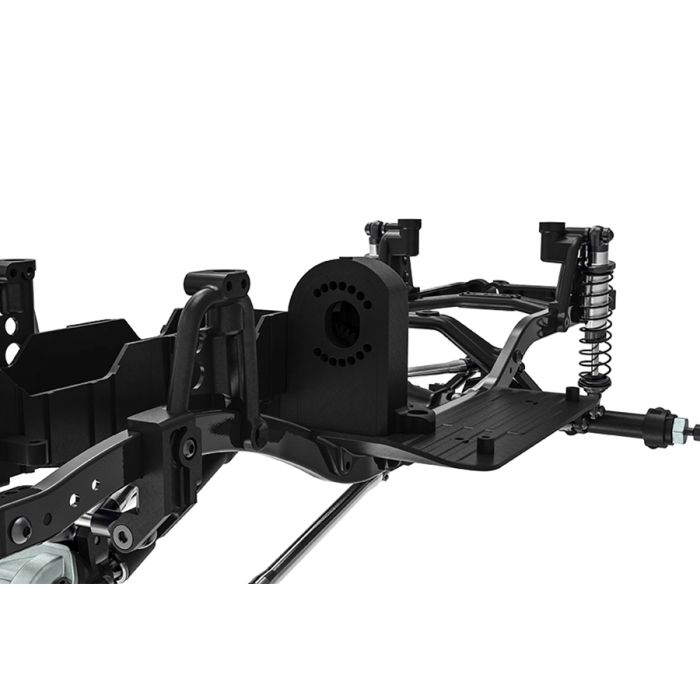

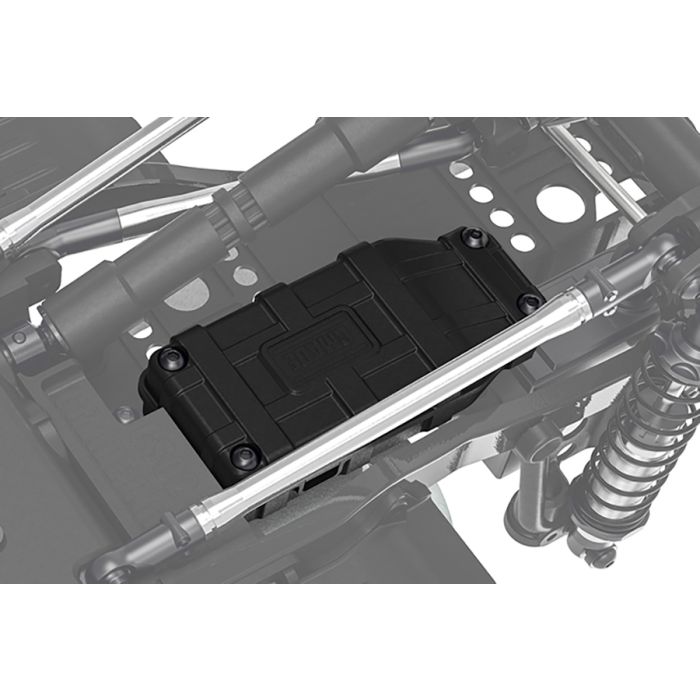

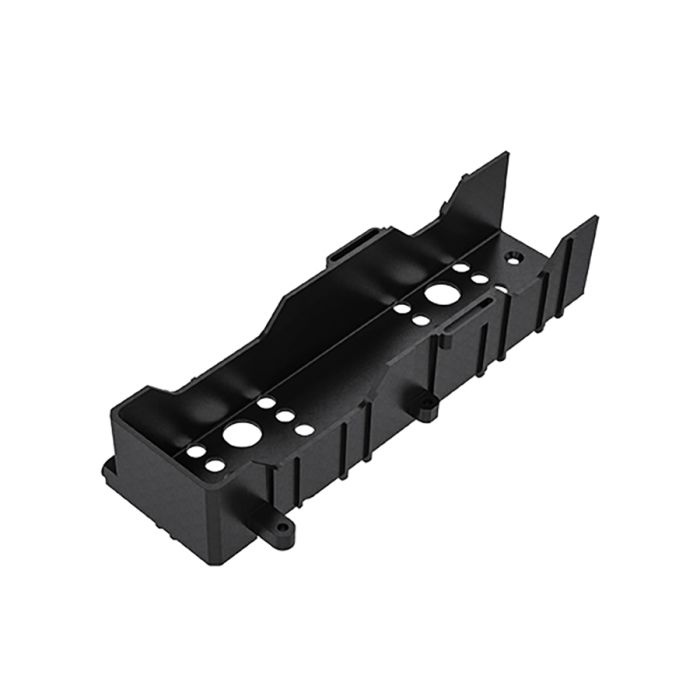

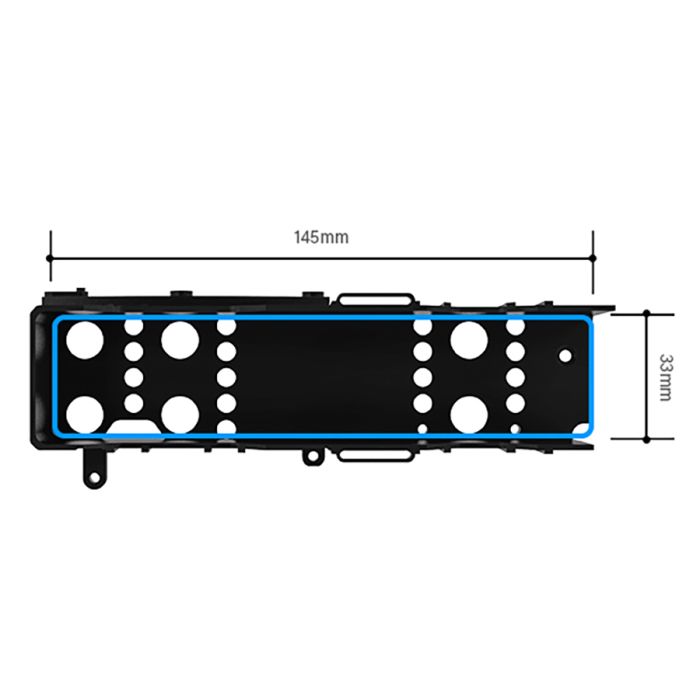

The waterproof receiver box protects the receiver from water, mud and snow. The battery can be easily replaced and can accommodate up to 7,600mAh 2-cell Lipo batteries or 5,000mAh 3-cell Lipo batteries. The dust-proof electronics box protects electronic equipment such as winch controllers and BEC.

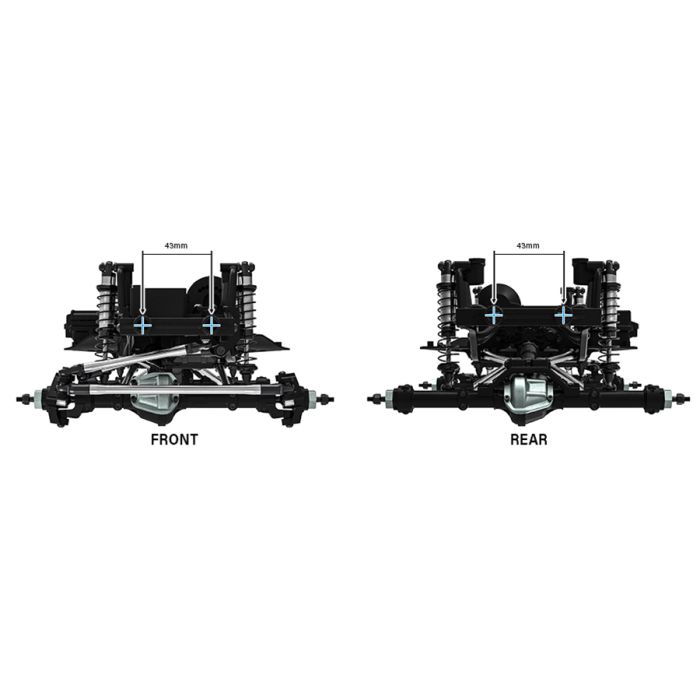

Front and rear bumper mounts are features, with a mount-to-mount length of 43mm

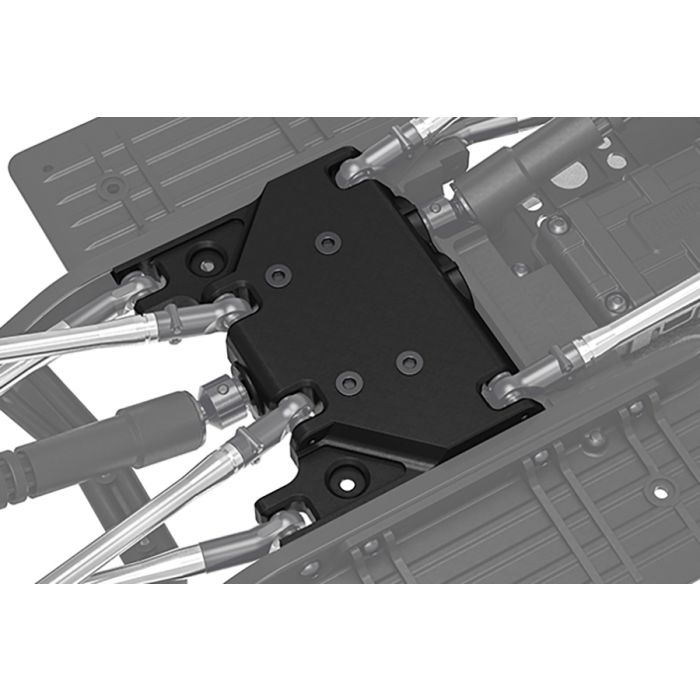

The skid plate protects the transmission and other critical components. It allows the truck to slip and ride on rocks and other obstacles easily.

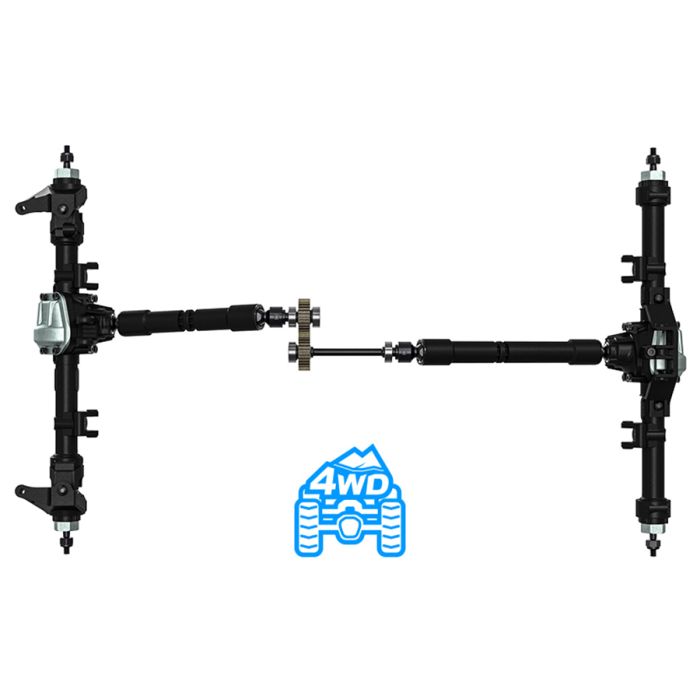

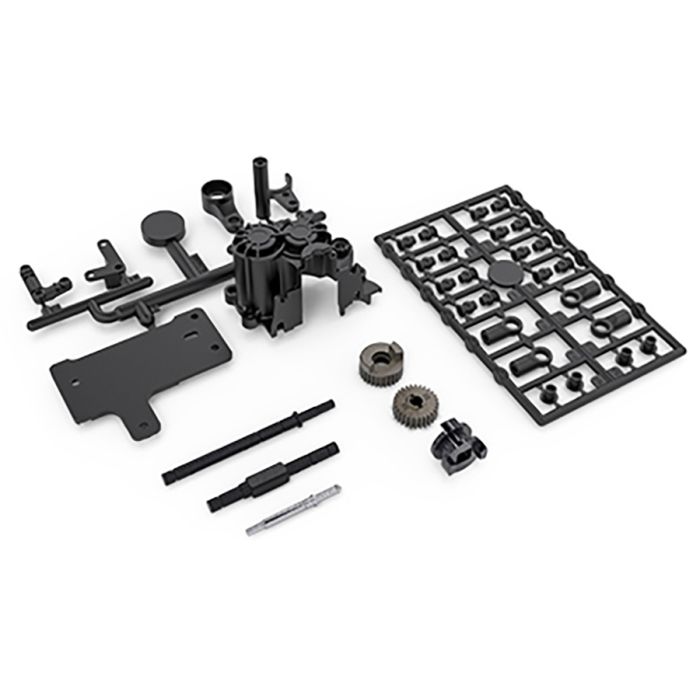

The TTR transmission is designed to minimise torque transmitted from the drivetrain through to the chassis.

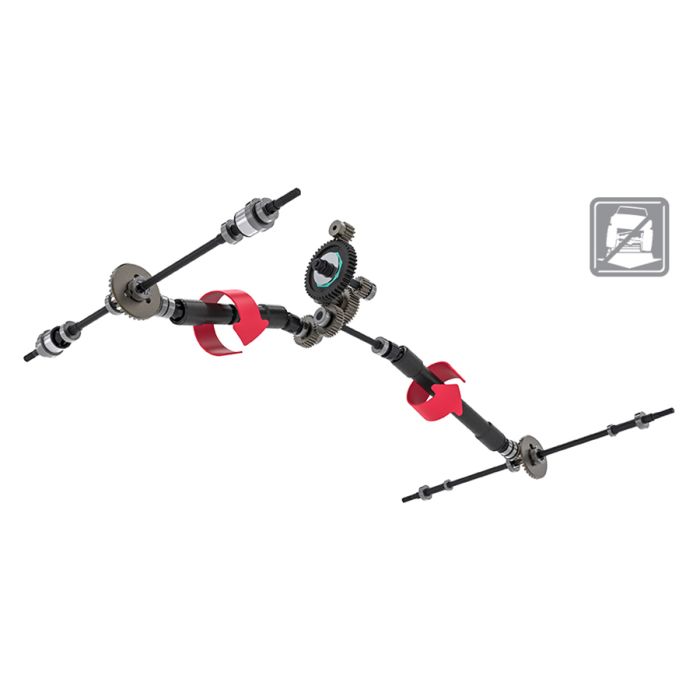

The front and rear universal shafts rotate in opposite directions, cancelling out unwanted rotational forces.

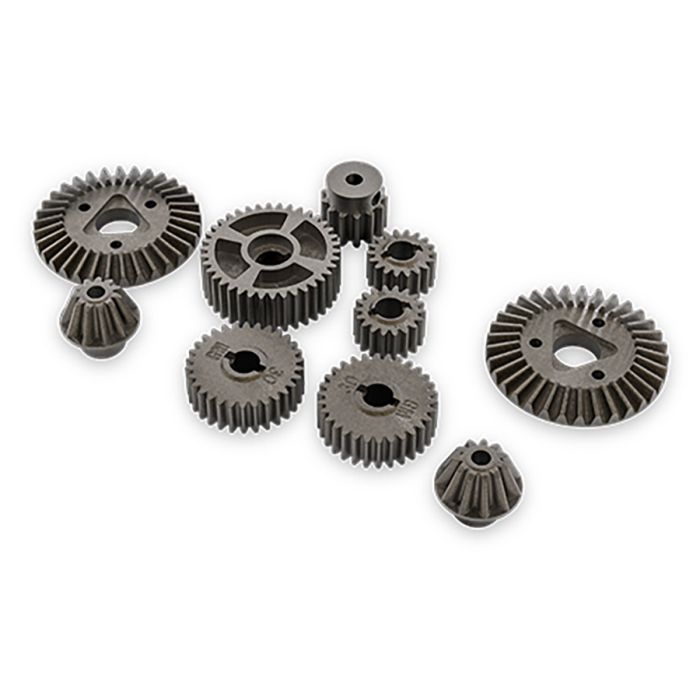

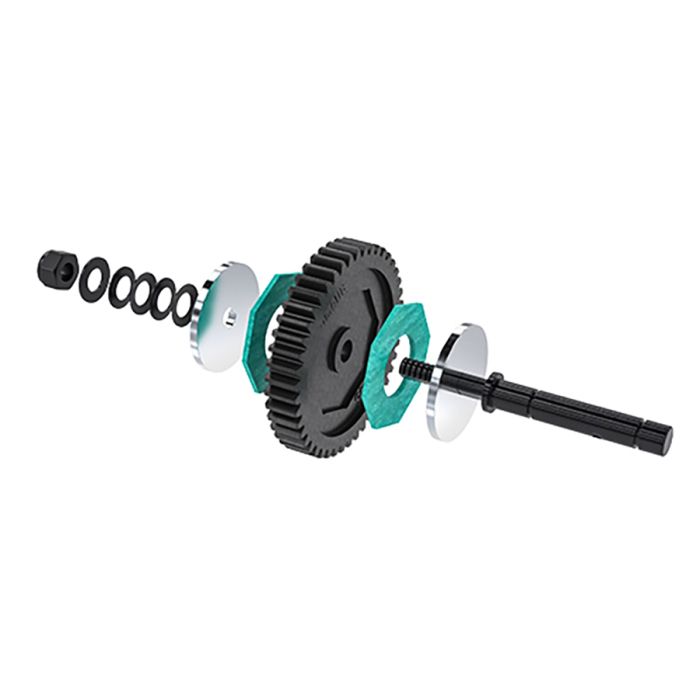

The drivetrain also features dual slipper clutches, further complimenting smooth transfer of power. Furthermore, easily replaceable motor pinion gear allows speedy changes to gear ratio.

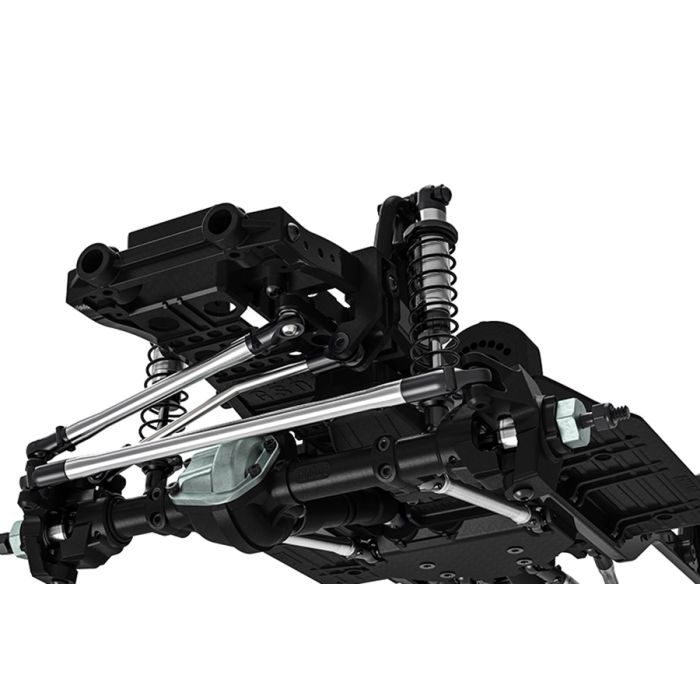

The GA44 axle is designed with the hardcore rock crawler in mind. The driveline of the front and rear axles are arranged in a straight line to reduce stress on the drivetrain.
Axles are made of high strength materials, and it will look and perform off-road as a real 1:1 vehicle when a 4-link suspension is added. The GA44 axle is housed in a durable one-piece casing. The angle of the differential cover is designed to reduce the risk of damage due to frontal impact, ideal for off-road driving.

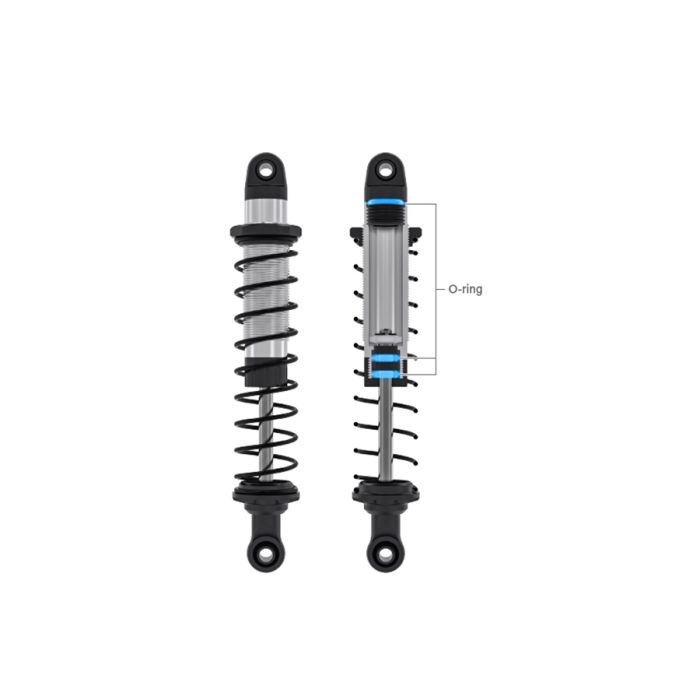

SD Scaler Shocks are an oil shock absorber featuring aluminium shock body and 3.5mm heavy duty shock shafts. Easily adjustable so you can quickly change your setup when driving conditions change.

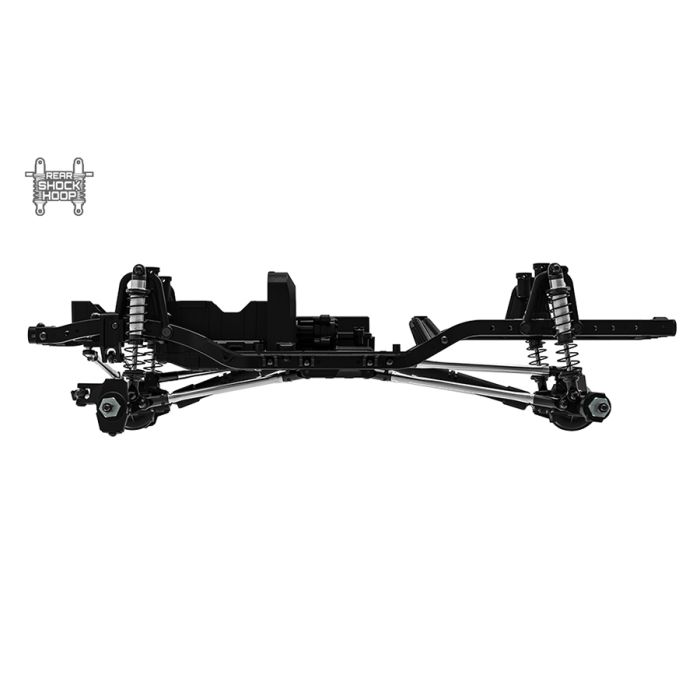

The GS02 Rear Cantilever Suspension System is designed for custom flat beds and full drop beds. This provides the clearance for big wheel and tyre setups.

Requires:
