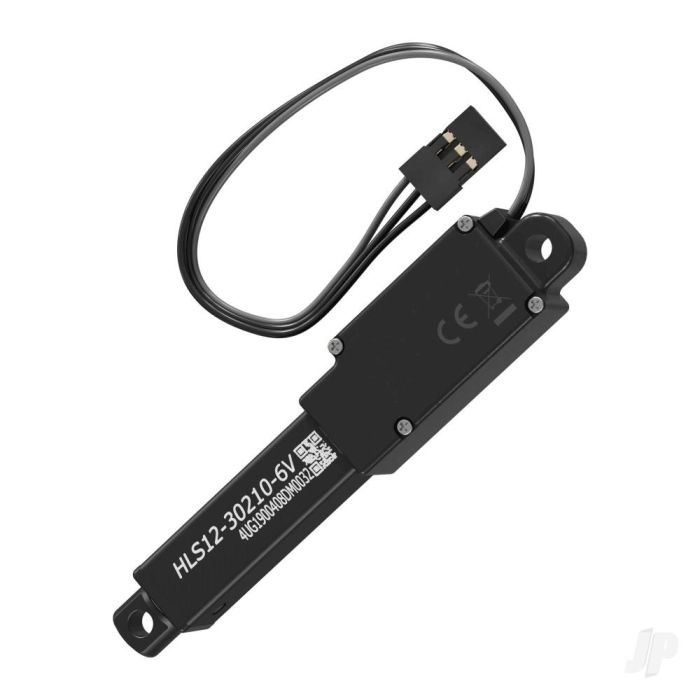

Hitec HLS12-30210-6V 30mm Stroke 210:1 Linear Servo 8kg/2.3mm/s 4.0V - 8.4V
See All:
Servos
Description
FEATURES
- Command Protocol: PWM
- Lead Screw: 5mm
- Motor Type: Cored Metal Brush
- Operating Voltage (Volts DC): 4.0V ~ 8.4V
- Testing Voltage: 6.0V
- Gear Ratio: 100:1
- No Load Speed: 13.0mm/s
- No Load Current: 100mA
- Maximum Efficiency Point: Load (kg / N): 1.7 / 17Speed (mm/s): 13.0Current (mA): 200
- Pear Power Point: Load (kg / N): 3.1 / 31Speed (mm/s): 7.0Current (mA): 300
- Max Force (Lifted): Load (kg /N): 4.2 / 42Speed (mm/s): 3.2Current (mA): 400
- Stall Force: 5.0kgf (49.03N)
- Stall Current: 500mA
- Max Static Force: 20.39kgf (200N) (above)
- Stroke SPEC: 300mm
- Repeatability: ±0.2mm
- Max Side Load (Extended): 4.08kgf (40N)
- Outline Dimensions: 82.0 x 15.0 x 18.0mm (3.23 x 0.59 x 0.71 in.)
- Weight: 34g (1.199oz)
- Connector Wire Length: 160mm (6.29 in.)
- Connector Wire Gauge: 24AWG
- Bearing Type: Flange bearing
- Case Material: Engineering Plastic & Aluminium Pipe
- Gear Material: 4 Metal Gears
- IP Rating: IP4X
- Servo Amplifier Type: 32bit programmable Digital
DETAILS
With 30mm of travel and a 210:1 gear ratio, the HLS12-30210 is ideal for short stroke applications requiring higher power. Controlled using a traditional PWM servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility. Additionally, Hitec linear actuators provide full excursion using a 1050 - 1950s input range. This feature allows fully compatible use with all radios, by eliminating the requirement for programming extended rates to achieve full motion.More Information
| Part Number | 2212202 |
|---|---|
| Manufacturer | Hitec |
