Hobbywing Combo A Xr8 Plus G2s ESC & 4268 G3 On 2000kv Motor
See All:
Motors & ESC's
Description

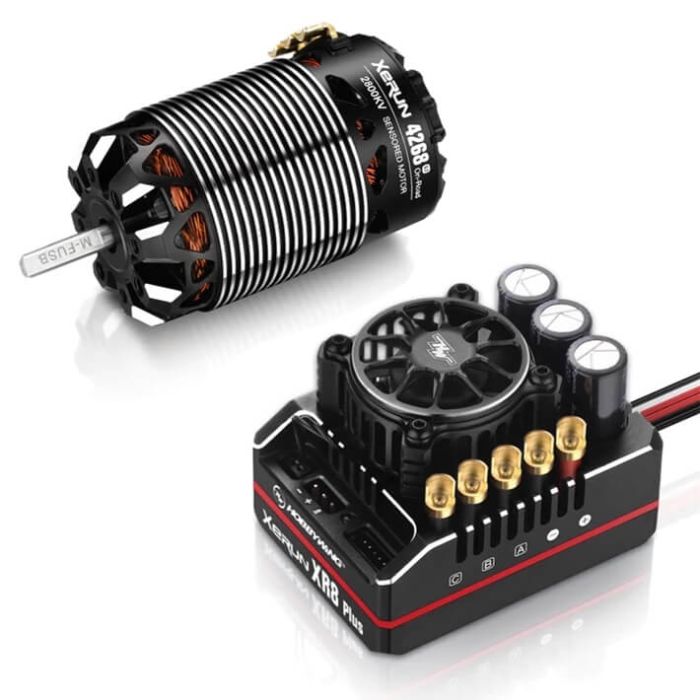

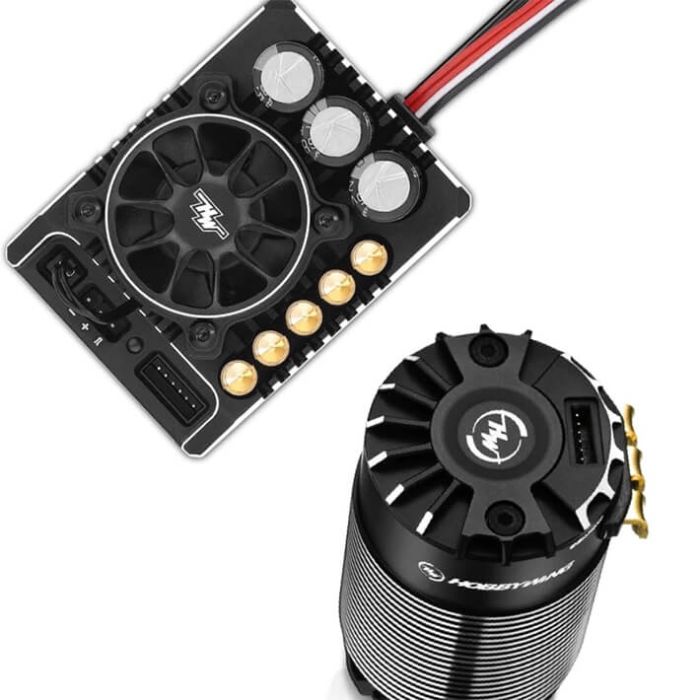

Born for 1/8th Competition, the Hobbywing XR8 PLUS G2S Combo A pairs the high-performance 200A ESC with the powerful 4268 G3 2000KV brushless motor. This system is ideal for 1/8th GT and Pan Car applications, offering an exceptional balance of power and efficiency. The motor's lighter weight (compared to previous generations) and the system's ability to run in "Pure Sensored" mode provide a smoother throttle response and better vehicle balance. This combo enables Turbo Timing technology, which can boost maximum speed by up to 50%, and includes an advanced cooling system, a high-output 15A internal BEC, and robust protection features for reliable top-level on-road racing.
FeaturesFull-Sensored Mode and Turbo Timing Technology (up to 48 degrees) for maximum speed boost when paired.
ESC Cont./Peak Current: 200A/1080A.
Super Internal BEC with a maximum output of 15A, adjustable from 6V to 8.4V.

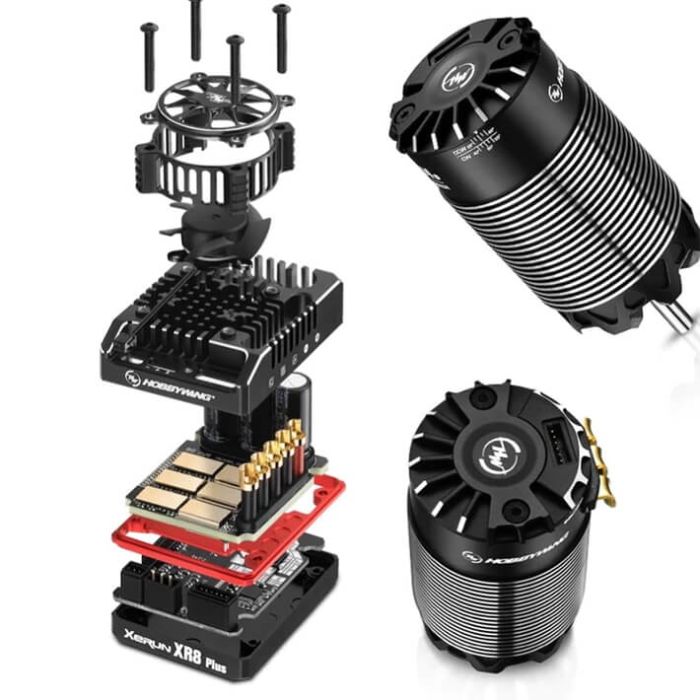

Efficient Heat Dissipation System on ESC with a durable, frameless fan.
Internal Battery-Reverse Polarity Protection Circuit on ESC.
Wireless Programming, upgrading, and real-time data recording via the optional OTA Bluetooth module.
Motor is part of the 4268 On-Road series, suitable for 1/8th Pan Car and GT.
Motor features low RPM (No Current) Torque ripple for smooth, low-speed performance.
Capacitor Thermal Protection implemented on ESC to prevent overload damage.
SpecificationsScale: 1/8th (On-Road / GT / Pan Car)
Input Voltage: 2-6S LiPo
ESC Cont./Peak Current: 200A/1080A
BEC Output: 6.0V - 8.4V (Adjustable), 6A/15A (Cont./Peak)
Motor KV: 2000KV (4268 G3 On-Road Series)
KV Limit (4S LiPo): 4268 ≤ 3000KV
ESC Size: 56.1mm x 42.1mm x 38.5mm
ESC Weight: 122g (with wires)
Waterproof Rating: No (IP5X Dust-proof only)
Programming: LCD Program Box or OTA Programmer (Sold Separately)
Features
Specifications
More Information
| Part Number | HW38020502 |
|---|---|
| Manufacturer | Hobbywing |
