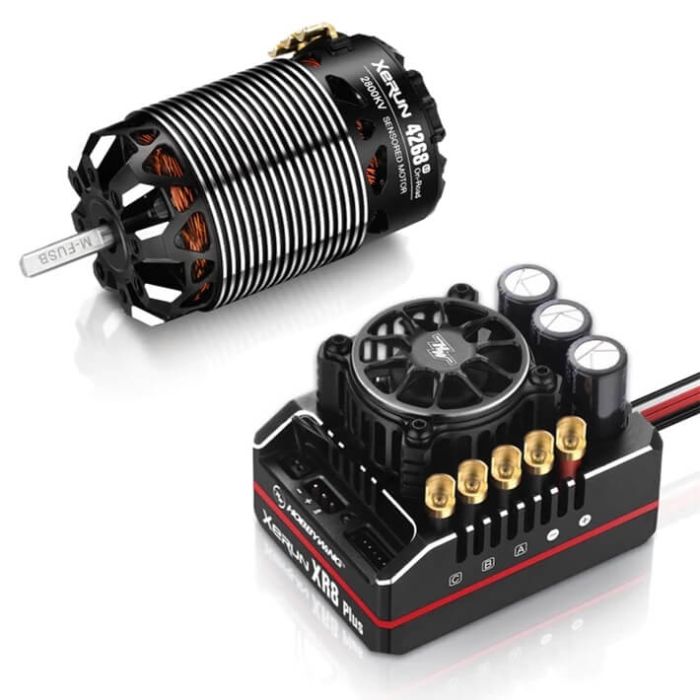

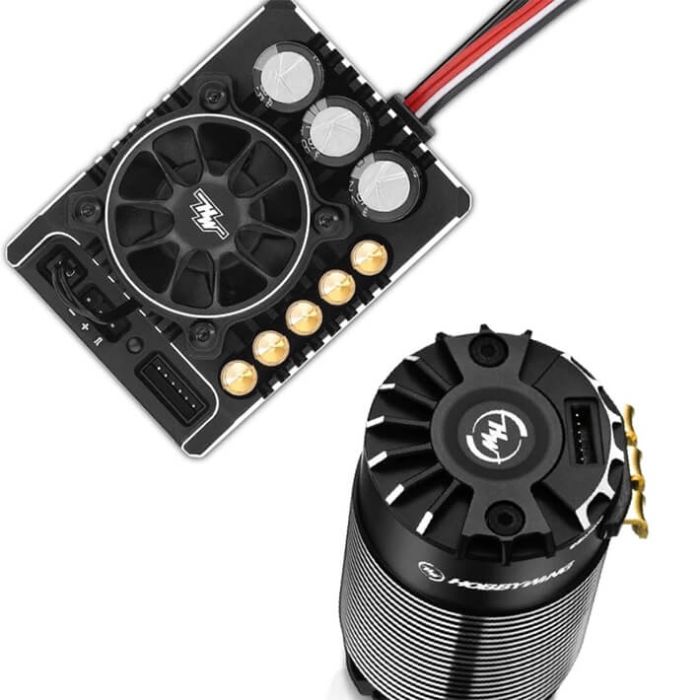

Hobbywing Combo B Xr8 Plus G2s ESC & 4268 G3 On 2800kv Motor
See All:
Motors & ESC's
Description
Born for 1/8th Competition, the Hobbywing XR8 PLUS G2S Combo B delivers extreme power and precision, combining the 200A ESC with the high-output 4268 G3 2800KV brushless motor. This system is ideal for 1/8th GT and Pan Car applications, offering a substantial power upgrade and a smoother throttle response through its "Pure Sensored" mode. The combo enables Turbo Timing technology, which can boost maximum speed by up to 50%. It features an ultra-efficient cooling system, a 6-8.4V adjustable internal BEC, and built-in protection circuits, making it a reliable and formidable power system for top-level on-road racing.
FeaturesFull-Sensored Mode and Turbo Timing Technology (up to 48 degrees) for maximum speed boost when paired.
ESC Cont./Peak Current: 200A/1080A.
Super Internal BEC with a maximum output of 15A, adjustable from 6V to 8.4V.

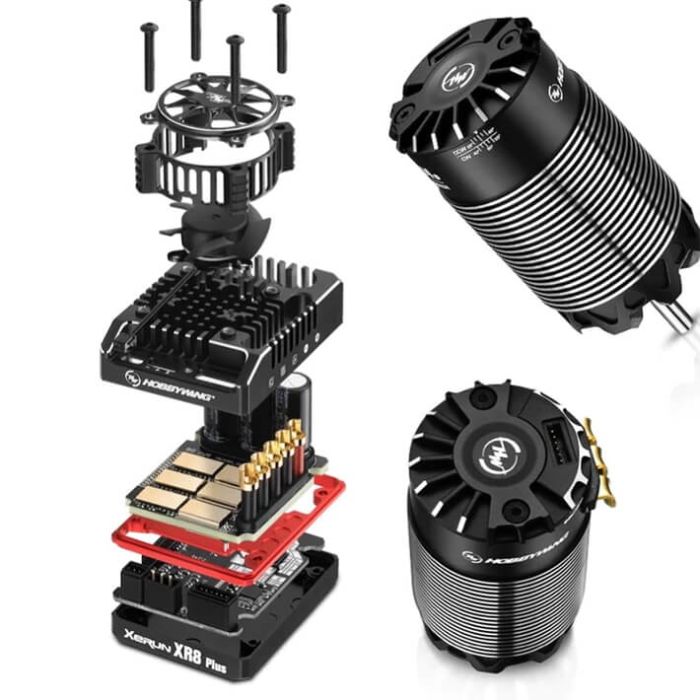

Efficient Heat Dissipation System on ESC with a durable, frameless fan.
Internal Battery-Reverse Polarity Protection Circuit on ESC.
Wireless Programming, upgrading, and real-time data recording via the optional OTA Bluetooth module.
Motor features low RPM (No Current) Torque ripple for smooth, low-speed performance.
Motor utilizes "error-free" Hall sensor technology for a stable sensor signal.
Capacitor Thermal Protection implemented on ESC to prevent overload damage.
SpecificationsScale: 1/8th (On-Road / GT / Pan Car)
Input Voltage: 2-6S LiPo
ESC Cont./Peak Current: 200A/1080A
BEC Output: 6.0V - 8.4V (Adjustable), 6A/15A (Cont./Peak)
Motor KV: 2800KV (4268 G3 On-Road Series)
KV Limit (4S LiPo): 4268 ≤ 3000KV
ESC Size: 56.1mm x 42.1mm x 38.5mm
ESC Weight: 122g (with wires)
Waterproof Rating: No (IP5X Dust-proof only)
Programming: LCD Program Box or OTA Programmer (Sold Separately)
Features
Specifications
More Information
| Part Number | HW38020503 |
|---|---|
| Manufacturer | Hobbywing |
