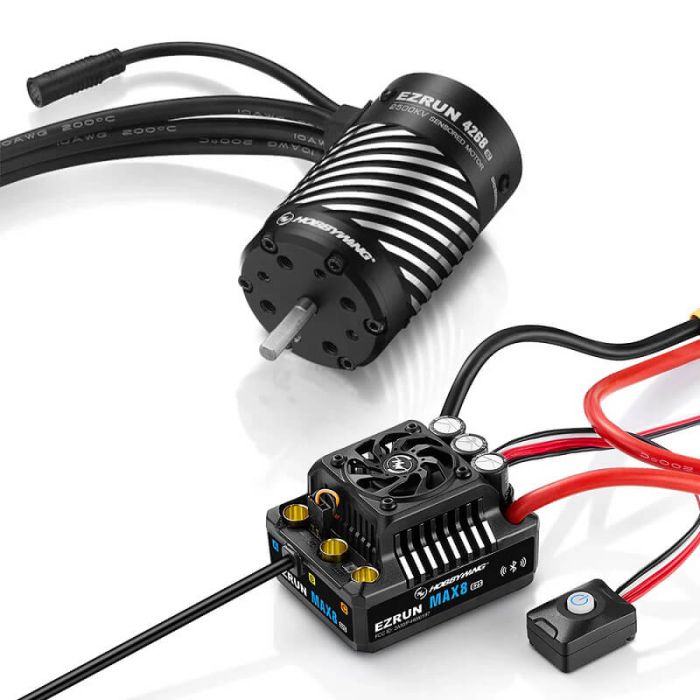

Hobbywing Combo Ezrun Max8 G2s ESC 4268sd-2500Kv G2r Motor
See All:
Motors & ESC's
Description
Specifications
Ezrun MAX8 G2S ESC
Scale Vehicles: 1/8
Bluetooth: Yes
Built-in Data Logging: Yes
Intelligent Fan Start-Stop Function: Yes
Firmware Upgrade: Yes
Motor Limit: 4S Lipo: KV≤3000; 6S Lipo: KV≤2400 4278 size motor
BEC Output: 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)
Switch Mode: Electronic Switch
Capacitor protection: Yes
Waterproof: Yes
Size (L.W.H) mm: 60(L)x48(W)x40.5(H)mm
Weight (g): 194g
Input/Output:
Input:XT90
Output:6.5mm gold plug(female)
EZRUN MAX 4268SD G2R Motor
KV-Value: 2500kv
Lipo Cells: 3-4S
No-Load Current: 5.2A
Outer Diameter/Length: 42mm/68mm
Shaft Diameter/Exposed Shaft Length: 5mm/18.5mm
Bearing Size (mm): Front D16xD5xT5, Rear: D11xD5xT5
Pole: 4
Weight: 360g
Application: 1/8 Buggy, 1/10 Heavy-Duty Monster Truck
What's Included
More Information
| Part Number | HW38010606 |
|---|---|
| Manufacturer | Hobbywing |
