Hobbywing Combo Xr8 Plus G2s ESC & 4268 G3 Off 2200kv Motor
See All:
Motors & ESC's
Description

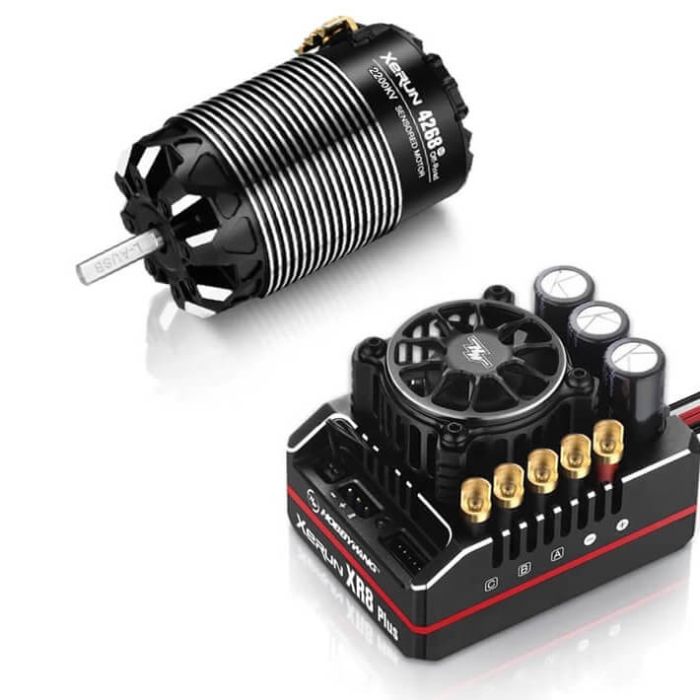

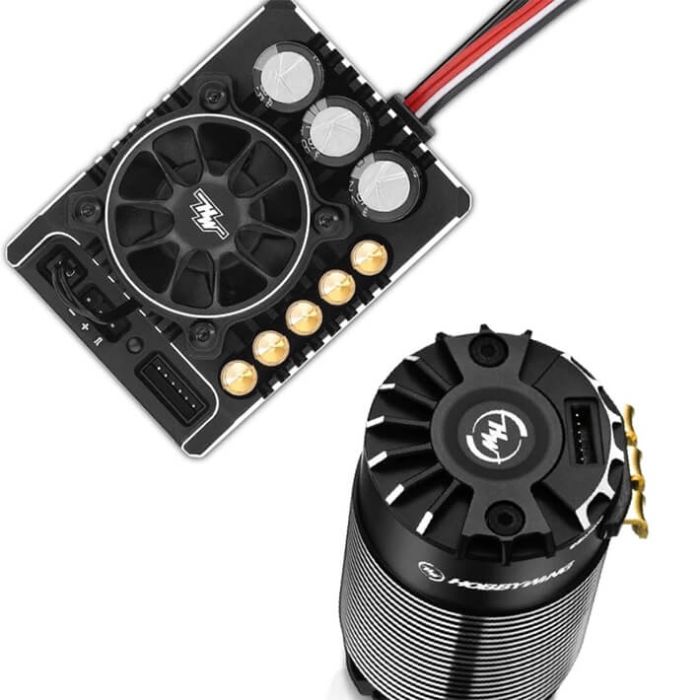

Born for 1/8th Off-Road Competition, the Hobbywing XR8 PLUS G2S Combo pairs the high-performance 200A ESC with the lightweight 4268 G3 2200KV brushless motor. This system is specifically designed for 1/8th Off-Road buggies, offering an excellent balance of raw power and high efficiency. The motor features an optimized design for light weight (285g) and uses an "error-free" Hall sensor system for a stable, pure sensored mode operation. This combo enables Turbo Timing technology, which can boost maximum speed by up to 50%, and includes an advanced cooling system, a high-output 15A internal BEC, and robust IP5X dust-proof protection for demanding off-road conditions.
FeaturesFull-Sensored Mode and Turbo Timing Technology (up to 48 degrees) for maximum speed boost when paired.
Super Internal BEC with a maximum output of 15A, adjustable from 6V to 8.4V.

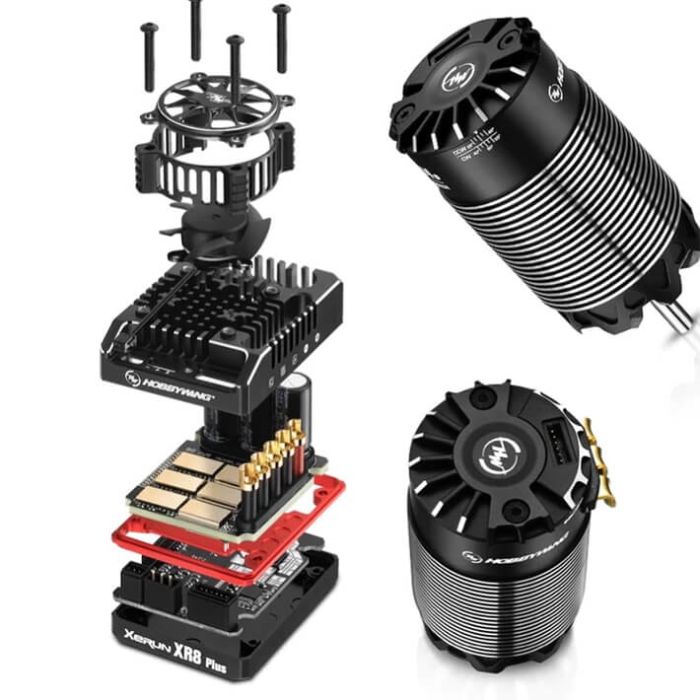

Efficient Heat Dissipation System on ESC with a durable, frameless fan.
Internal Battery-Reverse Polarity Protection Circuit on ESC.
Wireless Programming, upgrading, and real-time data recording via the optional OTA Bluetooth module.
Motor is part of the 4268 Off-Road series, optimized for 1/8th Off-Road Buggy racing.
Motor features low RPM (No Current) Torque ripple for smooth, low-speed performance.
Capacitor Thermal Protection implemented on ESC to prevent overload damage.
SpecificationsScale: 1/8th (Off-Road / Truggy Racing)
Input Voltage: 2-6S LiPo
ESC Cont./Peak Current: 200A/1080A
BEC Output: 6.0V - 8.4V (Adjustable), 6A/15A (Cont./Peak)
Motor KV: 2200KV (4268 G3 Off-Road Series)
KV Limit (4S LiPo): 4268 ≤ 3000KV
ESC Size: 56.1mm x 42.1mm x 38.5mm
ESC Weight: 122g (with wires)
Motor Weight: 285g (approx.)
Waterproof Rating: No (IP5X Dust-proof only)
Programming: LCD Program Box or OTA Programmer (Sold Separately)
Features
Specifications
More Information
| Part Number | HW38020501 |
|---|---|
| Manufacturer | Hobbywing |
