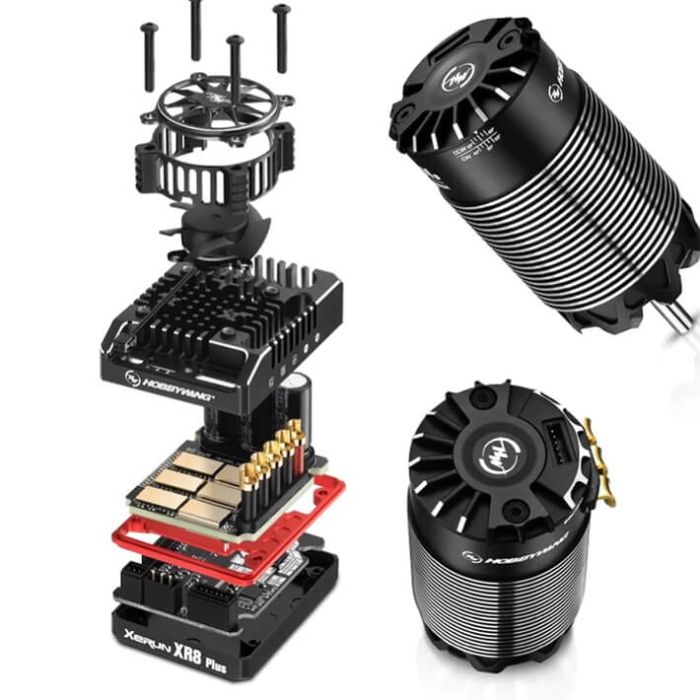

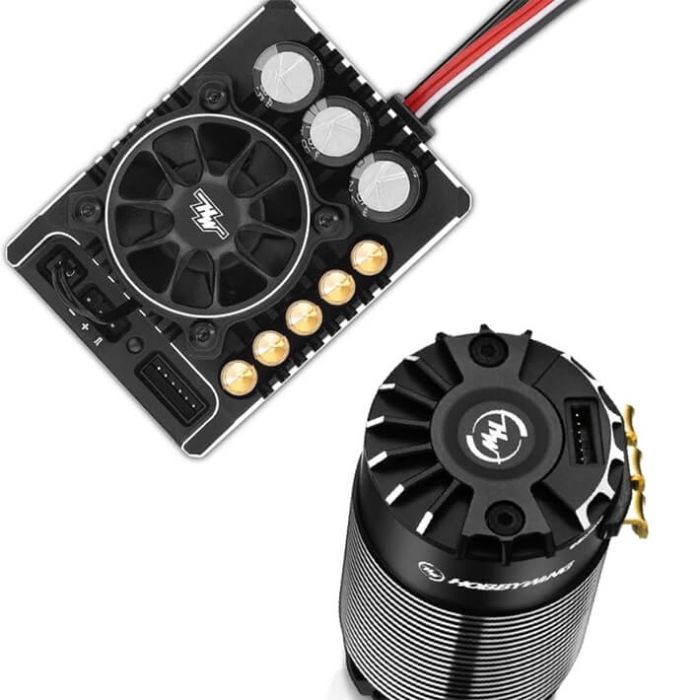

Hobbywing Combo Xr8 Plus G2s ESC & 4274 G3 2250kv Motor
See All:
Motors & ESC's
Description
Born for 1/8th Competition, the Hobbywing XR8 PLUS G2S Combo delivers extreme power and precision, combining the 200A ESC with the high-output 4274 G3 2250KV brushless motor. This system is ideal for 1/8th On-Road, Off-Road, and Truggy racing. The ESC and motor work together to enable "Pure Sensored" mode and powerful Turbo Timing technology, boosting maximum speed by up to 50%. The combo features an ultra-efficient cooling system, a 6-8.4V adjustable internal BEC, and built-in protection circuits, making it a reliable and formidable power system for top-level racing.
FeaturesFull-Sensored Mode and Turbo Timing Technology (up to 48 degrees) for maximum speed boost when paired.
ESC Cont./Peak Current: 200A/1080A.
Efficient Heat Dissipation System on ESC with a durable, frameless fan.
Super Internal BEC with a maximum output of 15A, adjustable from 6V to 8.4V.
Internal Battery-Reverse Polarity Protection Circuit on ESC.
Wireless Programming, upgrading, and real-time data recording via the optional OTA Bluetooth module.
Capacitor Thermal Protection implemented on ESC to prevent overload damage.
Motor features a low RPM (No Current) Torque ripple for smooth performance at low speeds.
Motor has a high-quality CNC Stator case made from a single piece of 7075 aluminum.
SpecificationsScale: 1/8th
Input Voltage: 2-6S LiPo
ESC Waterproof Rating: No (IP5X Dust-proof only)
Motor KV: 2250KV
Motor Diameter/Length: 42/74mm
Motor Shaft Diameter: 5mm
ESC Size: 56.1mm x 42.1mm x 38.5mm
ESC Weight: 122g (with wires)
KV Limit (6S LiPo): 4274 ≤ 2400KV
Programming: LCD Program Box or OTA Programmer (Sold Separately)
Features
Specifications
More Information
| Part Number | HW38020504 |
|---|---|
| Manufacturer | Hobbywing |
