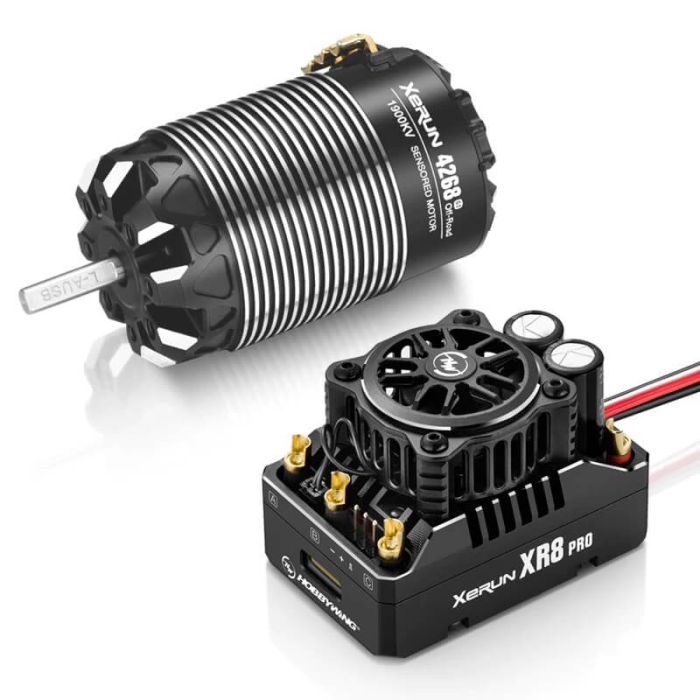

Hobbywing Combo XR8 Pro G3 ESC & 4268 G3 1900Kv Motor
See All:
Motors & ESC's
Description
Born for 1/8th Off-Road Competition, the Hobbywing XR8 PLUS G3 Combo pairs the high-performance 200A ESC with the lightweight 4268 G3 1900KV brushless motor. This system is specifically designed for 1/8th Off-Road buggies, offering high torque and efficiency, which is crucial for maximizing runtime and performance on technical tracks. The motor features an optimized design for light weight (315g) and uses an "error-free" Hall sensor system for a stable, pure sensored mode operation. This combo enables Turbo Timing technology, which can boost maximum speed by up to 50%, and includes an advanced cooling system, a high-output 15A internal BEC, and robust IP5X dust-proof protection for challenging off-road conditions.
FeaturesFull-Sensored Mode and Turbo Timing Technology (up to 48 degrees) for maximum speed boost when paired.
Super Internal BEC with a maximum output of 15A, adjustable from 6V to 8.4V.
Efficient Heat Dissipation System on ESC with a durable, frameless fan.
Internal Battery-Reverse Polarity Protection Circuit on ESC.
Wireless Programming, upgrading, and real-time data recording via the optional OTA Bluetooth module.
Motor is part of the 4268 Off-Road series, optimized for 1/8th Off-Road Buggy racing.
Motor features low RPM (No Current) Torque ripple for smooth, low-speed performance.
Capacitor Thermal Protection implemented on ESC to prevent overload damage.
SpecificationsInput Voltage: 2-6S LiPo
ESC Cont./Peak Current: 200A/1080A
BEC Output: 6.0V - 8.4V (Adjustable), 6A/15A (Cont./Peak)
Motor KV: 1900KV (4268 G3 Off-Road Series)
KV Limit (4S LiPo): 4268 ≤ 3000KV
ESC Size: 56.1mm x 42.1mm x 38.5mm
ESC Weight: 122g (with wires)
Motor Weight: 315g (approx.)
Waterproof Rating: No (IP5X Dust-proof only)
Programming: LCD Program Box or OTA Programmer (Sold Separately)
Features
Specifications
More Information
| Part Number | HW38020432 |
|---|---|
| Manufacturer | Hobbywing |
