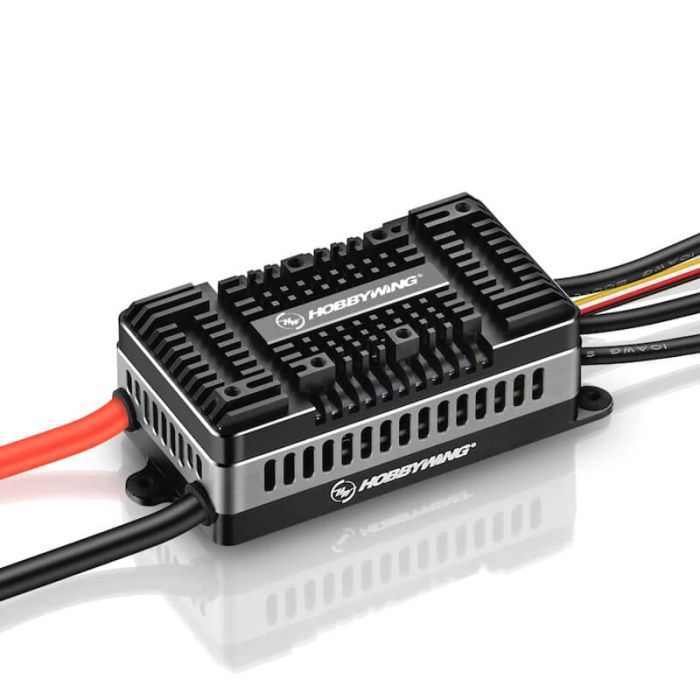

Hobbywing Platinum 260a HV SBEC V5 ESC

The Platinum V5 260A HV V5 provides constant speed control, ensuring an excellent flying experience without BEC. The innovative housing design, featuring additional windows on the sides and internal structure, enables highly effective heat dissipation. This allows the generated heat to be directly transported from the circuit board to the outside through the shortest path. This is particularly necessary because the integrated 32-bit processor enhances the RPM algorithm's precision, thereby further strengthening the overall performance of the Platinum ESC (Electronic Speed Controller). The finely adjustable speed sensitivity ultimately allows every pilot to find a setting that suits them perfectly.

The ESC also incorporates Efficiency Optimization Technology with Synchronous Rectification (DEO: "Driving Efficiency Optimization" - Active Freewheeling), which brings several advantages at once:

Faster throttle response and flight stability.

Longer battery life.

Lower temperature, ensuring reliability.

Features

Supports multiple data protocols e.g. Mikado VBar System, Futaba S.BUS2, MSH Brain, and iKON

Includes data recording accessible via the OTA module on the smartphone

Multiple protection features

16 adjustable parameters, including 4 flight modes :-
- Fixed Wing
- Helicopter - External Governor
- Helicopter - Express Governor
- Helicopter - Store Governor

Specifications

Current cont./peak: 260A/400A
Cells: 6-14S LiPo
BEC Voltage: 5-12V
BEC Continuous Current: 10A
BEC Instantaneous Current: 30A
Programming: LCD Programming Box, OTA Bluetooth Programmer, Separate Programming Port
Firmware upgrade: Yes
Telemetry: Mikado VBar, Futaba S.Bus2, MSH iKon, Brain and etc.
Dimensions: 89x50x34mm
Weight (incl. cable): 297g
Application: 700-800 Electric Helicopter (main rotor length: 690-880mm)
