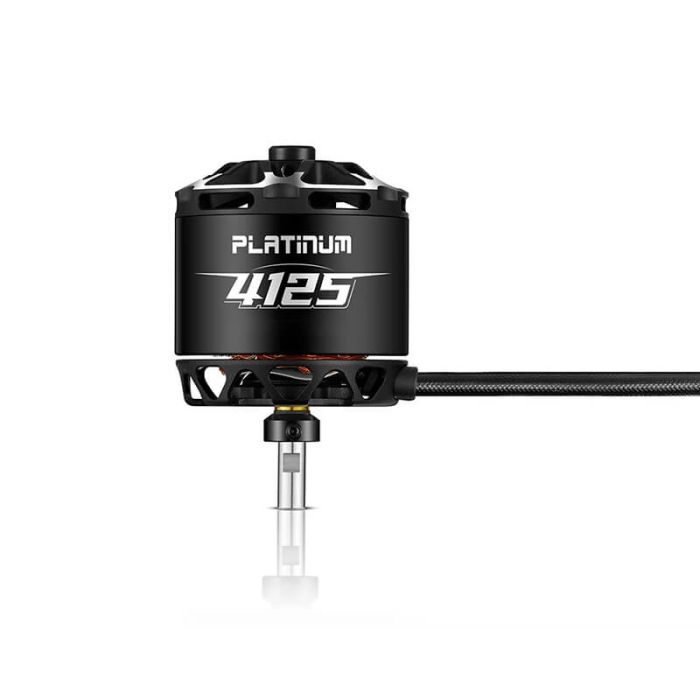

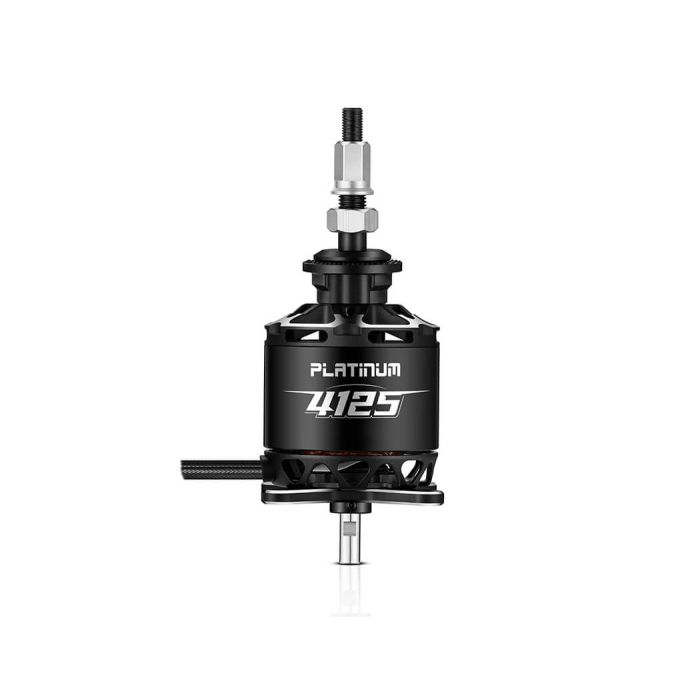

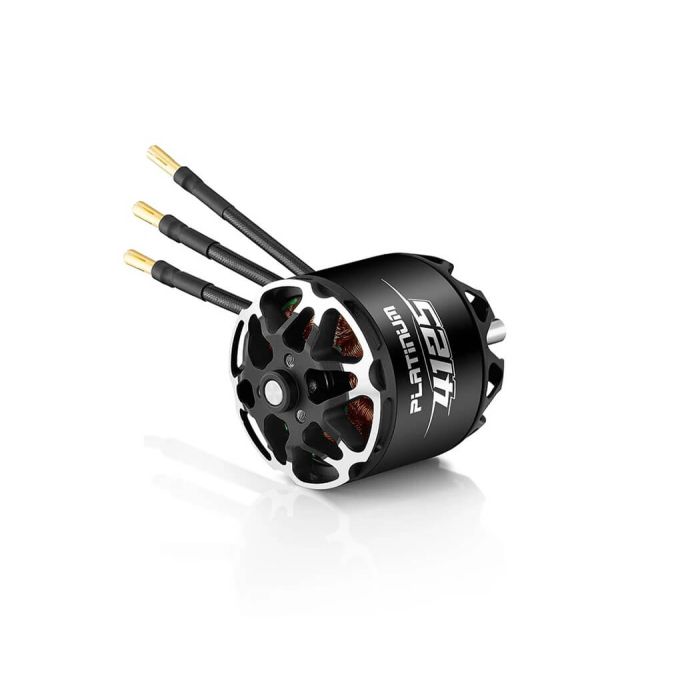

Hobbywing Platinum 4125sl 250Kv Fixed Wing Motor
See All:
Motors & ESC's
Description
Specifications
Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coat
Enamelled Wire: 200?
Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 250
Battery (LiPo): LiPo-12S
No-load Current: 1.5A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 60.4A/49s
Max Power: 2681W/49s
Max Thrust: 8.25kg
Resistance: 47mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 363g
Recommended ESC: PLATINUM 130A V4, PLATINUM 180A V5
Recommended Propeller:12S:15X6E,15X8E, 16X6E,16X8E
More Information
| Part Number | HW30416050 |
|---|---|
| Manufacturer | Hobbywing |
