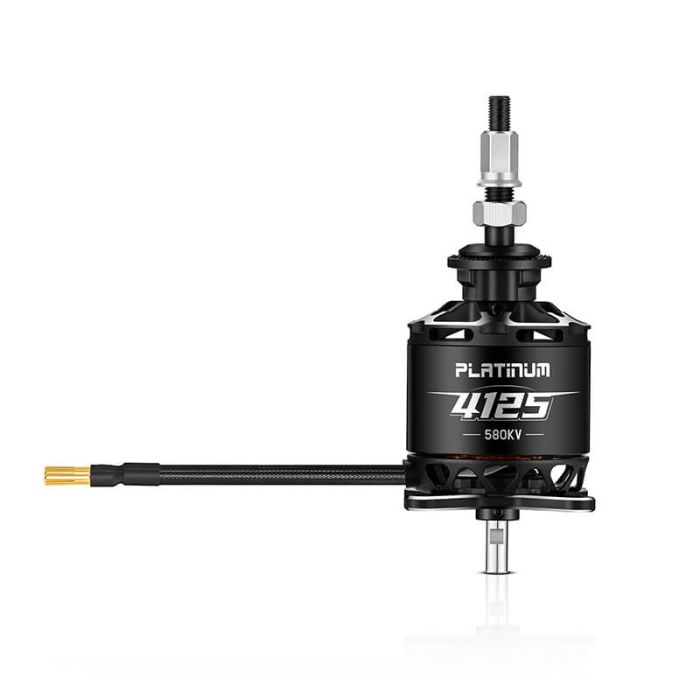

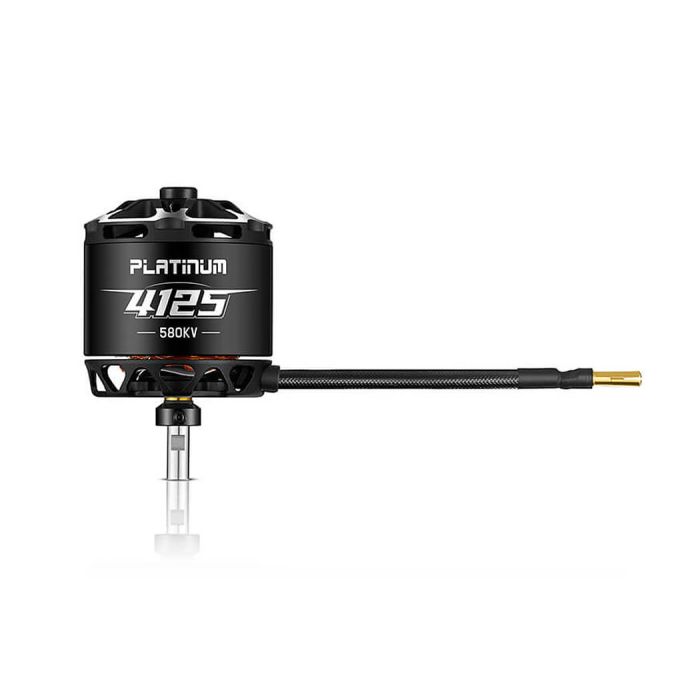

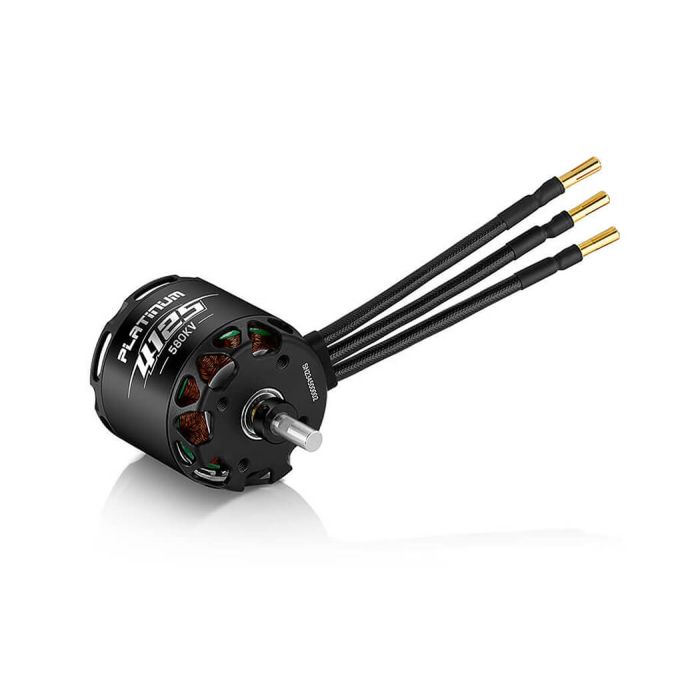

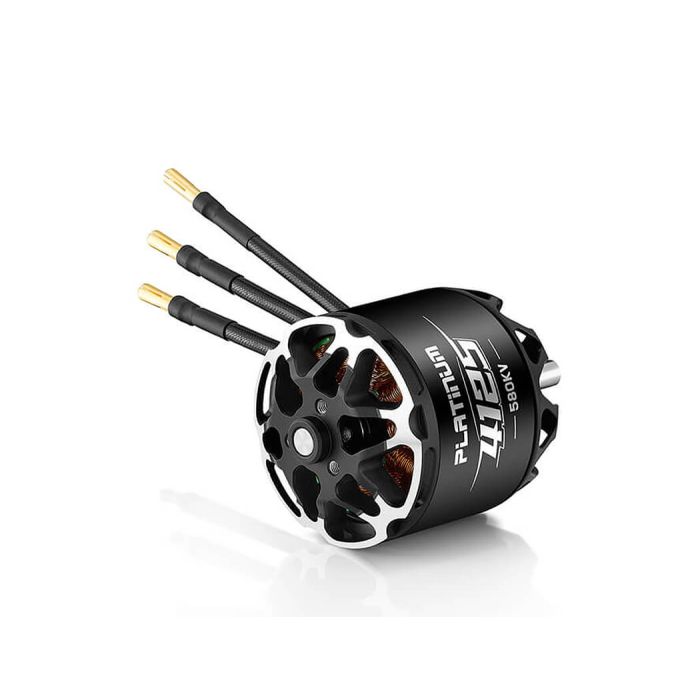

Hobbywing Platinum 4125sl 580Kv Fixed Wing Motor
See All:
Motors & ESC's
Description
Specifications
Motor Size: Φ49.5 *77.3mm
Stator Size: Φ40.6*25mm
Stator Process: High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire: 200?

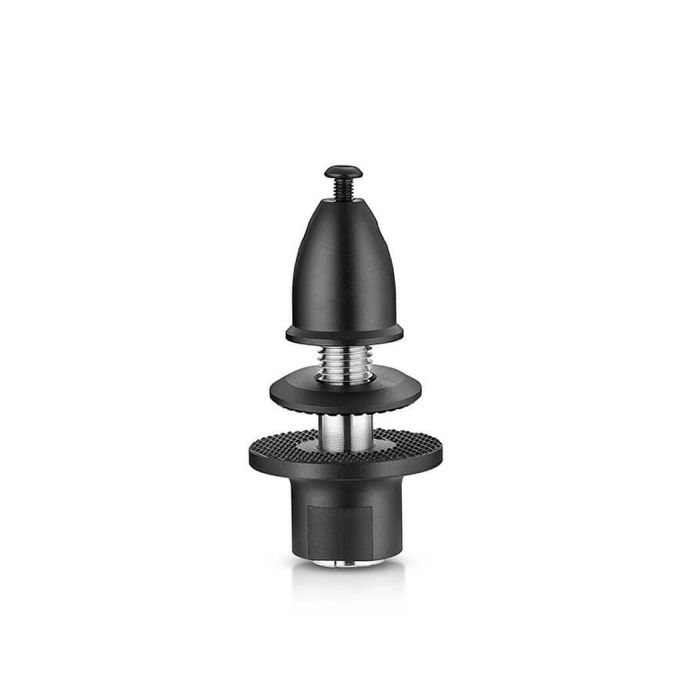

Props Mounting Dimensions: Φ15mm-3*M3
Motor Mounting Dimensions: Φ30mm-4*M4
Slot & Pole: 12N14P
Dynamic Balance: ≤10mg
Bearing: 696ZZ
Motor Axle Diameter: Φ6mm
Isolation Test: 500V AC high voltage resistance test
KV: 580
Battery (LiPo): LiPo-6S
No-load Current: 3.9A/22.2V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?: 119.7A/1min17s
Max Power: 2289W/1min17s
Max Thrust: 7.35kg
Resistance: 9.5mΩ
Wire Size: Enamelled Wire Output
Wire Length: 90mm
Weight (With Wire): 370g
Recommended ESC: PLATINUM 120A V4, PLATINUM 150A V5
Recommended Propeller: 5S:15x8E,16x8E,, 6S:14x6E,14x7E,15x6E
More Information
| Part Number | HW30416052 |
|---|---|
| Manufacturer | Hobbywing |
