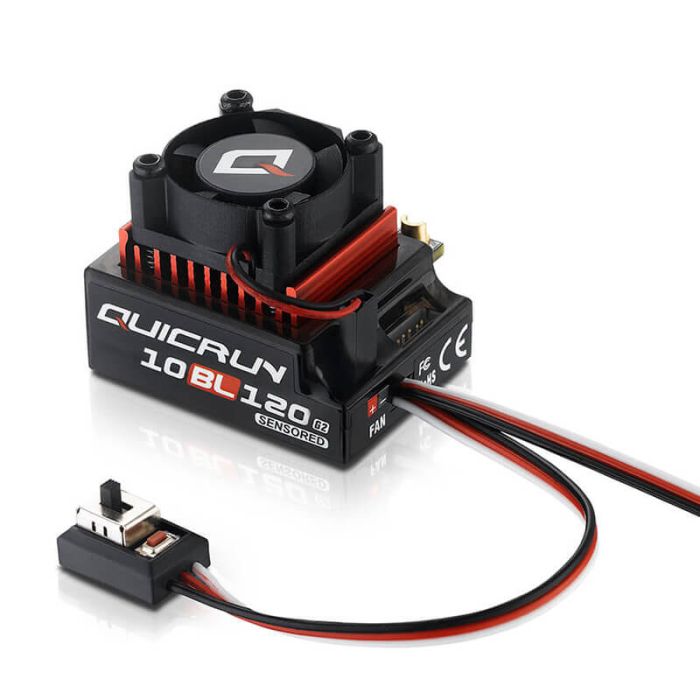

Hobbywing Quicrun 10bl120 G2 Brushless ESC Sensored/Sl

The QuicRun 10BL120 sensored ESC was specially designed for beginners and intermediate modelers. This is the new G2 upgraded version of the speed controller and brings a wealth of new features and upgrades. It is designed for practice and daily training of 1/10th, 1/12th scale touring cars, buggies, F1 and draft cars as well as 1/10th scale rock crawlers.

With the Dual (Sensored/Sensorless) Drive Mode, it's compatible with different motors and brings racers two different control feel and with it's compact design, it's applicable to various chassis.

The SET button on the ESC allows the user to easily program or factory reset the ESC with ease.

Features

• High Reliability & Durability
• Upgraded BEC output voltage and current
• Adjustable boost and turbo timing
• Multiple protection functions: battery low voltage protection, esc overheat protection, throttle signal loss protection, overload protection
• Supports firmware upgrade of ESC (Multi-function LCD program box need to be purchased)

Specifications

Scale: 1/10 & 1/12
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless/Sensored
Waterproof: No
Motor Limit: 2S >4.5T 3650 (540)
Motor Limit: 3S >10.5T 3650 (540)
Cont./Peak Current: 120A/760A
Input Voltage: 2S-3S
BEC Output: Switch Mode: 6.0v/7.4V @4A
Input Wires: Black 12AWG 200mm*1 / Red 12AWG 200mm*1
Output Wires: Blue 12AWG 200mm*1 / Yellow 12AWG 200mm*1 / Orange 12AWG 200mm*1
Input Connectors: No
Output Connectors: No
Fan Size: 25 x 25 x 10mm
Voltage Range: 5-7.4V
LCD Program Box: LED/LCD G2/PRO Supported
OTA Module: No
Size: 44 x 36.8 x 32.3mm
Weight: 101.5g (inc Wires)
