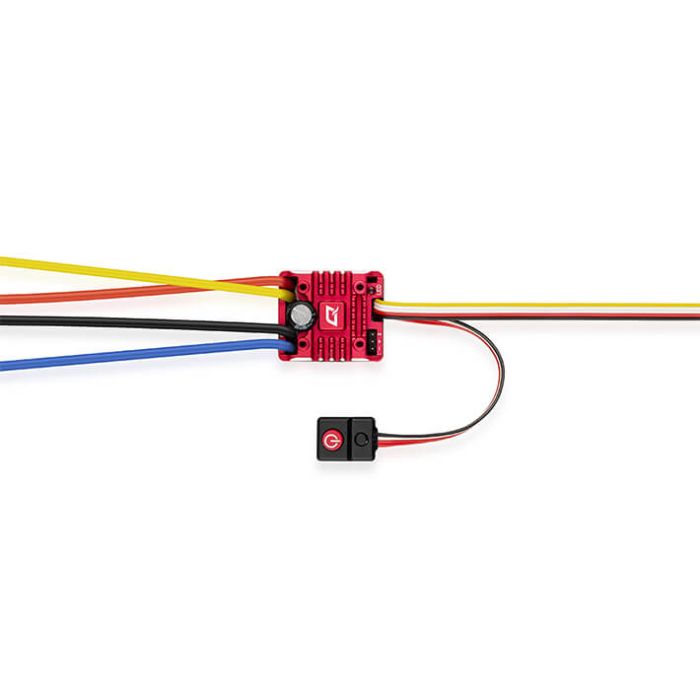

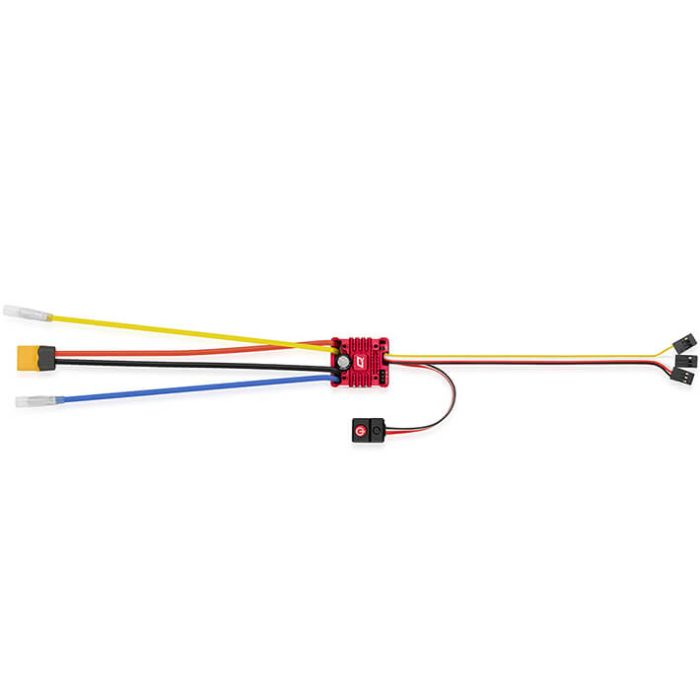

Hobbywing Quicrun Combo 1080 G2 ESC + 555 13t Brushed Motor

See All: Motors & ESC's

In Stock - Dispatches in 1-2 Days
Part Number
HW38020352
£65.99
Apple Pay
visa mastercard american-express paypal klarna apple-pay google-pay
Description

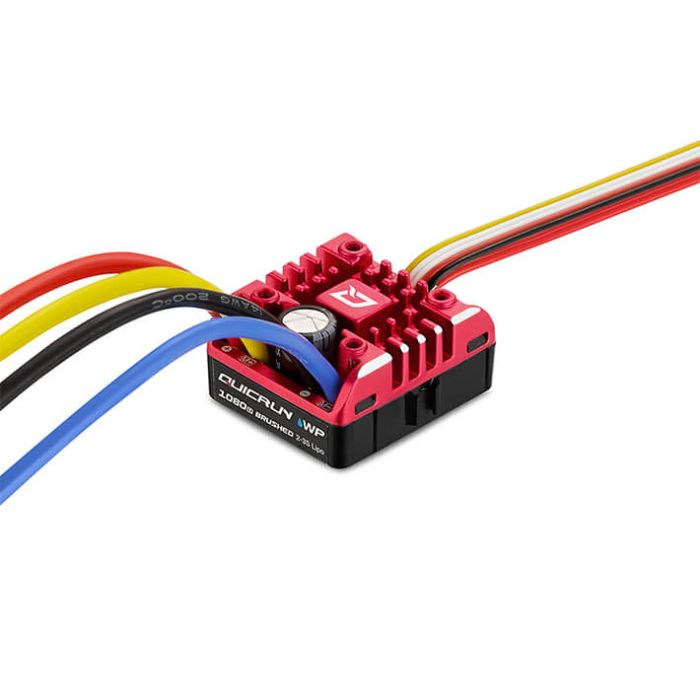

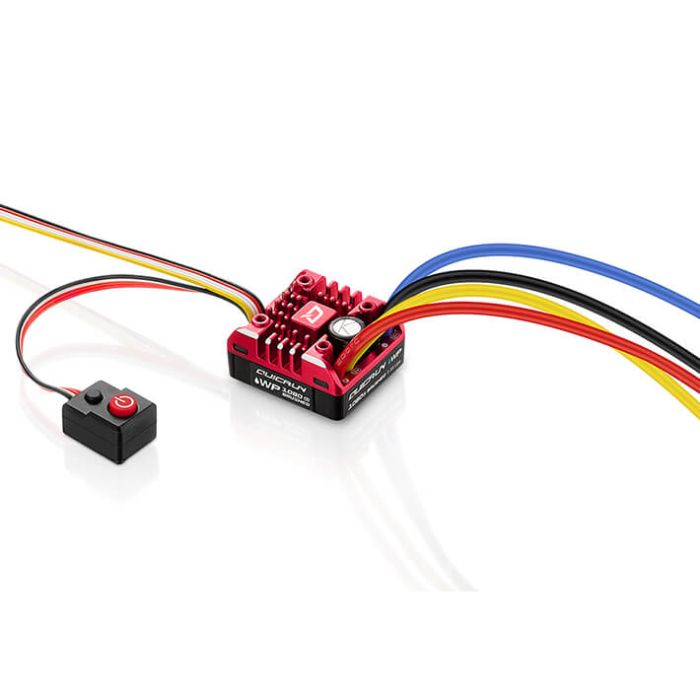

ESC Features

  • 4 Innovative real car running modes - an RC first!
  • Fully IP67 waterproof design for all conditions. (Note: please clean and dry it after use for avoiding rusty connectors)
  • Highly reliable electronic switch design prevents mechanical switch failure due to dirt, water, dust and etc.
  • Tuneable drag brake and drag brake rate for different vehicles, tracks and control feel.
  • Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
  • Real time adjustable drag brake force using an AUX channel of a transmitter and the ability to switch the drag brake force anytime and anywhere on demand.
  • Multiple protections: low-voltage cut-off protection, thermal protection and throttle signal loss protection.
  • Separate programming port to easily connect the LED program card to the ESC.
  • Single-button ESC programming and factory reset.
  • ESC programming via Hobbywing LED program card.

    • ESC Specifications



    Cont./Peak Current: 80A/400A
    Input Voltage: 2-3S LiPo/5-9S Cell NiMH
    BEC Output: 6V / 7.4V / 8.4V @ 4A (Switch-mode)
    Wires & Connectors: Black-14AWG-200mm / Red-14AWG-200mm
    Programming device: LED program box
    Size: 37.2 x 31.9 x 18.4mm
    Weight (w/ wires): 70.2g

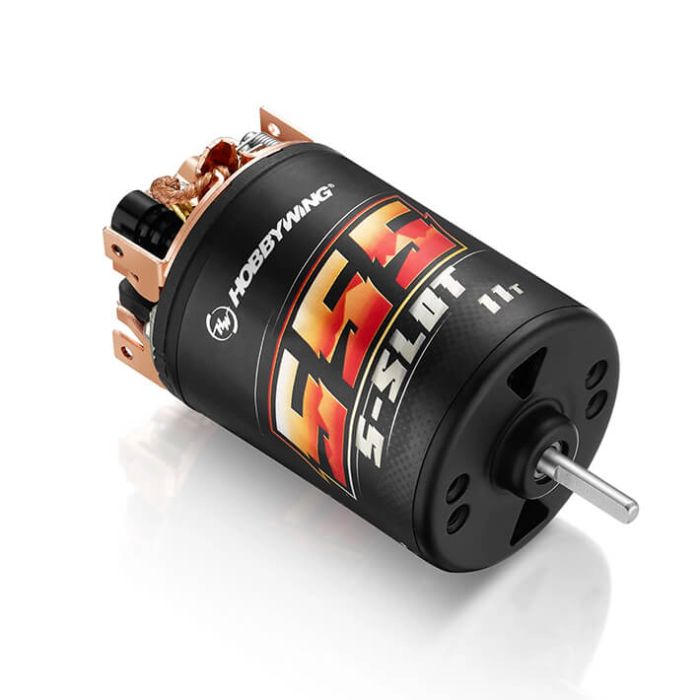

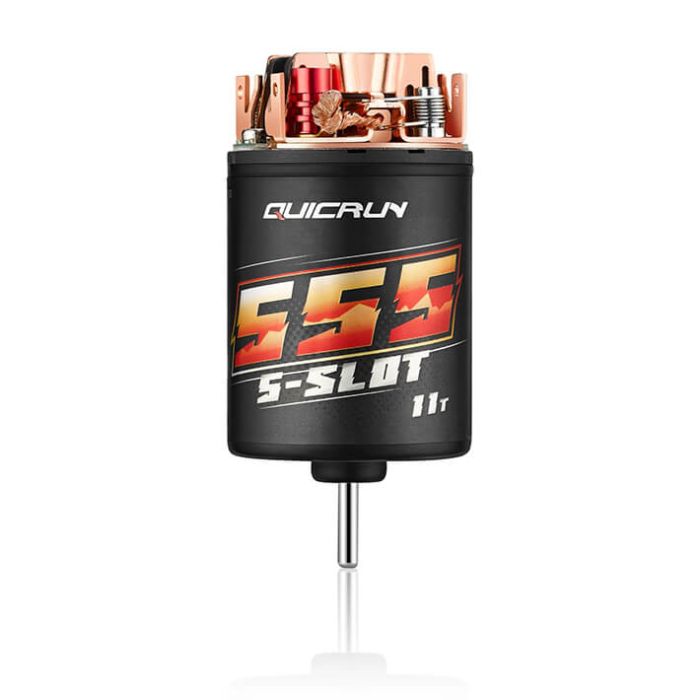

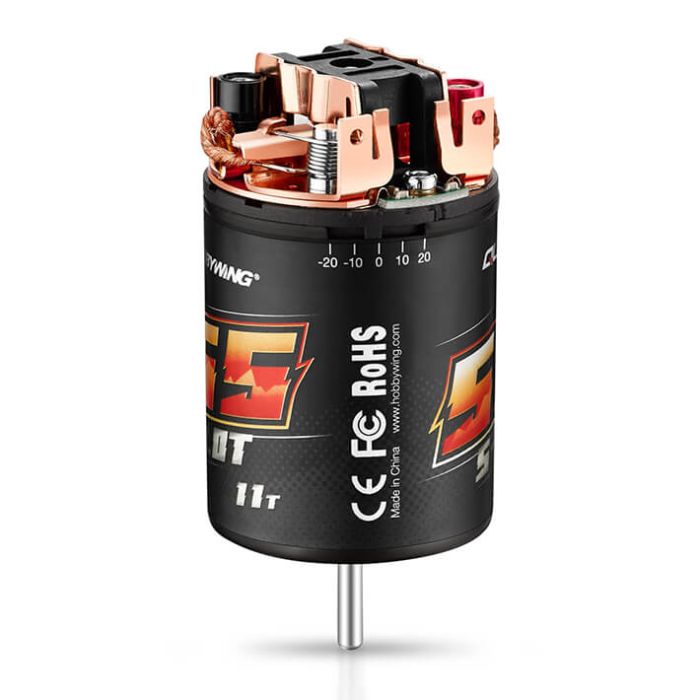

    Motor Features

  • Specialized Carbon Brushed for extended life
  • Zero-Cogging Torque Design
  • Excellent efficiency
  • Outstanding Response and Control
  • Adjustable mechanical timing of the motor
  • Modular design for easy service and cleaning

    • Motor Specifications



    Turns: 13T
    (RPM@7.4V): 14000
    Input Voltage: 12.6V
    Diameter/ Length(mm): φ=36mm(1.42in) L=58.5mm(2.30in)
    Shaft Diameter/ Length (mm): φ=3.175mm(0.125in) L=16.5mm(0.65in)
    Weight: 193g
    More Information
    Part Number HW38020352
    Manufacturer Hobbywing
