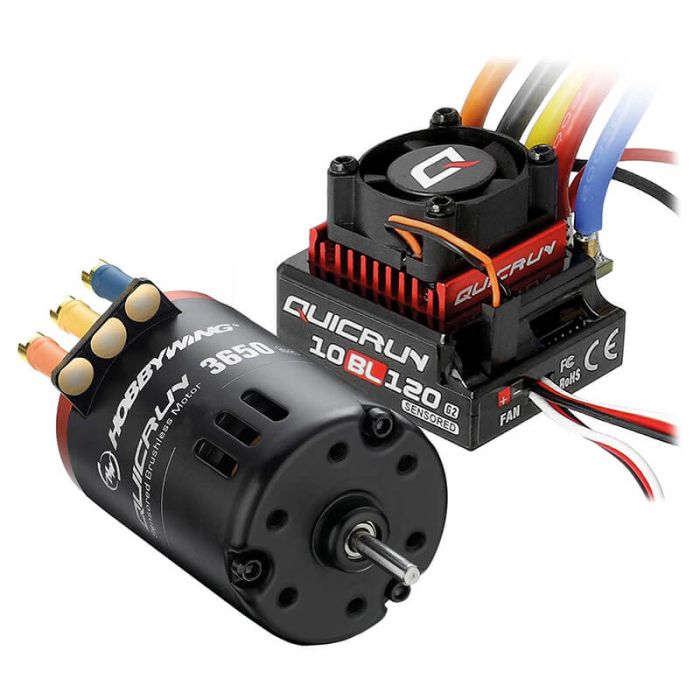

Hobbywing Quicrun Combo ESC G2 10bl120/3650sd 13.5t Motor

The QuicRun series from Hobbywing offers a cost-effective alternative for all drivers who simply want to achieve more with their setups - regardless of whether they have brushless motors or not.

Together, the two components form a cost-effective electronics team for beginners and advanced users alike.

Features (ESC)

A wide range of setting options (including turbo delay, turbo timing and boost timing)

Improved BEC output with switch mode instead of linear mode

Freely selectable motor rotation direction (CW or CCW)

Various protective functions:

Specifications (ESC)

Current (continuous/short): 120A / 760A
Input Voltage: 2-3S LiPo
BEC: 6V / 7.4V at 4A (switch mode)
Motor Limit: 2S: >= 4.5T, 3650 motor / 3S: > = 10.5T, 3650 motor
Fan: Yes, operated via the BEC
Programming: - SET button / - LED programming card / - LCD programming box (G2)
Dimensions: 44 x 36.8 x 32.3mm
Weight: 101.5g
Suitable Vehicles: 1/10 touring car, buggy, drift

Specifications Motor

Type: Brushless / Sensor
Poles: 2
Speed: 2850kV
Turns: 13.5T
Number of LiPo Cells: 2-3S
Current Idle: 2.4A
Outer Diameter: 36mm
Length: 52.8mm
Shaft Diameter: 3.17mm
Weight: 186g
Timing: Fixed

Technical Data

Cells: 2-3
ESC: Quicrun 10BL120 G2
Duration: 120 A
Engine: Quicrun 3650SD G2 mit 2850kv
Scale: 1:10
BEC: 6-7,4V/4A
Short: 760 A
Size (mm): 44/36,8/32,3 mm
Engine-type: Brushless Sensored
Set Weight: 287,5 g
