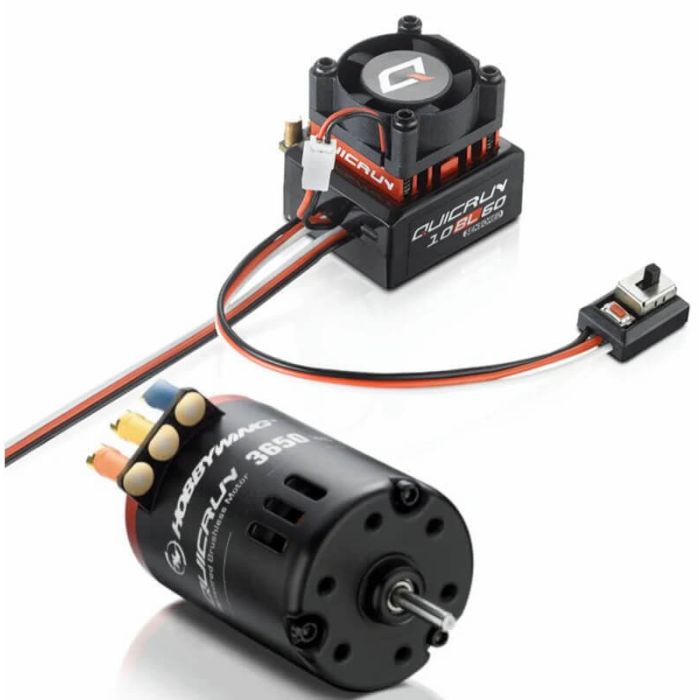

Hobbywing Quicrun Combo ESC G2 10Bl60/3650sd 10.5t G2 Motor
See All:
Motors & ESC's
Description
QUICRUN 10BL60 Sensored G2 ESC Features
Outstanding quality, amazing price.
- Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.
Powerful built-in BEC.
- Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V.
- It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
Support Boost/Turbo timing technology.
- With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
High reliability and durability.
- Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
Support multiple programming methods.
- The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
Support Motor Rotation Adjustment.
- This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
Specifications
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: NO
Relevant Parameters:
Cont./Peak Current: 60A/200A
Input Voltage: 2S Lipo
BEC BEC Output: Switch Mode 6V/7.4V @4A
Wires & Connectors:
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Shared with Fan port
Data Recording:
Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported
Firmware Upgrade: Not Supported
Size & Weight:
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires & connectors)
Applications:
Motors: Sensored/Sensorless Brushless motor
Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2 QuicRun-3650SD-10.5T G2 Motor FeaturesLinear & Smooth Control.
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
Plug-and-Play.
- Customised 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
Re-buildable Design.
- The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
Compatible (with QuicRun-10BL60-Sensored ESC).
- When pairing the QuicRun3650 G2 motor with the Hobbywing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
Specification
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters:
KV Rating: 3600
LiPo Cells: 2-3S
No-load Current(A): 2.8
Size & Weight:
O.D.(mm): 36
Length (mm): 52.8
Shaft Diameter (mm): 3.17
Weight (g): 186
Front Bearing: D9.525*D3.175*t3.967
Rear Bearing: D9.525*D3.175*t3.967
- Crafted for entry-level and intermediate builders, this ESC stands out with its exceptional quality and user-friendly design. It eliminates the complex setup, allowing users to jump right into action without the need for complicated tuning or troubleshooting.
- Compared to the G1 ESC, the G2 ESC features a significant upgrade in its BEC output. The continuous output current has increased from 2A to 4A. A peak current of up to 7A Switchable output voltages of 6V/7.4V.
- It effortlessly powers high-torque and high-voltage servos, giving users a smooth and responsive control experience.
- With support for Boost/Turbo timing adjustments of up to 24 degrees, this ESC unleashes maximum motor power, delivering an instant boost in speed when needed.
- Continuous current 60A, Peak Current 200A. A robust hardware foundation, combined with advanced software, equips this ESC with strong current resistance and an array of protective features. These safeguards significantly enhance its reliability and durability.
- The ESC supports three programming options: a multi-function LCD programming box, an LED programming box, and a SET button. This flexibility allows users to choose their preferred method for adjusting parameters with ease.
- This ESC is compatible with a wide range of vehicle frames, ensuring versatility across different setups.
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: NO
Relevant Parameters:
Cont./Peak Current: 60A/200A
Input Voltage: 2S Lipo
BEC BEC Output: Switch Mode 6V/7.4V @4A
Wires & Connectors:
Input Wires: Black--14AWG-175mm*1 Red--14AWG-175mm*1
Output Wires: Blue-14AWG-175mm*1, Yellow-14AWG-175mm*1, Orange-14AWG-175mm*1
Input Connectors: No
Output Connectors: No
ESC Programing via:
SET Button on ESC: Supported
LED Program Box: Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Shared with Fan port
Data Recording:
Extreme value: Not Supported
Real-time Data: Not Supported
Historical data (Graph): Not Supported
Firmware Upgrade: Not Supported
Size & Weight:
Size: 35.0*31*30.8mm
Weight: 66.5g (Included wires & connectors)
Applications:
Motors: Sensored/Sensorless Brushless motor
Vehicles: 1/10th Touring, Buggy, Drift, 1/12th and 1/14th Vehicles
KV Rating/T Count: QUICRUN 3650 SD G2 QuicRun-3650SD-10.5T G2 Motor Features
- The built-in Hall sensor non-adjustable end bell combined with a high precision and balanced rotor guarantees the user a smooth and linear power on demand.
- Customised 3.5mm low impedance bullet connectors soldered to the motor wires guarantee "plug-and-play" and stable connections between the ESC and motor.
- The end bell is easy to be removed for maintenance purposes and for the replacement of common wearing parts such as rotor and sensor module (Ex bearings).
- When pairing the QuicRun3650 G2 motor with the Hobbywing QuicRun-10BL60-Sensored ESC, the excellent match between ESC and motor will give you a very smooth and linear power band.
Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
Relevant Parameters:
KV Rating: 3600
LiPo Cells: 2-3S
No-load Current(A): 2.8
Size & Weight:
O.D.(mm): 36
Length (mm): 52.8
Shaft Diameter (mm): 3.17
Weight (g): 186
Front Bearing: D9.525*D3.175*t3.967
Rear Bearing: D9.525*D3.175*t3.967
More Information
| Part Number | HW30803200 |
|---|---|
| Manufacturer | Hobbywing |
