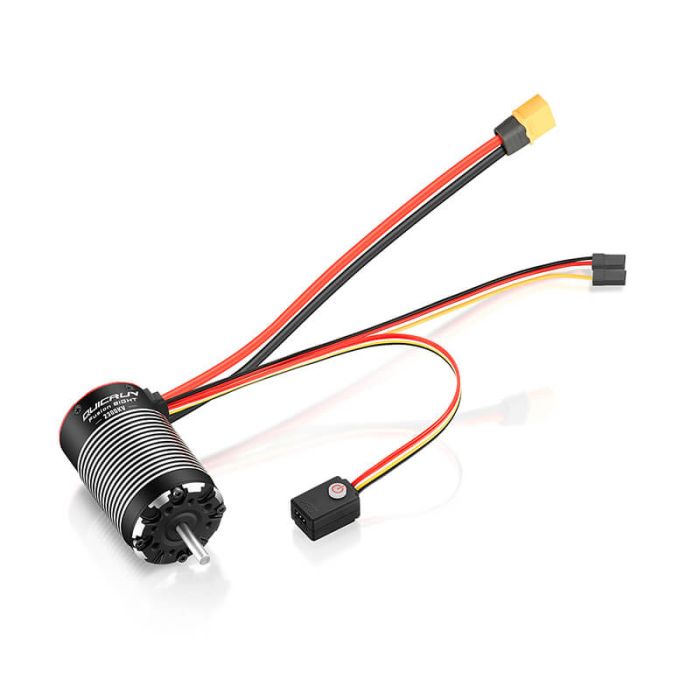

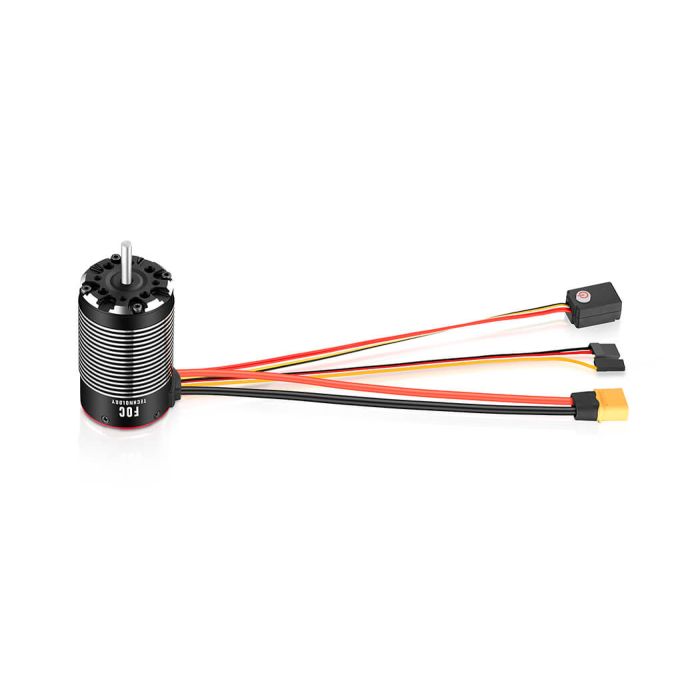

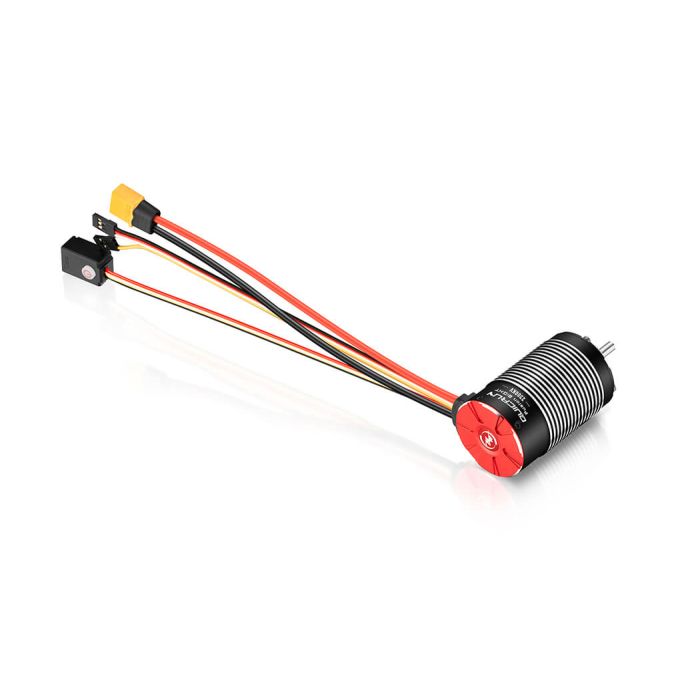

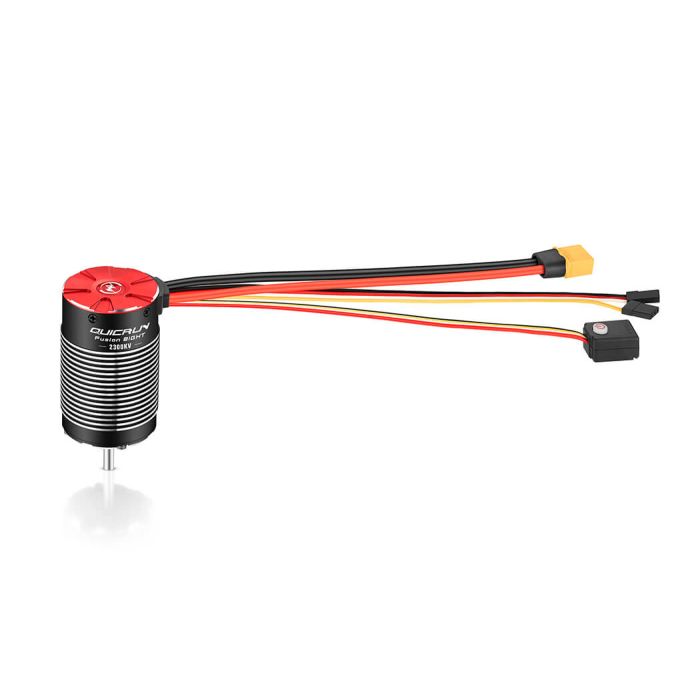

Hobbywing Quicrun Fusion 8ight 2300Kv For 1/8th Crawler
See All:
Motors & ESC's
Description
Specifications
Scale: 1/8th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensored
Waterproof: Waterproof
Cont./Peak Current: 80A/240A
Input Voltage: 2-4S LiPo,6-12 Cells NiMH
BEC Output: 6V/7.4V/8.4V adjustable,continuous current 6A (Switch mode)
KV: 2300KV
Motor Poles: 4
Input Wires: Black-13AWG-250mm*1 Red13AWG-250mm*1
Input Connectors: XT60
ESC Programing via SET Button on ESC: Not Supported
LED Program Box: Supported
LCD G2 Program Box/LCD PRO: Supported
OTA Programmer: Not Supported
Program Port: Independent programming port(switch position)
Firmware Upgrade: Not Supported
Diameter / Length of Motor: 42mm/69mm
Shaft Diameter / Exposed Shaft Length: 5mm/18.5mm
Weight: 338(including wires&connectors)
Vehicles: 1/8th Rock Crawler
More Information
| Part Number | HW30120404 |
|---|---|
| Manufacturer | Hobbywing |
