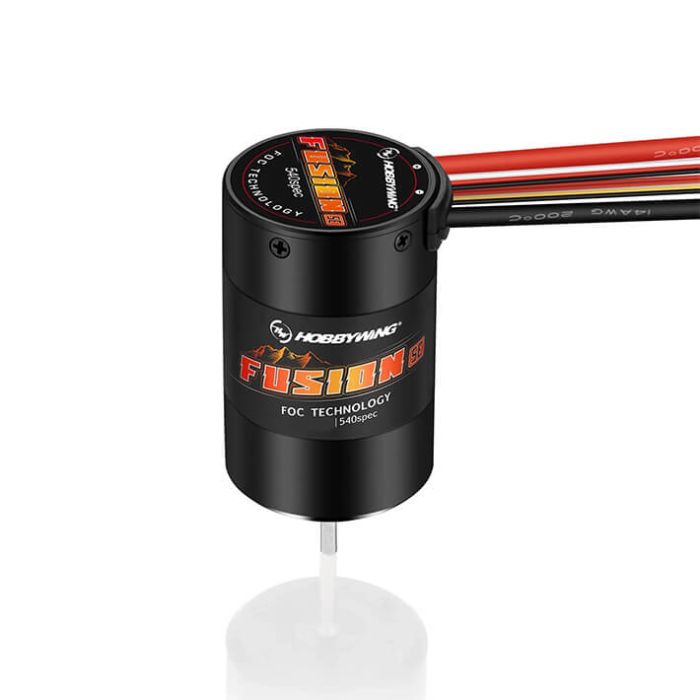

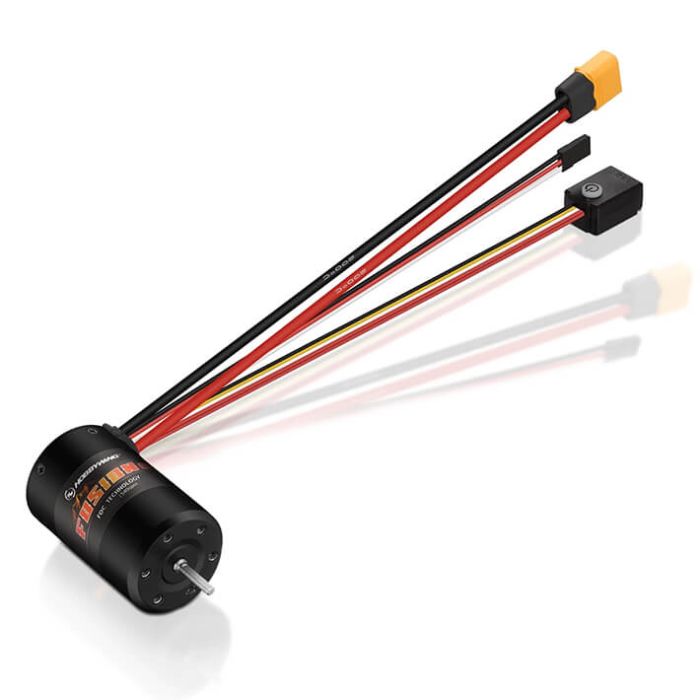

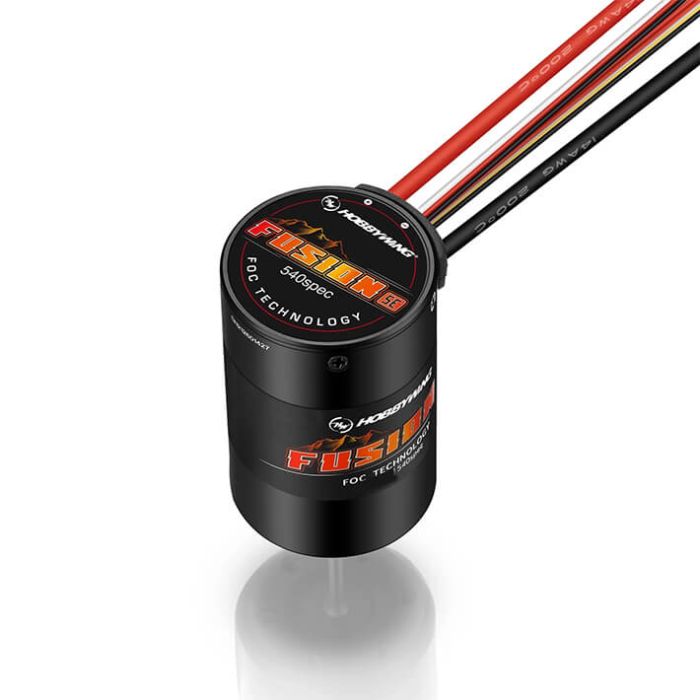

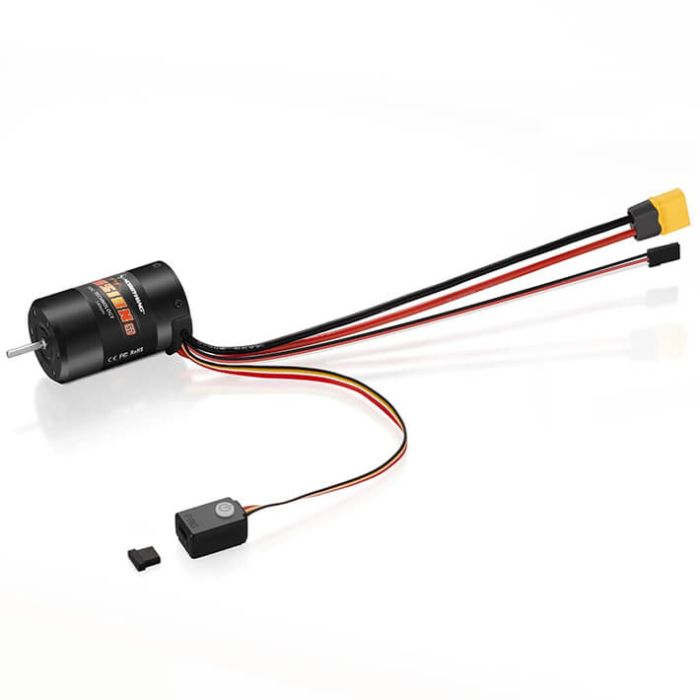

Hobbywing Quicrun Fusion SE 1800kv Brushless 1/10 RC Car 2in1 Motor ESC Combo

See All: Motors & ESC's

In Stock - Dispatches in 1-2 Days
Part Number
HW30404317
£89.99
Apple Pay
visa mastercard american-express paypal klarna apple-pay google-pay
Description

SPECIFICATIONS

Type

  • Scale: 1/10th
  • Brushed/Brushless: BL
  • Sensored/Sensorless: SD
  • Waterproof: Waterproof

    • Specifications

  • Cont./Peak Current: 40A
  • Input Voltage: 2-3S LiPo/6-9 Cell NiMH
  • BEC Output: 6V/7.4V@4A 6A peak
  • Motor KV: 1800KV
  • Diameter/Length of Motor: 36mm / 58.1mm
  • Shaft Diameter / Exposed Shaft Length: 3.175mm / 16.5mm
  • Motor Poles:4

    • Wires & Connectors

  • Input Wires: Red-14AWG-200mm*1 /' Black-14AWG-200mm*1
  • Input Connectors: XT60
  • (Note: All the wire length above is the original length, not the length you see from the outside.)

    • ESC Programming Via

  • SET Button on ESC: Not Supported
  • LED Program Box: Supported
  • LCD Program Box: Not Supported
  • OTA Programmer: Not Supported
  • Program Port: Independent programming interface (Switch Position)

    • Firmware

  • Firmware Upgrade: Not Supported

    • Size & Weight

  • Size: 36 x 58.1mm
  • Weight: 201g (Including Wires and Connectors)

    • Applications

  • Vehicles: 1/10th Rock Crawler

    • More Information
    Part Number HW30404317
    Manufacturer Hobbywing
