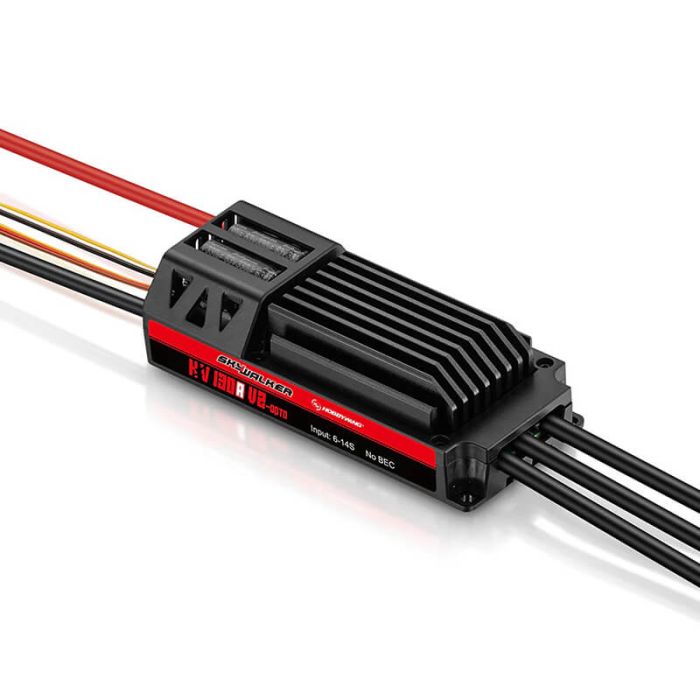

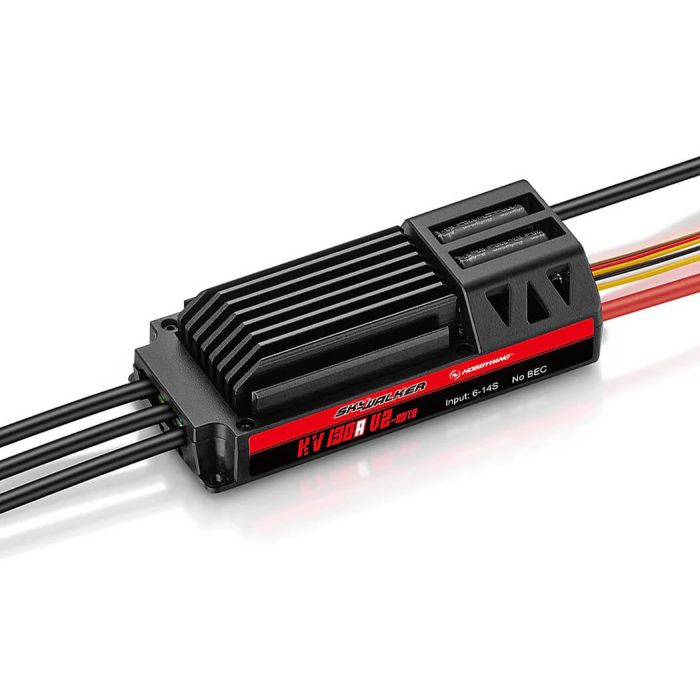

Hobbywing Skywalker 130A HV 14S Opto V2 ESC

Features

ESC which features a high-performance 32-bit ARM M4 microprocessor (with a running frequency of up to 120MHz) is compatible with various brushless motors.

DEO (Driving Efficiency Optimisation) Technology greatly improves throttle response, driving efficiency, and reduces ESC temperature.

Separate programming cable for connecting ESC to an LED program box and allows users to program the ESC anytime, anywhere.

Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.

Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.

Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage, and throttle signal loss effectively prolong the service life of the ESC.

Specifications

Type: Brushed/Brushless: Brushless
High Voltage/Regular: High Voltage
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: No BEC
Input Wires: Red-10AWG-300mm*1, Black-10AWG-300mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connectors: No
ESC Programing via:
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Program WireNot Supported
Size: 104x48x29mm
Weight: 253.2g

Part Number	HW30222300
Manufacturer	Hobbywing
