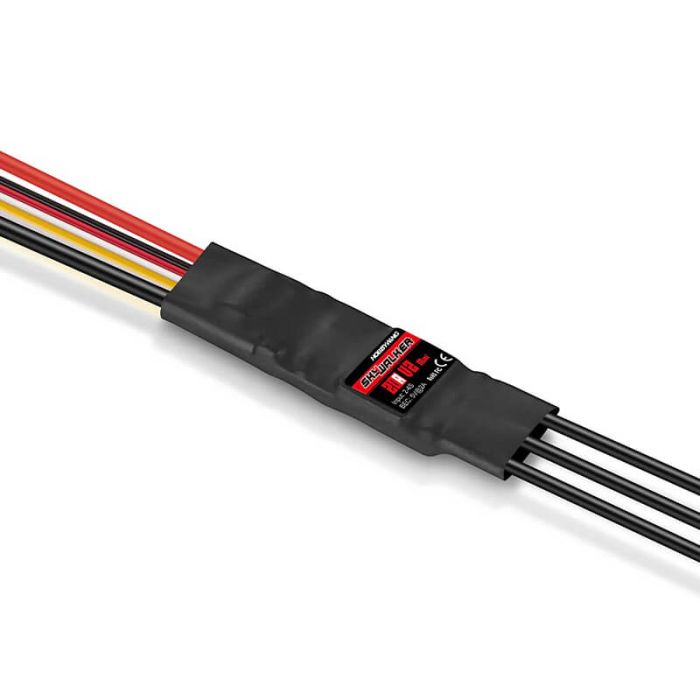

Hobbywing Skywalker 20A 4S V2 Mini Speed Control

Features

High performance 32-bit microprocessor (Running frequency up to 96MHz) has excellent compatibility with various types of motors.

DEO (Driving Efficiency Optimisation) Technology greatly improves throttle response & driving efficiency and reduces ESC temperature.

Separate programming cable for connecting ESC to a LED program box and allows users to program the ESC anytime, anywhere.

Normal/Reverse brake modes (esp. reverse brake mode) can effectively shorten the landing distance for the aircraft.

Search mode can help users find the aircraft by the alarm beeps after the aircraft falls into the complex environment.

Multiple protection features like start-up, ESC thermal, capacitor thermal, over-current, over-load, abnormal input voltage and throttle signal loss effectively prolong the service life of the ESC.

Specifications

Brushed/Brushless: Brushless
High Voltage/Regular: Regular
Cont./Peak Current: 20A/40A
Input: 2-4S LiPo
BEC Output: Switch Mode:5V,2A
Input Wires: Red-18AWG-150mm*1, Black-18AWG-150mm*1
Output Wires: Black-18AWG-100mm*3
Input Connectors: No
Output Connectors: 2.0Gold Connectors (Female)
ESC Programing via:
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
OTA Programmer: Not Supported
Program Port: Program Wire
Firmware Upgrade: Not Supported
Size: 34x15x10mm
Weight: 15g

Part Number	HW30205201
Manufacturer	Hobbywing
