Hobbywing Tunalyzer Brushless DC Electric RC Car Motor Tester

See All: Motors & ESC's

In Stock - Dispatches in 1-2 Days
Part Number
HW30504003
£314.99
Apple Pay
visa mastercard american-express paypal klarna apple-pay google-pay
Description

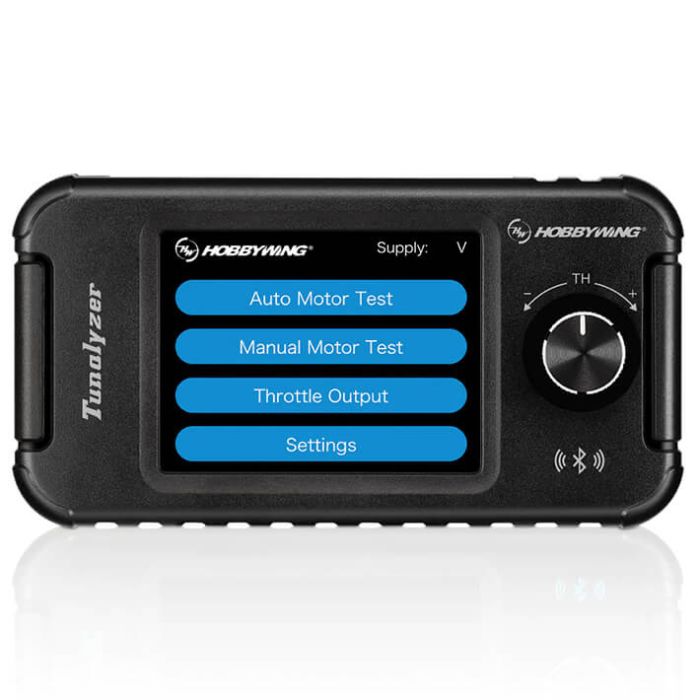

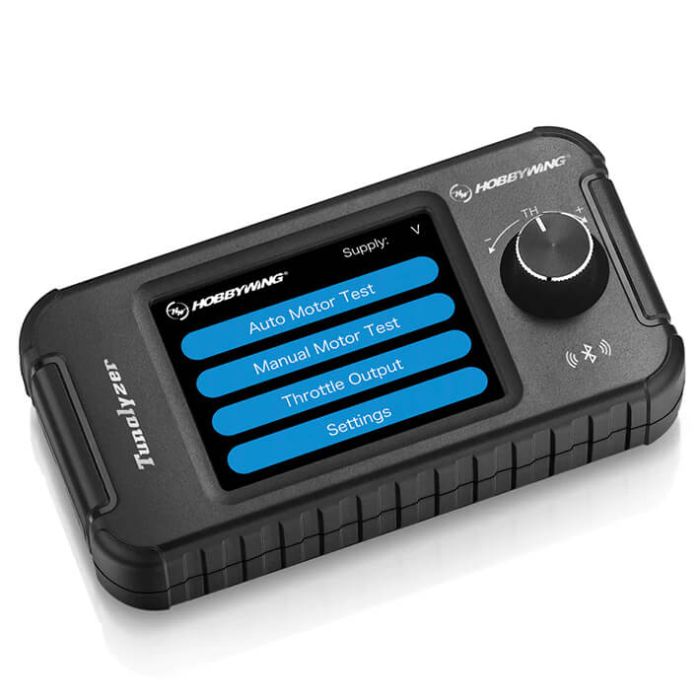

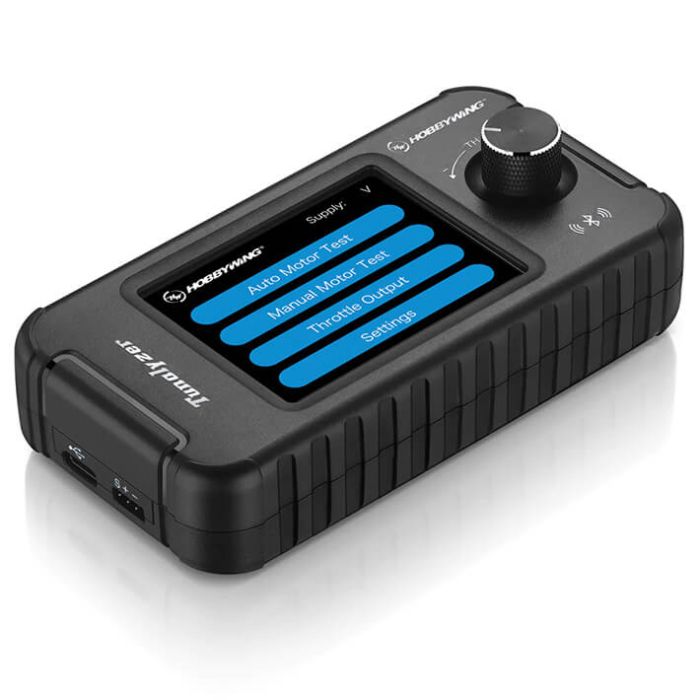

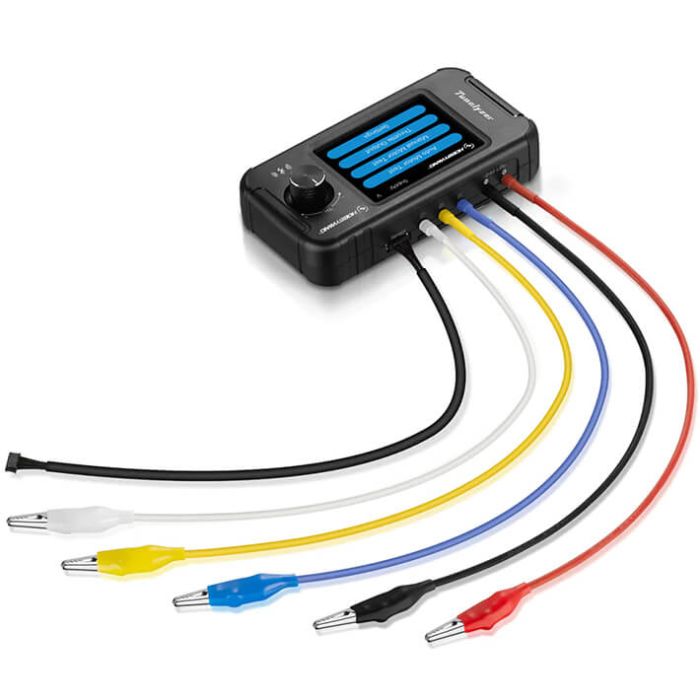

The Hobbywing Tunalyzer is used to test brushless DC motors and the internal components. It can measure the KV value, RPM, Current, End-bell timing and Sensor elements of a brushless motor. These parameters can be displayed on the LCD in real time so that you can have an intuitive and full understanding of the motor being tested. In addition, the built-in Bluetooth connection of the Tunalyzer can establish a connection to a Hobbywing esc through the mobile phone app to adjust the settings of the esc.

FEATURES

  • Automatic Test Mode
  • Timing, rotor, and signal accuracy within 0.1degrees
  • Stable Voltage Regulator
  • Manual Test Mode
  • Multi-Function Control Dial
  • RPM Displayed in Real Time
  • LCD Colour Touch Screen Display
  • OTA Tuning and Upgrades
  • Multiple motor types supported

    • SPECIFICATIONS

  • Input Voltage:6-16.8V (2-4S Lipo)
  • Motor Type: Sensored & Sensorless Brushless Motor
  • Maximum Test Current: 18A
  • Programming device: The Tunalyzer can double as your ESC programmer device for simple benchtop ESC tuning
  • Size: 122.8 x 64.6 x 39mm
  • Weight: 144g
  • Display:LCD Colour Touch Screen

    • More Information
    Part Number HW30504003
    Manufacturer Hobbywing
