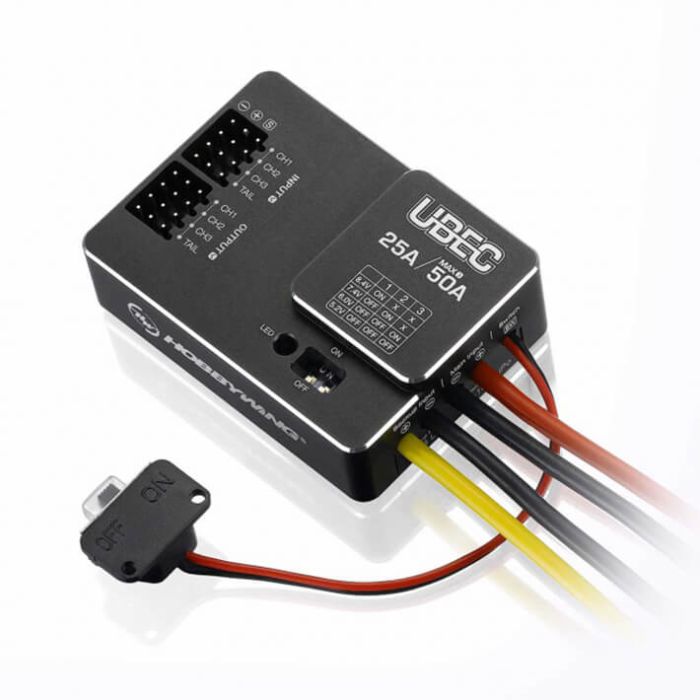

Hobbywing UBEC 25A HV 5.2V / 6.0V / 7.4V / 8.4V DC-DC Regulator

In Stock - Dispatches in 1-2 Days

Part Number
HW30606000
£64.99
Apple Pay
visa mastercard american-express paypal klarna apple-pay google-pay
Description

This UBEC is an external switching mode DC-DC regulator; it draws DC voltage from a 3-18S LiPo battery, drops it to a voltage level that is suitable for your receivers and other electronic devices, and can provide a stable high current output of up to 25Amp. As the UBEC has such a powerful output capability's particularly applicable for large helicopters and fixed-wing aircraft amongst other applications.

Specification

  • Input Voltage: 9V-80V (3S-18S LiPo)
  • Output Voltage: 5.2V / 6.0V / 7.4V / 8.4V (adjustable)
  • Output Current (Cont./Peak): 25A/50A
  • Input Wires Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1
  • Backup Power Supply: Yellow-16AWG-150MM*1/Black-16AWG-150mm*1
  • Output Wires 3P Vertical Pin Header (60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included)
  • Input Connectors: No
  • Output Connectors: No
  • Size: 55x40.2x17.6mm (LxWxH)
  • Weight: 74g
  • More Information
    Part Number HW30606000
    Manufacturer Hobbywing
