Hobbywing Xerun Axe Plus R3 & Axe 540l 1400Kv R2 Motor

Combo XeRun AXE Plus R3 & AXE 540L 1400KV R2 Motor

Experience the pinnacle of RC performance with the Hobbywing Combo XeRun AXE Plus R3 & AXE 540L 1400KV R2 Motor. This combo offers unparalleled control and power, making it ideal for enthusiasts seeking top-tier performance in their RC vehicles. The XeRun AXE Plus R3 ESC features advanced technology for smooth operation and precise control, while the AXE 540L 1400KV R2 Motor delivers impressive torque and acceleration. Together, they form a dynamic duo that elevates your RC experience to new heights.

Features Motor

• FOC (Field-Oriented-Control) for super linearity and high torque
• Patented Staggered Pole rotor design for ultra-low torque ripple
• Applicable to all weather and track conditions
• Built-in high precision magnetic encoder

Specifications Motor

Type: Brushless FOC
Pole: 4
KV Rating: 1400KV
LiPo Cells: 2S-3S
No Load Current: 1.7A
Outer Diameter: 36.0mm
Length: 57.8mm
Shaft Diameter: 3.17mm
Shaft Length: 15.5mm
Weight: 211g
Application: 1/10 Rock Crawler

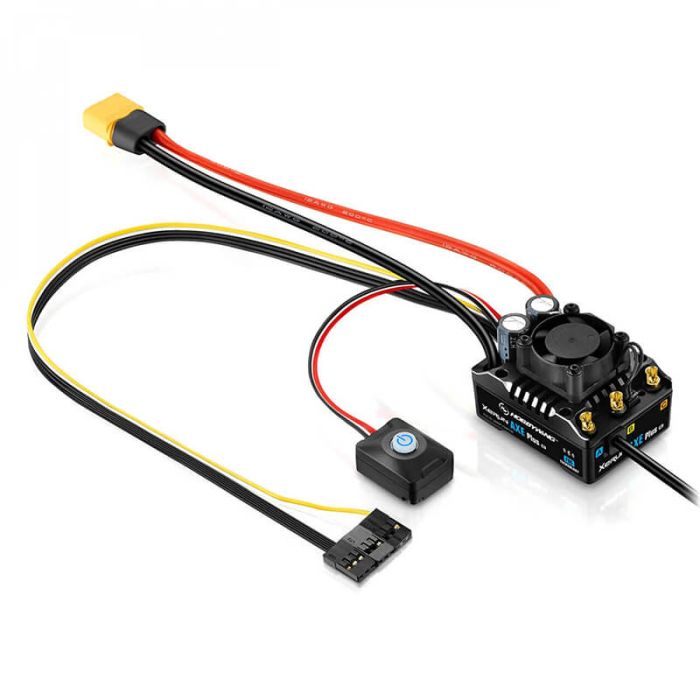

Features Xerun AXE Plus R3

• Stronger performance thanks to FOC (Field-Oriented-Control) technology.
• Drag brake adjustable up to 200% for unparalleled holding power on slopes.
• Super BEC with max. 6A and three voltage levels for using different servos.
• Waterproof and dustproof to IP67 standard.
• Smart torque delivery and speed control for easy control and constant speed under all loads.
• Built-in Bluetooth module.
• Multiple controller protection functions including reverse polarity protection.
• Only compatible with Xerun AX "R2" and "R3" motor series.

Specifications Xerun AXE Plus R3

Type: Brushless Sensored FOC
Current (cont./peak): 135A / 600A
Cells: 2S-6S LiPo
Motor Limits: Only supports Xerun-AXE "R2" and "R3" motor series
AXE R2: 540 / 540L / 550
AXE R3: 4274
BEC: 6V / 7.4V / 8.4V @ 6A (Switch Mode)
Waterproof: Yes
Cables: 1x 12AWG (black, 265mm), 1x 12AWG (red, 265mm)
Fan: 25 x 25 x 10mm, powered by BEC
Connectors: XT60
Programming: Per Bluetooth and "HW LINK"-App
Firmware Upgrade: Yes
Dimensions: 49.5 x 37.9 x 32.8mm
Weight: 126.5g
Application: 1/10, 1/8, 1/6 Rock Crawler

What's Included

• 1x Xerun AXE Plus R3 ESC
• 1x Motor
• 1x Manual
