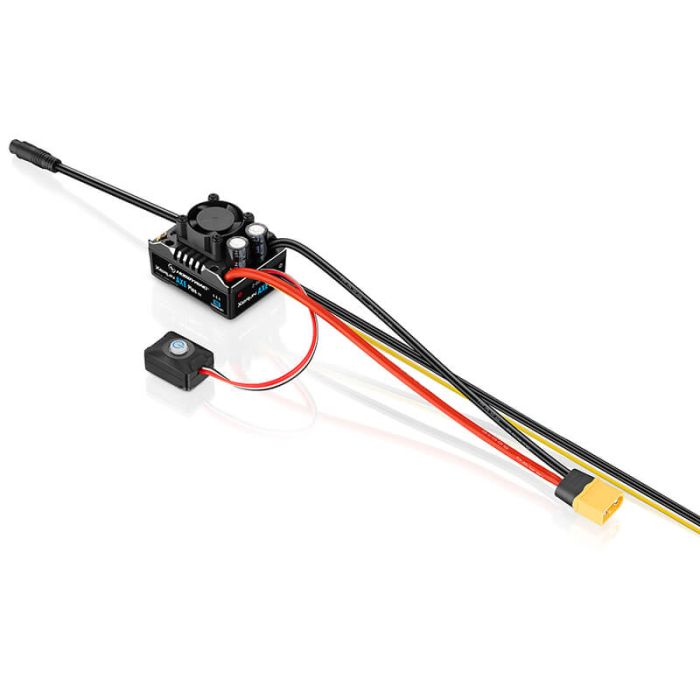

Hobbywing Xerun Axe Plus R3 Sensored Brushless Crawler ESC
See All:
Motors & ESC's
Description
The Hobbywing XERUN AXE PLUS R3 is a 2-6S LiPo, 135A sensored ESC engineered for high-performance 1/10th, 1/8th, and larger rock crawlers. Featuring an FOC drive system for silent, highly linear throttle control and abundant low-speed torque, the AXE PLUS R3 provides unmatched control on extreme terrain. Its powerful built-in 15A BEC is voltage-switchable (up to 8.4V), and an IP67 waterproof rating ensures reliability in all conditions. With integrated Bluetooth and real-time data logging, tuning and monitoring your crawler has never been easier.
FeaturesFOC (Field-Oriented Control) Drive: Delivers excellent linearity, massive torque at low speed, and nearly silent operation, significantly outperforming ordinary brushless systems.
IP67 High Protection Level: Excellent waterproofing and dust-proofing performance (splash-proof/water-resistant under normal use) for all-weather crawling.
Super Internal BEC: Built-in powerful BEC with 15A peak current, with voltage switchable between 6V, 7.4V, and 8.4V to support high-voltage servos and accessories (lights, winches, etc.).
Integrated Bluetooth Module: Allows for direct connection to the HW Link mobile app for parameter settings, data reading, and firmware updates.
Smart Torque Output: The ESC automatically adjusts torque to stabilize vehicle speed when climbing up or down hills, providing superior control.
Data Logging: Built-in module stores up to 10 minutes of running data, which can be viewed via the HW Link V2 App.
Wide Application: Compatible with 1/10th, 1/8th, 1/7th, and 1/6th crawlers.
SpecificationCont./Peak Current135A / 600A
LiPo Cells2-6S LiPo
Motor TypeXERUN AXE R3/R2 Series Only
BEC Output6V / 7.4V / 8.4V (Adjustable)
BEC Continuous Current6A (15A peak)
Size (without fan)49.5 x 37.9 x 22.8mm
Weight126.5g (including wire)
Features
Specification
More Information
| Part Number | HW30113201 |
|---|---|
| Manufacturer | Hobbywing |
