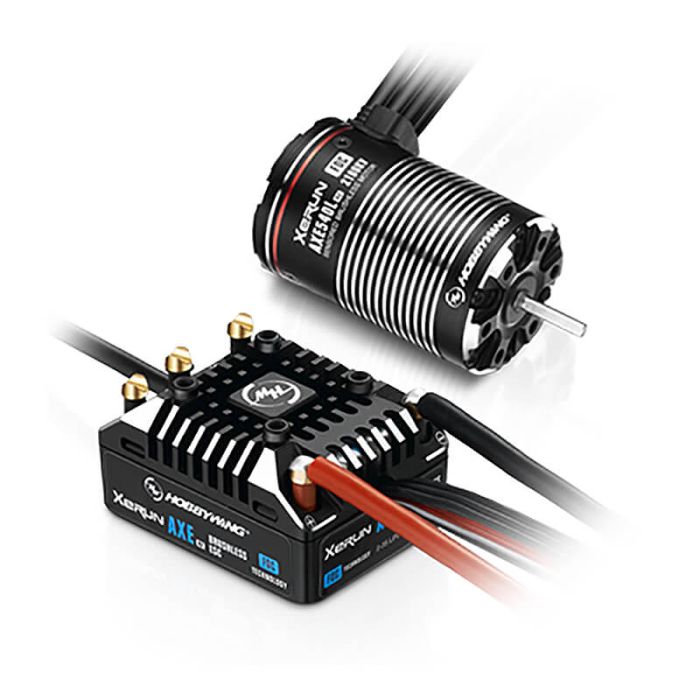

Hobbywing Xerun Axe540 2300Kv R2 Foc Sensored Brushless Combo

The XeRun AXE "R2" brushless controller, paired with the matching AXE "R2" motor, automatically adjusts torque and speed based on load demands using advanced Field-Oriented Control (FOC) technology. This ensures a smooth and highly responsive driving experience.

The XeRun AXE "R2" 540 motor features a 3.175mm shaft and a 2300KV rating. Its patented staggered pole rotor design minimizes detent torque, ensuring exceptionally smooth operation under all conditions. The professional handbrake function keeps the vehicle completely stationary, even on steep inclines. The motor and controller are linked through a specially designed, waterproof sensor plug for improved durability and performance.

For experienced users, the ESC offers a wide range of customizable settings. With Bluetooth connectivity and the "HW LINK" app, you can monitor real-time data, adjust settings, and update firmware effortlessly.

ESC Data

Type: Brushless FOC
Max cont/peak current: 80A/480A
Cells count: 2-3s LiPo, 6-9 Cells NiMH
Motor limit: For XeRun-AXE "R2" range
BEC: 6V/7.4V with 6A
Programming: via Bluetooth & APP "HW LINK"
Waterproof: Yes
Dimensions: 47.4 x 36.2 x 26.5mm
Weight: 108g
Usage: 1/10 Rock Crawler

Motor Data

Type: Sensored Brushless FOC
Pole: 4
Kv: 2300KV
Lipo count: 2-3s
No load current: 2.5A
Diameter: 36.0mm
Length: 49.8mm
Waterproof: Yes
Weight: 185g
Usage: 1/10 Rock Crawler
