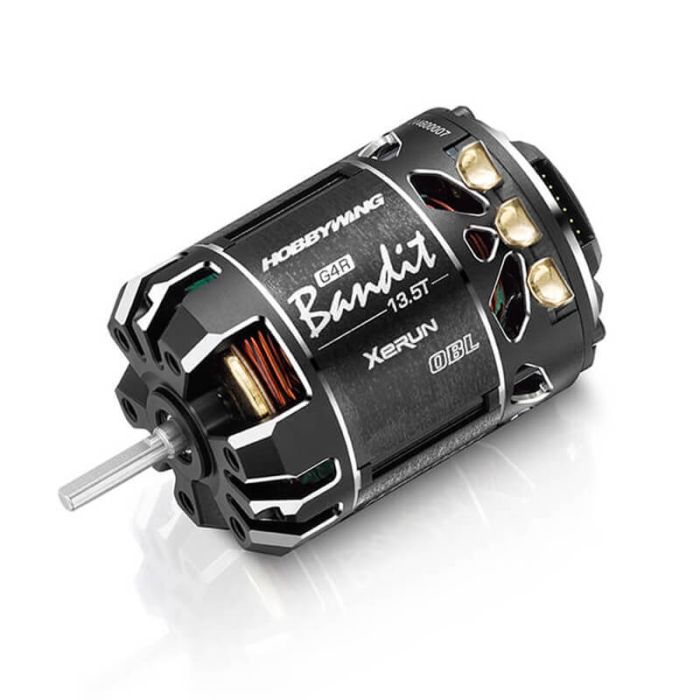

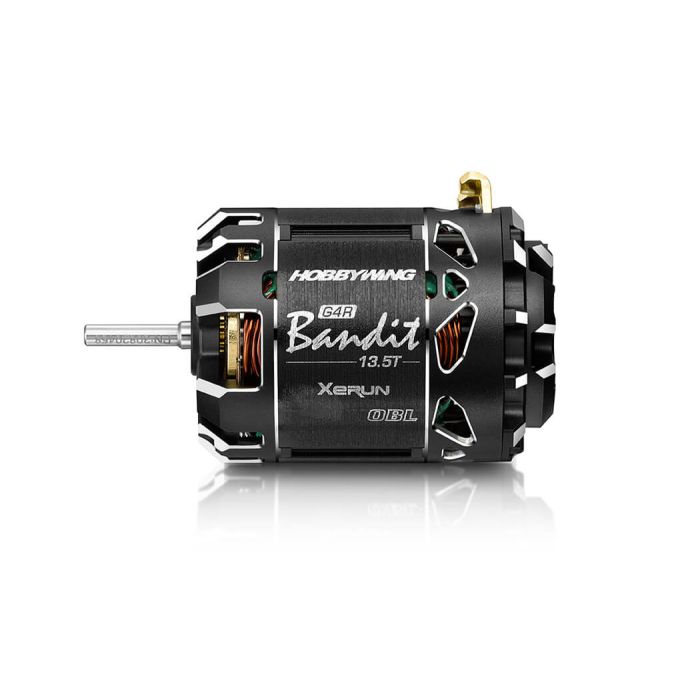

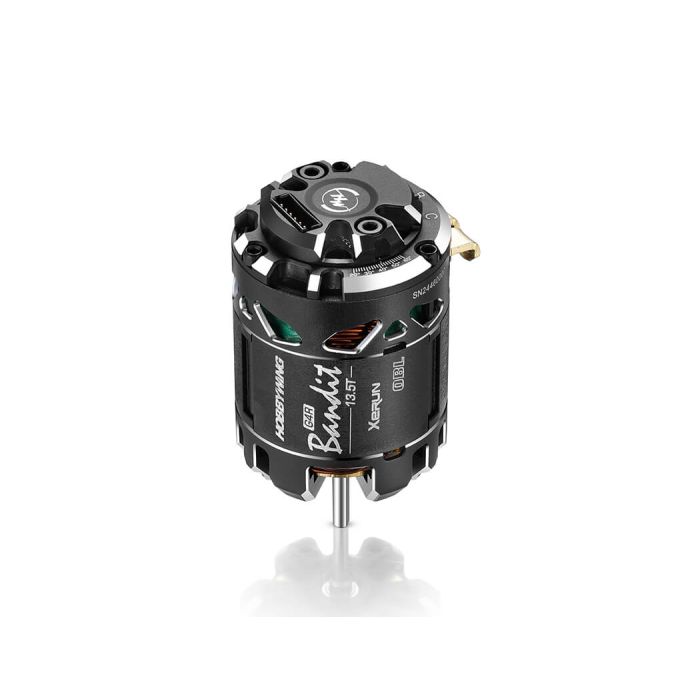

Hobbywing Xerun Bandit 13.5T Black G4r Obl Motor

Features

Excellent performance, specially designed for 1/10 outlaw stock racing.

Compared to the previous generation, the KV value of the 13.5T-OBL version has been increased by 11.7%, the motor length has been shortened by 2mm, and the weight has been reduced by 15g.

The OBL version is lighter, shorter, and provides more RPM.

The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the end of the motor is a big opening structure to further improve the heat dissipation effect.

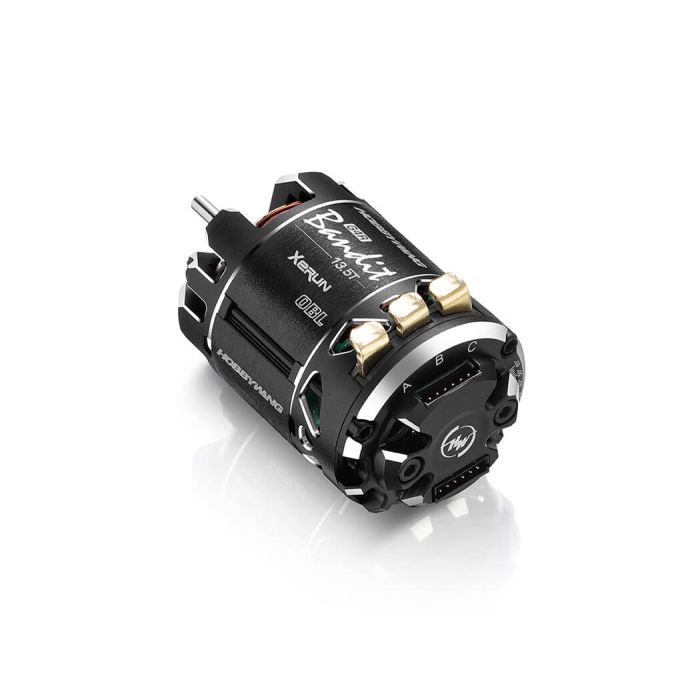

Dual sensor interface design to meet various wiring/layout requirements.

The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.

The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

The use of high-performance stator core, 220? high-temperature-resistant enameled wire high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding performance and super durability.

Specifications

Scale: 1/10th
Brushed/Brushless: BL
Sensored/Sensorless: SD
Pole Count: 2
KV Rating: 3800KV
LiPo Cells: 1-3S
No-load Current(A): 4.4A

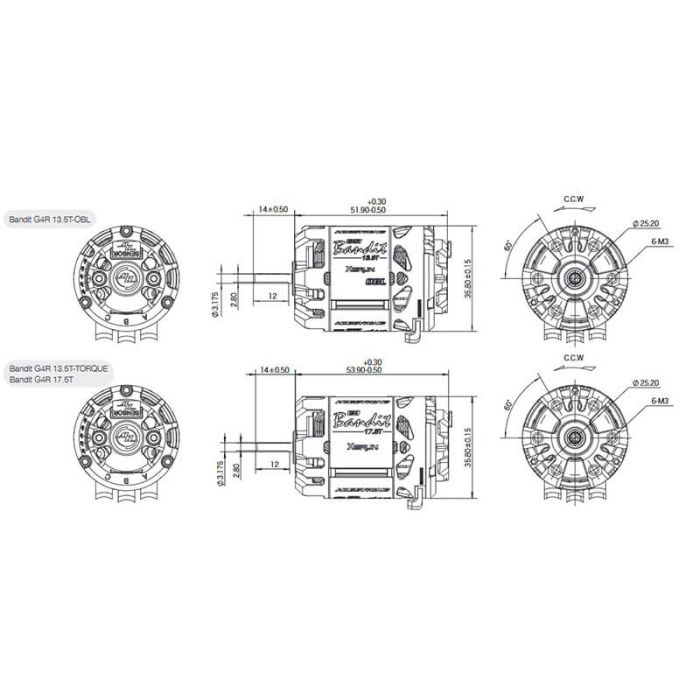

O.D.(mm): 35.8
Length (mm): 51.9
Shaft Diameter (mm): 3.175
Weight (g): 172g
Front Bearing: D9*D4*T4
Rear Bearing: D8*D3*T4
ESC: XERUN XR10 PRO G3
Vehicles: 1/10th Outlaw Stock Racing

Part Number	HW30401861
Manufacturer	Hobbywing
