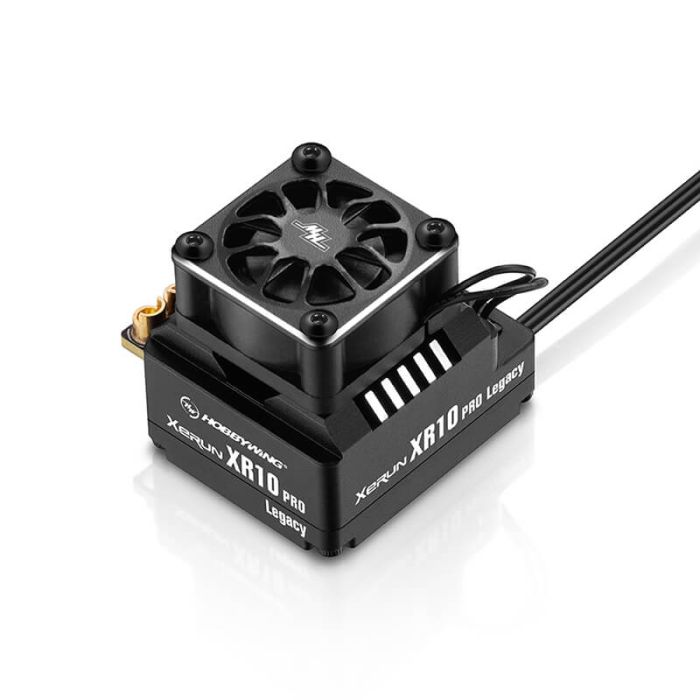

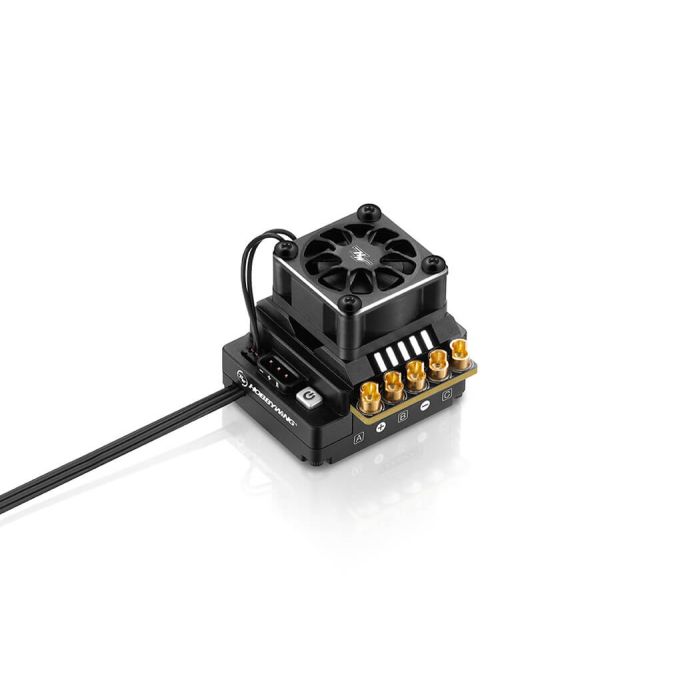

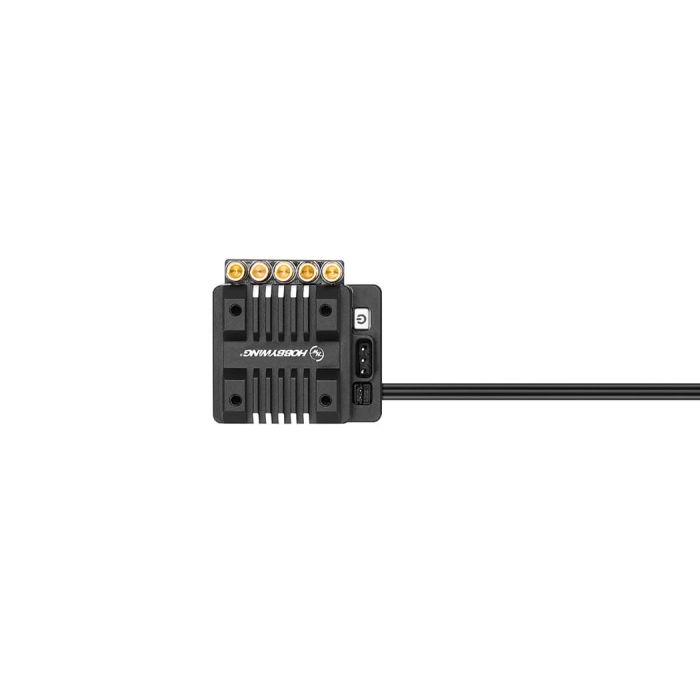

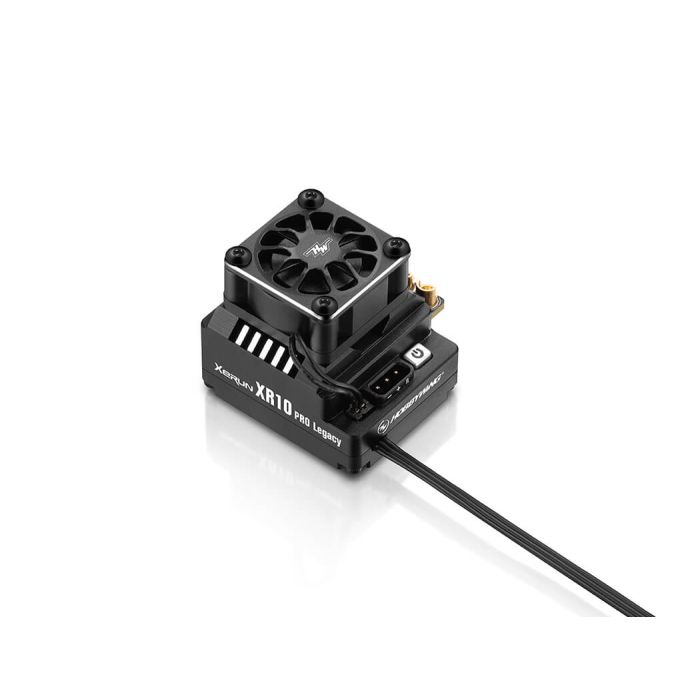

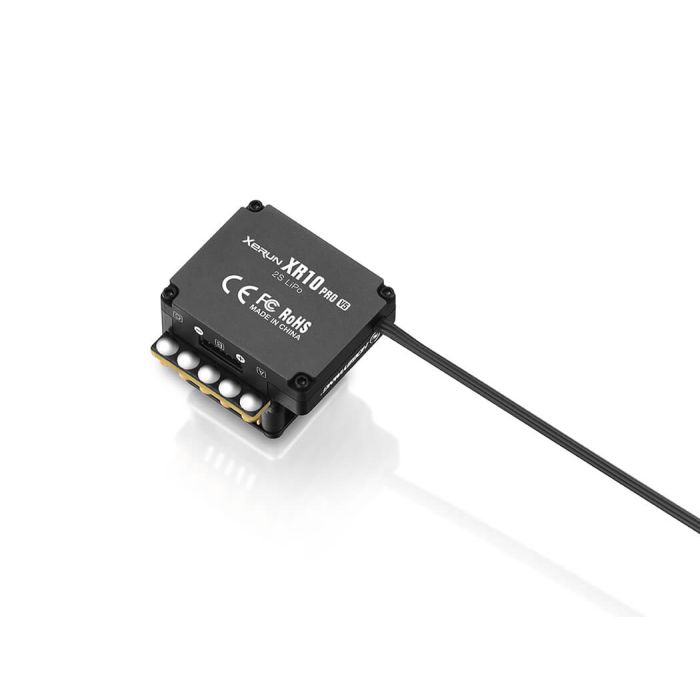

Hobbywing Xerun XR10 Pro Legacy Speed Control - Black
See All:
Motors & ESC's
Description
Equipped with a built-in reverse polarity protection circuit, the ESC offers worry-free operation by preventing damage from incorrect battery connections, ensuring reliability and peace of mind every time you power up.
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimisation and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.
The Legacy now includes Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance.
Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone.
Real-time Data Logging Function for Easy Access to Power System Status.
Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.
Specifications
Cont./Peak Current: 150A/1000A
Input Voltage: 2S LiPo
BEC Output: 5V-7.4V,5A
Input Wires: Black-13AWG-200MM*2
Output Wires: Black-13AWG-200MM*3
Input Connectors: No
Output Connectors: No
ESC Programing via:-
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Independent program port
Data Recording:-
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 37.7*37.0*33.2mm
Weight: 94.2g( Included wires & connectors)
Motors: Sensorless Brushless/Sensored Brushless Motor
Powered by a 32-bit M4 processor, the ESC delivers lightning-fast response, and handles more data with precision. With the potential for continuous feature optimisation and expansion, it combines pro-level racing hardware with advanced software to create the ultimate game-changer on track.
The Legacy now includes Smart Fan technology that runs the fan only when needed. This temperature controlled fan circuit prolongs fan life and improves overall performance.
Pair the ESC with the OTA Bluetooth module to access wireless connectivity with your smartphone.
Real-time Data Logging Function for Easy Access to Power System Status.
Connect the ESC to the OTA Bluetooth module and pair it with the HW Link mobile app to access real-time data monitoring. Monitor throttle, voltage, temperature, RPM and other data, while the OTA’s built-in memory records everything for detailed post-race analysis to fine-tune performance like never before.
Specifications
Cont./Peak Current: 150A/1000A
Input Voltage: 2S LiPo
BEC Output: 5V-7.4V,5A
Input Wires: Black-13AWG-200MM*2
Output Wires: Black-13AWG-200MM*3
Input Connectors: No
Output Connectors: No
ESC Programing via:-
SET Button on ESC: Not Supported
LED Program Box: Not Supported
LCD G2 Program Box: Supported
LCD PRO: Supported
OTA Programmer: Supported
Program Port: Independent program port
Data Recording:-
Extreme value: Supported
Real-time Data: Supported
Historical data (Graph): Supported
Firmware Upgrade: Supported
Size: 37.7*37.0*33.2mm
Weight: 94.2g( Included wires & connectors)
Motors: Sensorless Brushless/Sensored Brushless Motor
More Information
| Part Number | HW30112800 |
|---|---|
| Manufacturer | Hobbywing |
