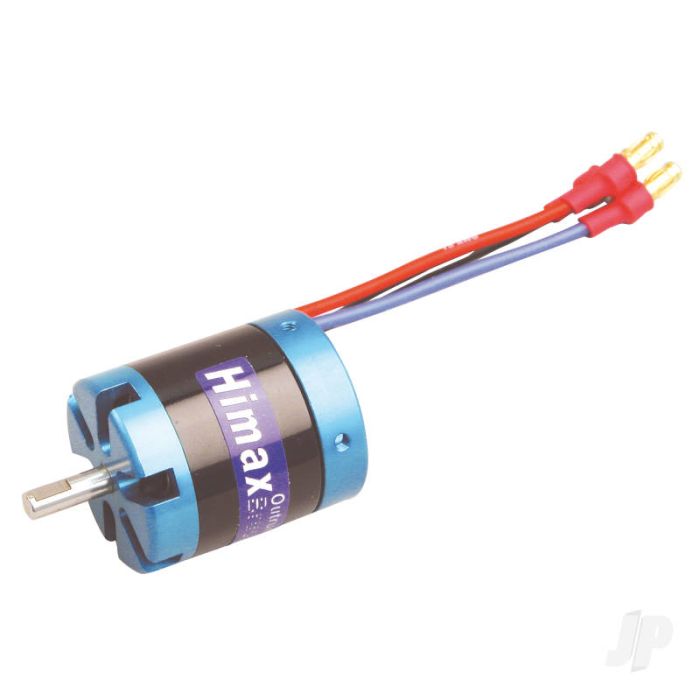

Multiplex HIMAX Brushless Motor Outrunner C 2816-1220 w/accessories (333017)
See All:
Motors & ESC's
Description
Motors in the 200 Watt class, suitable for 3-D model aircraft weighing about 500 g to 700 g, for aerobatic models up to 900 g, and trainers up to about 1200 g. Also good for gliders weighing up to 2000 g. Himax C 2816-1220
Typical operating data: 2S LiPo / 11" x 4.7" prop: current drain: approx. 20.0 A 3S LiPo / 9" x 4.7" prop: current drain: approx. 22.0 A
Specification
| RPM / V: | 1220 |
| Cell count NiXX / LiPo: | 6-9/2S-3S |
| Optimum working range: | 7 -20 A |
| Max current for 15 sec.: | 25 A |
| íëí: | 28mm |
| Lenght: | 33mm |
| Weight: | 77g |
| Shaft íëí: | 4mm |
| Mounting: | íëí 16 mm/4 x M2,5 |
More Information
| Part Number | MPX333017 |
|---|---|
| Manufacturer | Multiplex |
