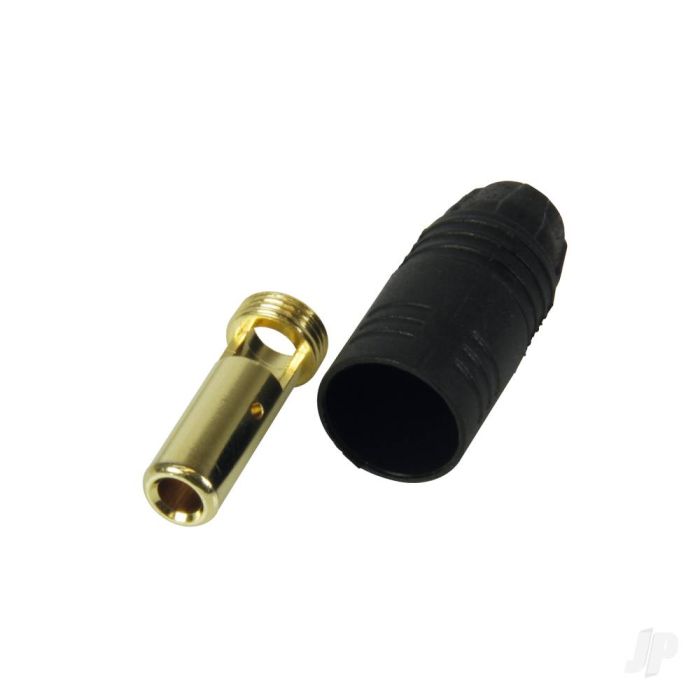

Multiplex MPX-AS150 Male Plug, Black (2 pcs)
See All:
Switches & Connectors
Description
FEATURES
- Dimension: 30.2mm x 13.5mm
- Weight: plug 6 grams
- Maximum voltage: 500V DC
- Current carrying capacity: 70A short-term 150A
DETAILS
1-02305 MPX plug AS150 black The MPX AS150 connectors are very robust and easy to use. They are suitable for larger drives. The housing has a good grip and is injection-moulded from temperature-resistant polyamide, which is classified according to fire class UL94 V0. It is securely screwed onto the contact via a thread. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The solder connections of the AS150 contacts are designed for cables with a cross-section of up to approx. 13mm (AWG 6).More Information
| Part Number | MPX1-02305 |
|---|---|
| Manufacturer | Multiplex |
