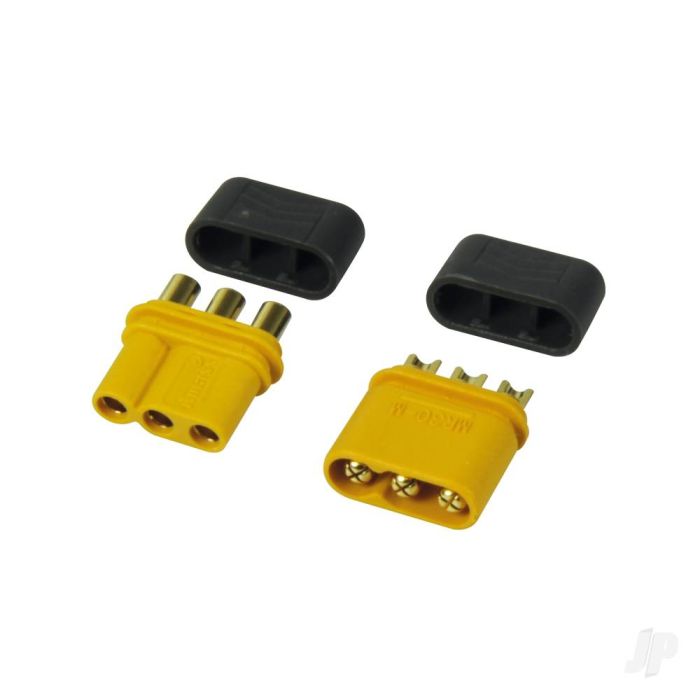

Multiplex MPX-MR30 (5 pairs)
See All:
Switches & Connectors
Description
FEATURES
- 3 pole
- Contact diameter: 2mm
- Dimension: Jack 14.4mm x 11.9mm x 4.9mm / Plug 15.4mm x 11.9mm x 4.9mm
- Weight: Female 1.0 grams / Male 1.5 grams
- Maximum voltage: 500V DC
- Current carrying capacity: 15A short-term 30A
DETAILS
#1-02291 MPX connector MR30 The MPX MR-30 plugs are constructed asymmetrically, which guarantees high protection against polarity reversal. They are suitable as a plug connection between controller and motor for small brushless drives or as a connector for wing/tail servos on the fuselage. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the MR30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).More Information
| Part Number | MPX1-02291 |
|---|---|
| Manufacturer | Multiplex |
