Multiplex MPX-XT30 (5 pairs)
See All:
Switches & Connectors
Description
FEATURES
- 2 pin
- Contact diameter: 2mm
- Dimension: Jack 12.4mm x 10.2mm x 5.2mm / Plug 13.7mm x 10.2mm x 5.2mm
- Weight: Female 0.8 grams / Male 1 gram
- Maximum voltage: 500V DC
- Current carrying capacity: 15A short-term 30A
DETAILS

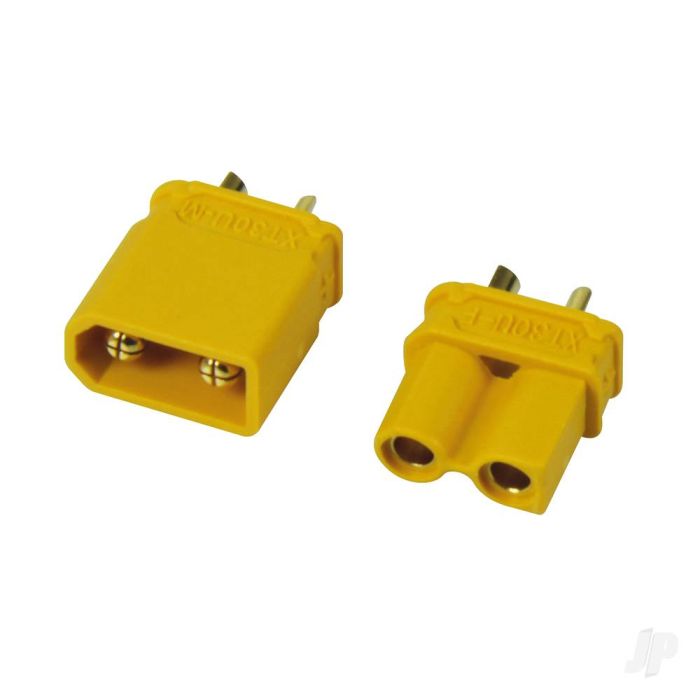

#1-02288 MPX connector XT30 The MPX XT-30 plugs are constructed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for small drives or in the receiver power supply. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT30 contacts are designed for cables with a cross-section of up to approx. 0.8-1.0mm (AWG 18/17).More Information
| Part Number | MPX1-02288 |
|---|---|
| Manufacturer | Multiplex |
