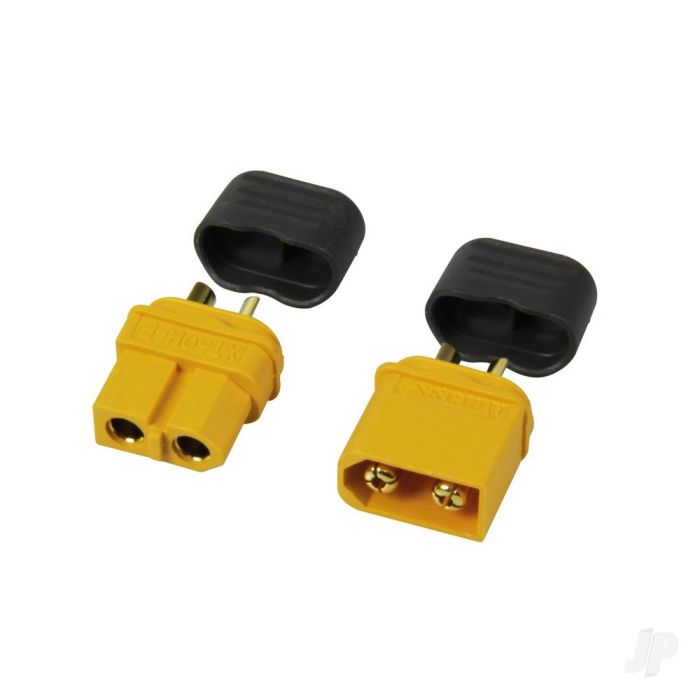

Multiplex MPX-XT60 (3 pairs)
See All:
Switches & Connectors
Description
FEATURES
- 2 pin
- Contact diameter: 3.5mm
- Dimension: Jack 20.2mm x 15.5mm x 8.1mm / Plug 20.5mm x 15.5mm x 8.1mm
- Weight: Female 3.6 grams / Male 3.8 grams
- Maximum voltage: 500V DC
- Current carrying capacity: 30A short-term 60A
DETAILS
#1-02294 MPX connector XT60 The MPX XT-60 connectors are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium-sized drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT60 contacts are designed for cables with a cross-section of up to approx. 3.0-3.5mm (AWG 12/11).More Information
| Part Number | MPX1-02294 |
|---|---|
| Manufacturer | Multiplex |
