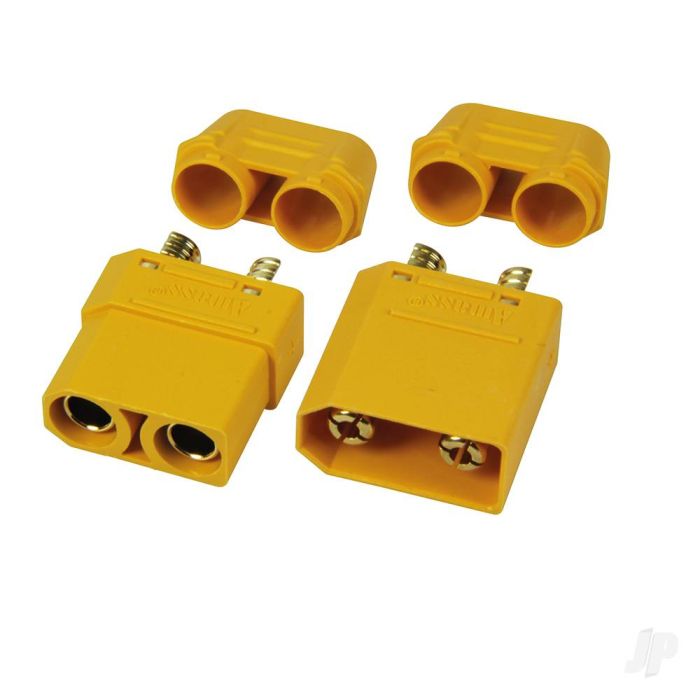

Multiplex MPX-XT90 (3 pairs)
See All:
Switches & Connectors
Description
FEATURES
- 2 pin
- Contact diameter: 4.5mm
- Dimension: Jack 29.7mm x 20.8mm x 9.9mm / Plug 30.7mm x 20.8mm x 9.9mm
- Weight: Female 8 grams / Male 7.5 grams
- Maximum voltage: 500V DC
- Current carrying capacity: 45A short-term 90A
DETAILS
#1-02297 MPX connector XT90 The MPX XT-90 plugs are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium to large drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT90 contacts are designed for cables with a cross-section of up to approx. 5mm (AWG 10).More Information
| Part Number | MPX1-02297 |
|---|---|
| Manufacturer | Multiplex |
