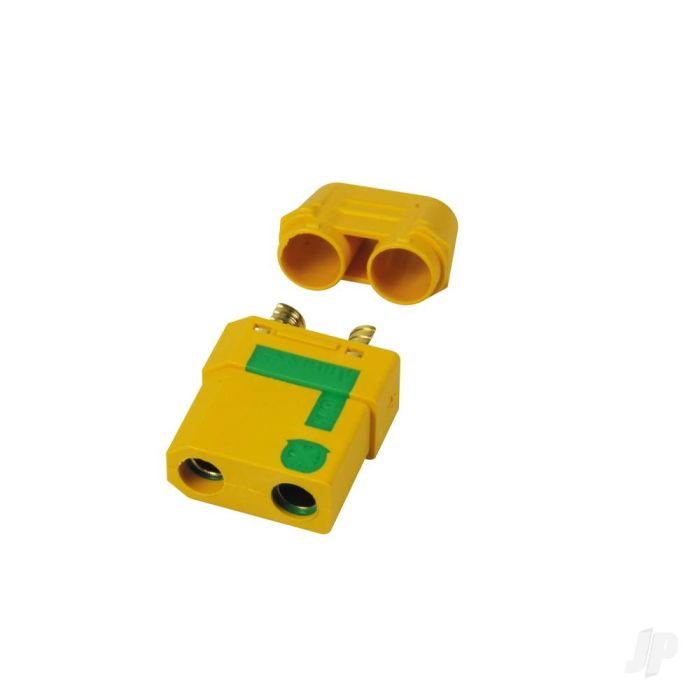

Multiplex MPX-XT90 Antiblitz Female Plug (2 pcs)
See All:
Switches & Connectors
Description
FEATURES
- 2 pin
- Contact diameter: 4.5mm
- Dimension: 31.1mm x 20.8mm x 9.9mm
- Weight: socket 9 grams
- Maximum voltage: 500V DC
- Current carrying capacity: 45A short-term 90A
DETAILS
1-02301 MPX socket XT90 anti-flash The MPX XT-90 plugs are designed asymmetrically, which guarantees a high level of reverse polarity protection. They are suitable for medium to large drives. The housing made of temperature-resistant polyamide is classified according to fire class UL94 V0. High-quality, gold-coated brass contacts transmit high currents with low resistance and reliable contact. The soldering connections of the XT90 contacts are designed for cables with a cross-section of up to approx. 5mm (AWG 10). This XT90 socket is equipped with an anti-lightning resistor, which suppresses sparking when the drive battery is connected to the ESC.More Information
| Part Number | MPX1-02301 |
|---|---|
| Manufacturer | Multiplex |
