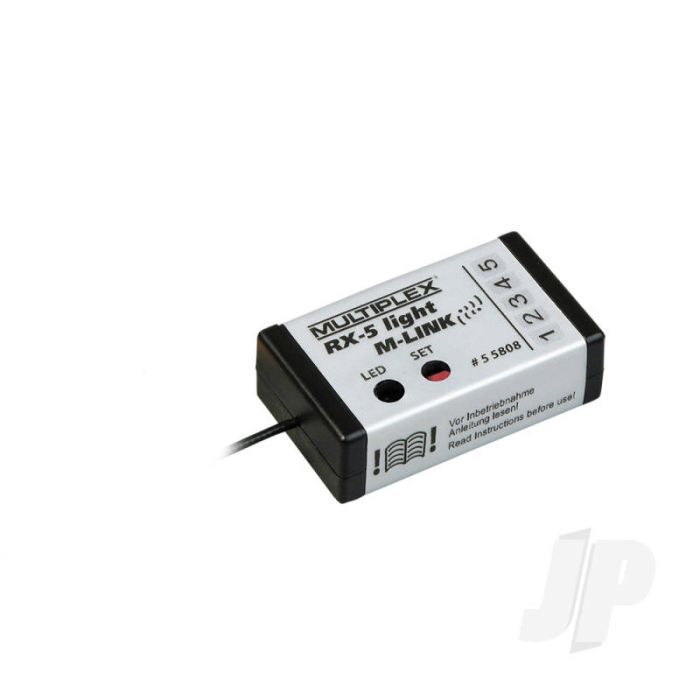

Multiplex Receiver RX-5 Light M-LINK 2.4GHz 55808
See All:
Receivers
Description
Small, reasonably priced five-channel 2.4 GHz M-LINK receiver with the UNI connector system. A compact case and small dimensions in conjunction with in-line connectors make this unit ideal for the smaller model.
Typical applications:
- Model helicopters up to around 80 cm rotor diameter
- Electric and power models up to about 1.3 m wingspan
- Gliders and electric gliders up to about 2 m wingspan
- RC model cars
- RC model boatsThe plus-points:
- HOLD / FAIL-SAFE function
- Integral button and LED for: Binding, FAIL-SAFE programming, RESET, Operating status information
Specification
| Servo channel count: | 5 |
| Reception system: | 2.4 GHz FHSS (Frequency |
| Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Operating temperature range: | -20°C … +55°C |
| Dimensions (L x W x H): | approx. 34 x 19.5 x 11 mm |
| Weight: | approx. 7 g |
More Information
| Part Number | MPX55808 |
|---|---|
| Manufacturer | Multiplex |
