Multiplex Receiver RX-6-Dr Light M-LINK 2.4GHz 55809
See All:
Receivers
Description

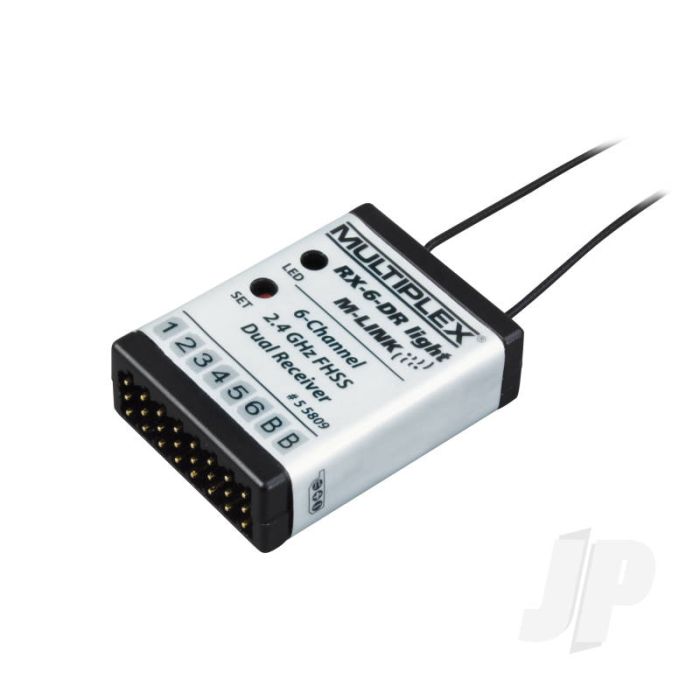

This is a small, all-purpose six-channel receiver exploiting MULTIPLEX 2.4 GHz M-LINK technology.
It is a dual receiver, featuring two complete receiving circuits operating in parallel (receiver diversity), ensuring excellent reception quality in spite of the unit's small dimensions.
The RX-6-DR light M-LINK is a particularly good choice for the smaller model as it is so light and compact. The in-line connector arrangement and compact case design make it suitable for installation in slim glider fuselages, e.g. F3B, F3J, …
- HOLD / FAIL-SAFE function
- Integral button and LED for Binding, FAIL-SAFE programming, RESET and operating status information
Specification
| Servo channel count: | 6 |
| Reception system: | 2.4 GHz FHSS |
| (Frequency Hopping Spread Spectrum) | |
| Operating voltage: | 3.5 V … 9.0 V |
| Power supply: | 4 - 5 NiXX cells, 2S LiPo / LiIo |
| Permissible operating temperature range: | - 20°C … + 55°C |
| Dimensions (L x W x H): | approx. 38 x 28 x 11,5 mm |
| Weight: | approx. 10 g |
More Information
| Part Number | MPX55809 |
|---|---|
| Manufacturer | Multiplex |
