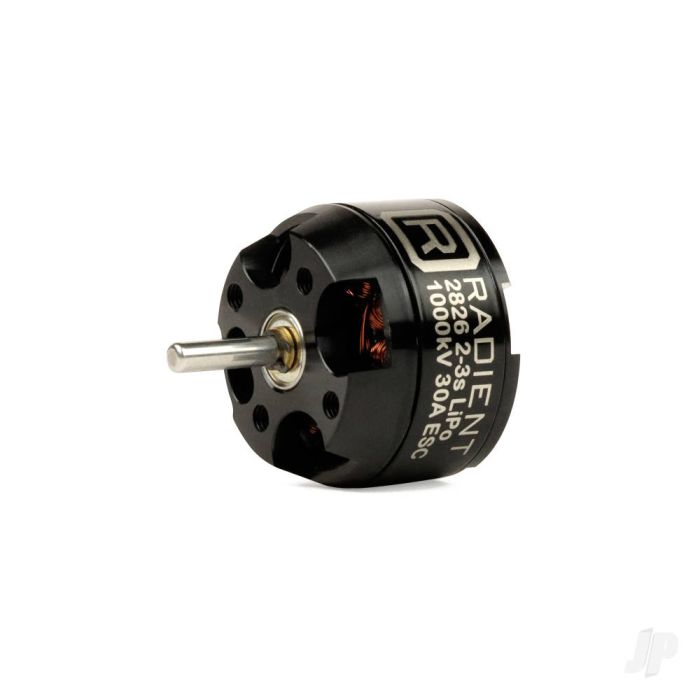

Radient Brushless Motor 2826 1000KV (2-3S)
See All:
Motors & ESC's
Description
FEATURES
- 14 Pole 12 slot hi-torque rotor.
- CNC-machined 6061-T6 billet heatsink can.
- High purity, maximum efficiency copper windings.
- High RPM ABEC5 oversized bearings.
- Precision balanced rotor offers smooth, reliable performance.
- Super-thin (0.2mm) stator laminations.
- Precision engineered for maximum energy conversion.
CONTENTS
- 1x Radient high-torque brushless motor.
- 1x Shaft prop drive.
- 1x Can prop drive.
- 1x X-type mounting bracket.
- 4x Short countersunk screws for attaching the bracket to the motor.
- 4x Long cap head screws for can prop drive installation.
DETAILS
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. Its a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.Specification:
| Watts (W): | 220 |
| Recd ESC (A): | 20 |
| Recd LiPo (cells): | 2-3S |
| Shaft Dia. (mm): | 3.0 |
| Bullet Connector (mm): | 3.5 |
| Weight (g): | 45 |
| Prop Size / 2S (in): | 10x6 / 11x6 |
| Prop Size / 3S (in): | 9x6 / 10x5 |
More Information
| Part Number | RDNM28261000 |
|---|---|
| Manufacturer | Radient |
