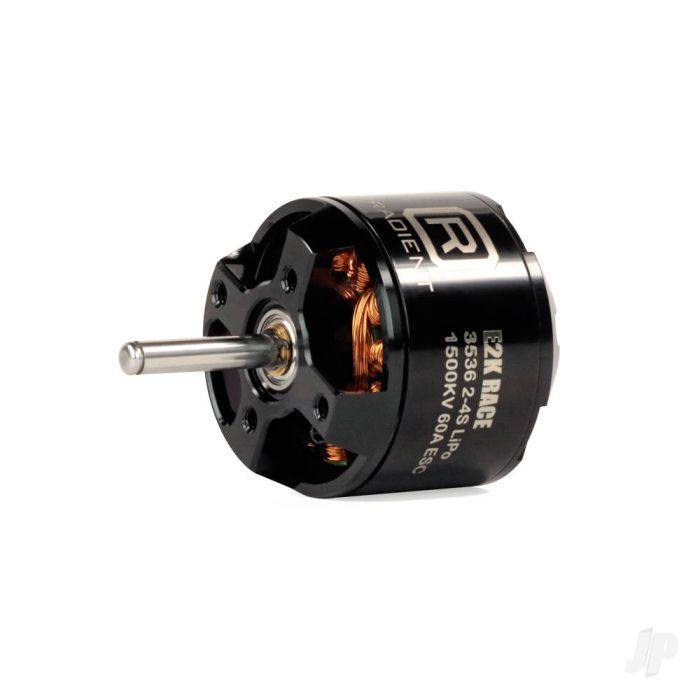

Radient Brushless Motor 3536 1500KV (2-4S) (E2K Race)
See All:
Motors & ESC's
Description
Designed specifically for use in model aircraft, all Radient high-torque brushless motors feature a 14 pole precision-balanced rotor, 6061-T6 aluminium alloy front and rear covers, high purity copper windings and a heavy-duty stainless steel shaft. It’s a combination that, in tandem with high-quality oversize bearings, offers beautifully smooth running, longevity and an ability to turn large propellers. With a mounting option at either end, Radient brushless outrunners are engineered to offer the flexibility and power you need over a long and trouble-free life.
Features14 Pole 12 slot hi-torque rotor.
CNC-machined 6061-T6 billet heatsink can.
High purity, maximum efficiency copper windings.
High RPM ABEC5 oversized bearings.
Precision balanced rotor offers smooth, reliable performance.
Super-thin (0.2mm) stator laminations.
Precision engineered for maximum energy conversion.
Specification:Watts (W): 750
Rec’d ESC (A): 80
Rec’d LiPo (cells): 2-4S

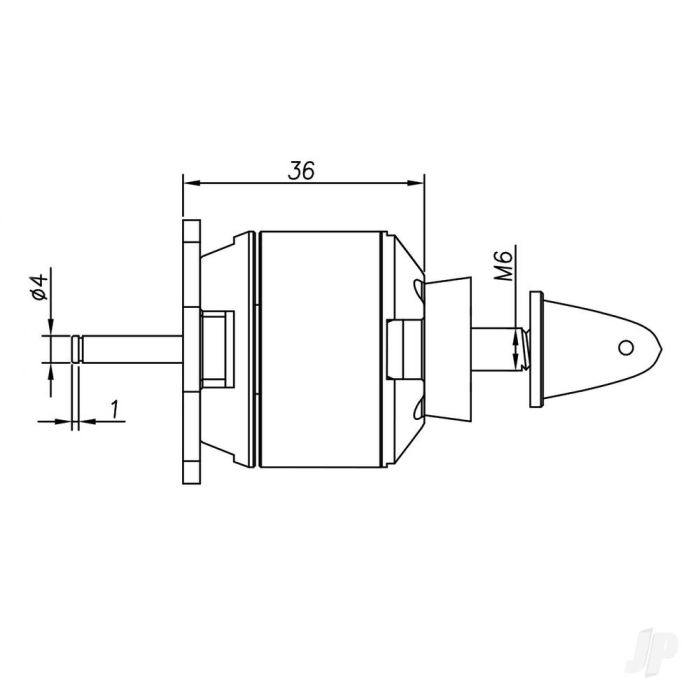

Shaft Dia. (mm): 4.0
Bullet Connector (mm): 3.5
Weight (g): 109
Prop Size / 3S (in): 8x6 / 9x5
Prop Size / 4S (in): 8x4 / 8x5
Includes1x Radient high-torque brushless motor.
1x Shaft prop drive.
1x Can prop drive.

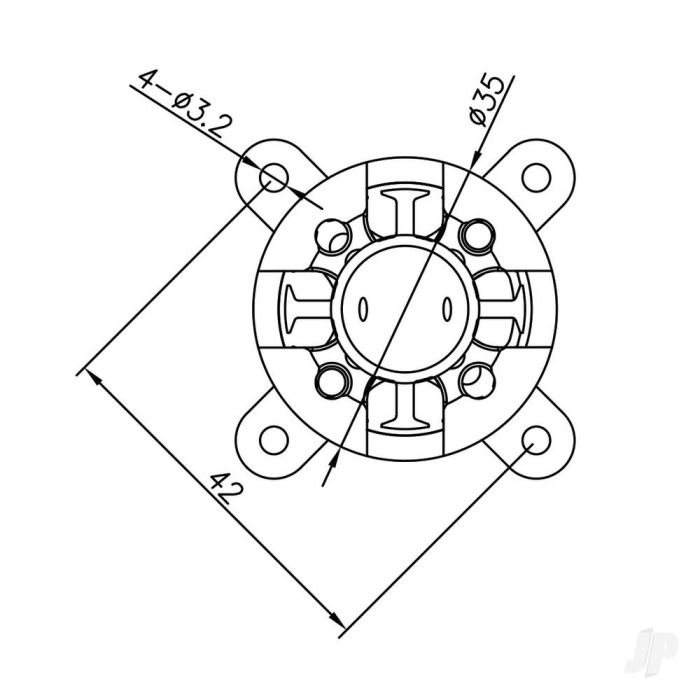

1x X-type mounting bracket.
4x Short countersunk screws for attaching the bracket to the motor.
4x Long cap head screws for can prop drive installation.
Features
Specification:
Includes
More Information
| Part Number | RDNM35361500 |
|---|---|
| Manufacturer | Radient |
