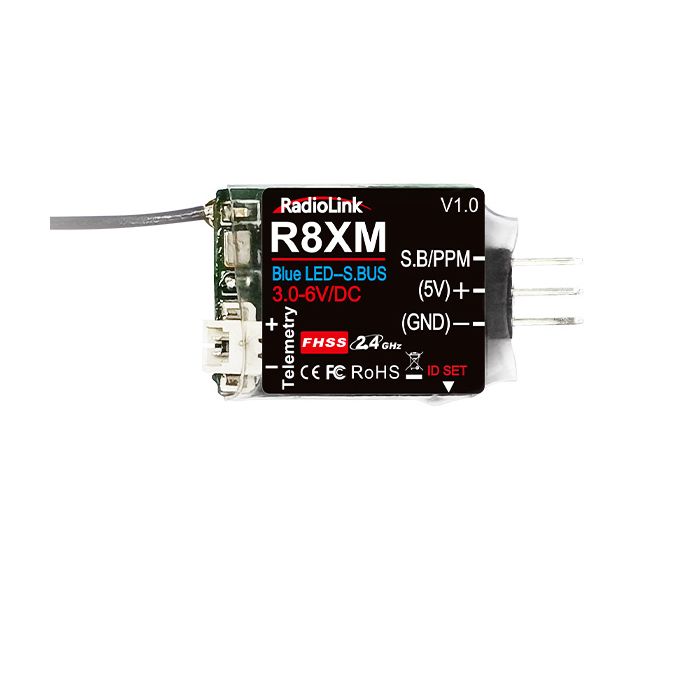

RadioLink R8XM 8 Channel Receiver w/Telemetry (for T8S, T8SB)

Features

8 channels of SBUS/PPM signal output.

Real-time Built-In Telemetry

Transmission of RSSI, Receiver Voltage, and Model Voltage

Compatible with flight controllers such as PIXHAWK, Mini Pix, TURBO PiX, APM, F4, F7 etc.

Weight of 4g and small size of 22*17mm make R8XM is tiny enough even for mini racing drone and glider.

Specification

Dimension: 22*17mm

Weight: 4g

Antenna Length: 90mm

Channel Quantity: 8 channels

Operating Voltage: 3-6V DC

Operating Current: 40mA±5mA@5V

Signals: SBUS/PPM

Output Frequency: 2.4GHz ISM band（2400MHz~2483.5MHz）

Spread Spectrum: FHSS, 67 channels pseudo-random frequency hopping

Adaptable Models: Racing drone/Rotary Wing/Fixed wing/Glider/Multicopter/Car/Boat/Robot (must work with flight controller)

Control Distance: 4000 meters (2.49Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).

Transmission: Return of signal, RSSI, receiver voltage

Model Voltage Telemetry: 2S-6S LiPo battery(7.4V-25.2V)

Compatible Transmitter(must work with flight controller): T8FB(BT)/T8S(BT)/T8FB(OTG)/T8S(OTG)/

RC8X/RC6GS V3/RC6GS V2/RC6GS/RC4GS V3/RC4GS V2/RC4GS

Part Number	RLKA001031
Manufacturer	RadioLink
