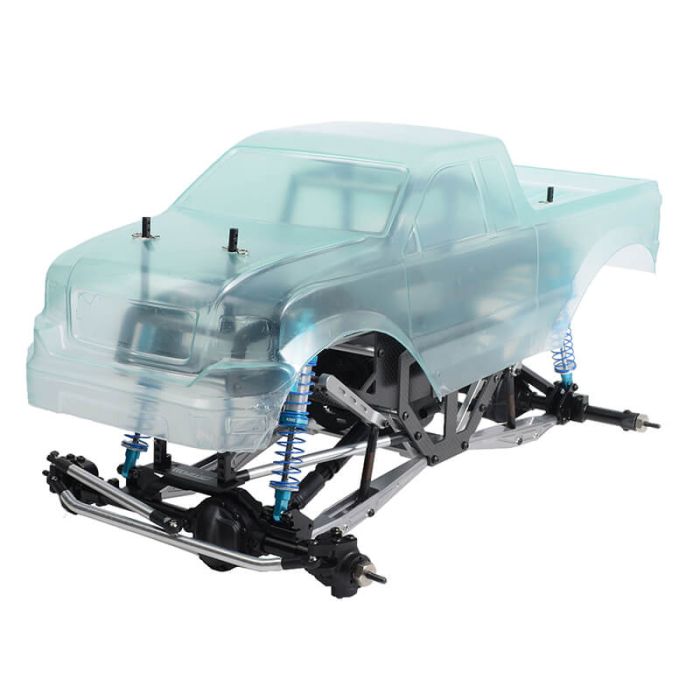

RC4WD 1:10 Carbon Assault RC Monster Truck Kit w/Manticore Body Set

RC4WD's Carbon Assault Monster Truck has been created with premium parts and boundless customization, it uses proven suspension geometry and a light-weight carbon fiber chassis coupled with rugged CNC billet aluminium chassis components. The Carbon Assault Builder's Kit is only limited by your creativity, a great starting point for any builder looking for a high performance monster truck kit.

The Carbon Assault Monster Truck incorporates a chassis with multiple suspension mounts for various arrangements, suspension links that mimic dimensions of proven setups and a robust AX2 2-Speed transmission with hardened steel gears and a second gear for increased speed. The box includes 1 body and a complete sticker sheet featuring the epic Carbon Assault Logo.

The Carbon Assault has components and features never seen on a monster truck kit before. This truck is loaded with premium parts and will give hours of fun and a superior platform for the advanced builder.


Features

CNC Machined 2MM Carbon Fiber Chassis

CNC Billet Aluminum Chassis Braces & Skid Plates

CNC Billet Aluminum Axle Tubes & Trusses

AX-2 Speed Transmission

RC4WD Wide D44 Front & Rear Axles

Adjustable Front & Rear Sway Bars

King Off-Road Racing Dual Spring Shocks

Polycarbonate Monster Truck Body w/ Complete Decal Sheet

Dual Electronics Mounting Plate

Servo Mount for D44 Wide Axles

CNC Machined Trailing Arms

RC4WD Plastic Punisher Shaft V2

Specifications
AX2 2 Speed Transmission Transmission

CNC Machined Billet Aluminum

15T 32P Steel Pinion

60T 32P Delrin Spur

Gear Ratio Pinion / Spur Ratio = 4:1

1st Gear Ratio = 5.05:1

2nd Gear Ratio = 1.78:1

D44 Wide Axle

Ratio: 2.9 : 1

Pinion Gear: 0.8 Mod 13T

Hex Width: 242mm

Hardened Steel Gears

Case Material: Reinforced Nylon Plastic

CNC Billet Aluminum Trusses and Tubes

Suspension and Shocks

4 Link Front and Rear Suspension

King Off-road Dual Spring Shocks (110mm) - Can Be Oil Filled

Dimensions and Weight

Wheelbase: 358mm (14.1")

Width: 266mm (10.5")

Height: 244.3mm (9.6")

Final Drive Ratio: 2.9 : 1

Weight: 4.23Lbs / 1.92Kg

What's Included

1x RC4WD Carbon Assault 1/10th Monster Truck Builder's Kit w/ Manticore Polycarbonate Body Set

Required To Complete

Electronics (Motor, ESC, Servo, RX/TX)

Wheels

Tyres

Paint for Body

Grease and Lubricants

Notes

This is a kit that requires building time (approx. 2-3 hours)

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.
