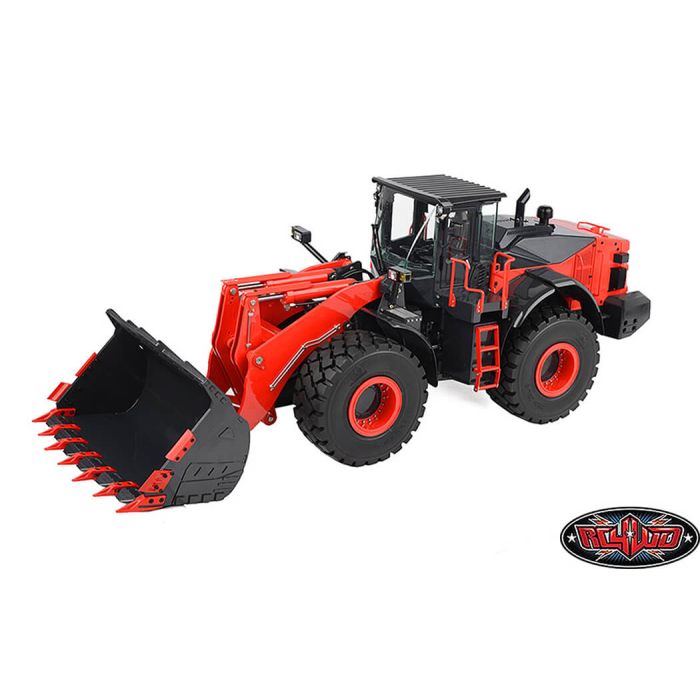

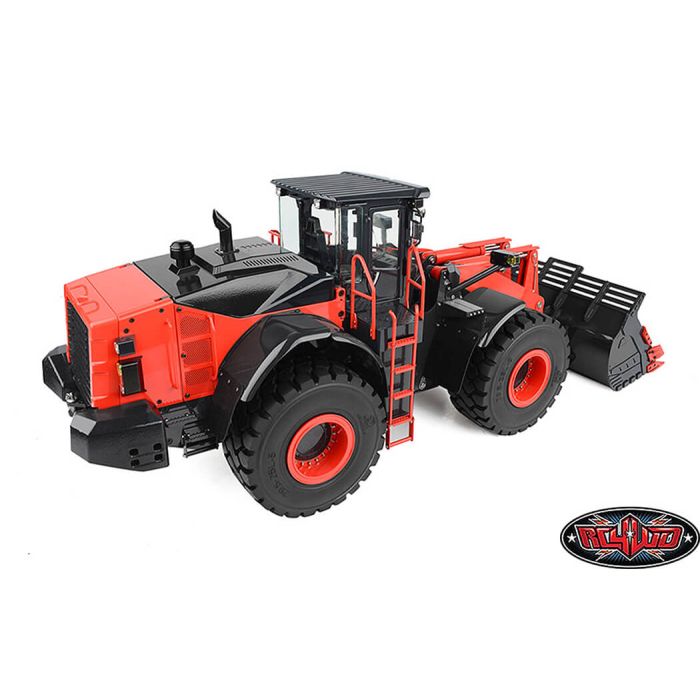

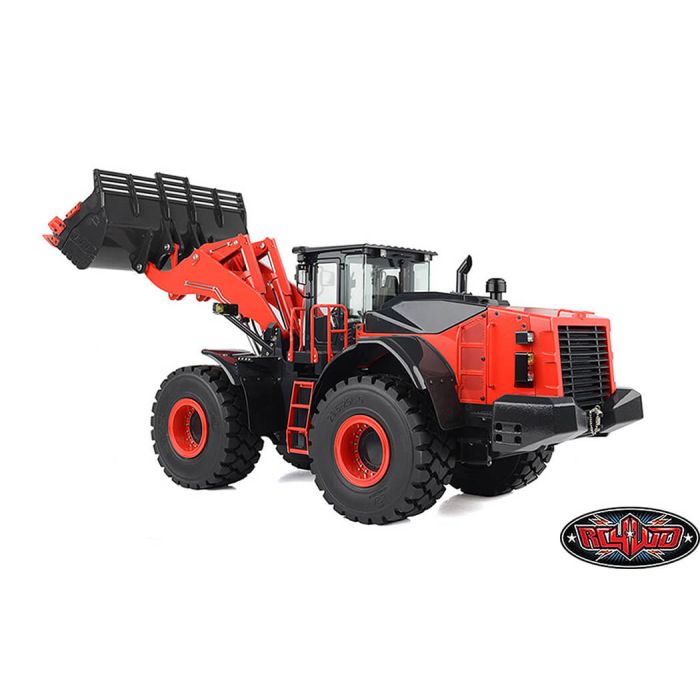

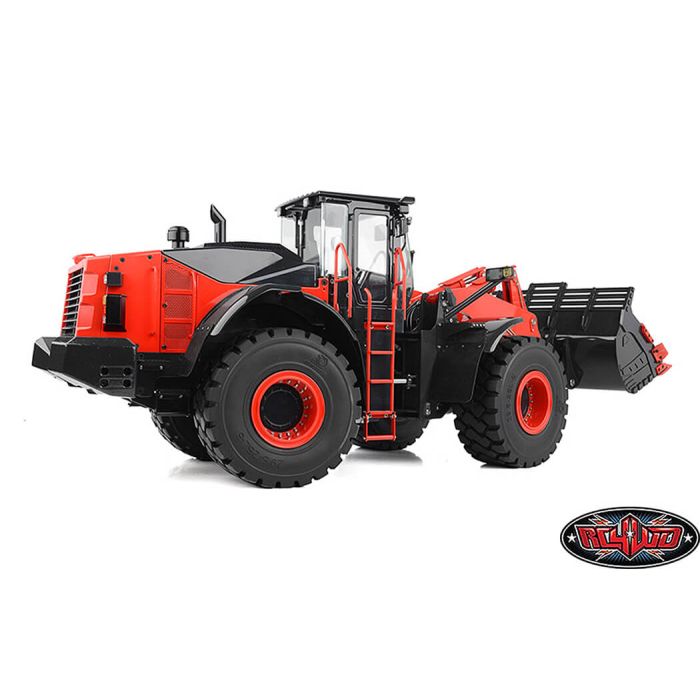

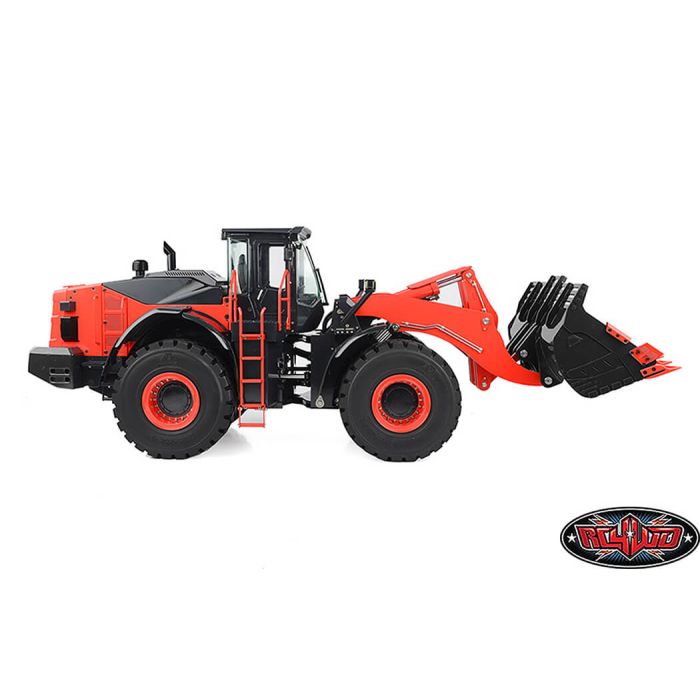

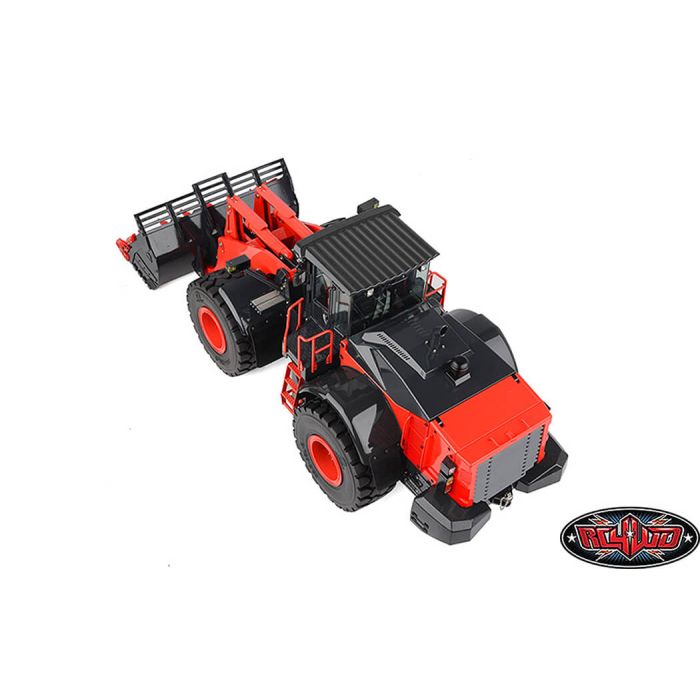

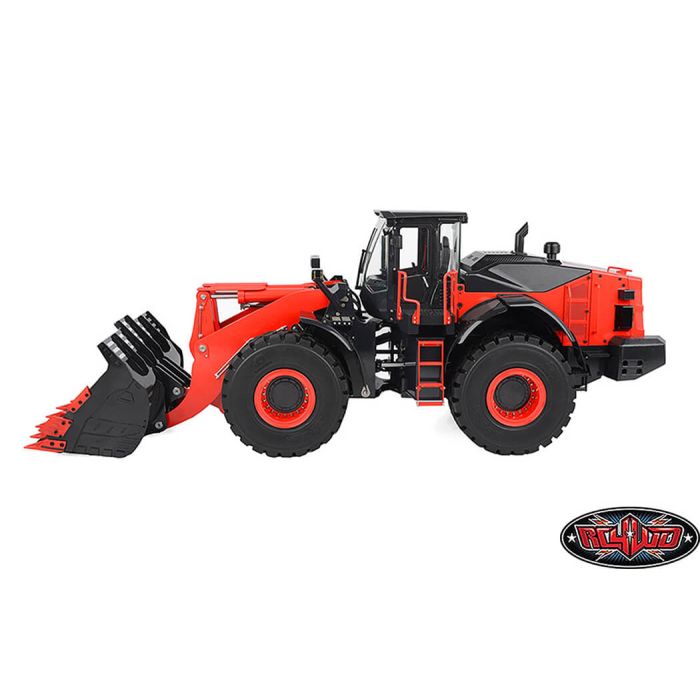

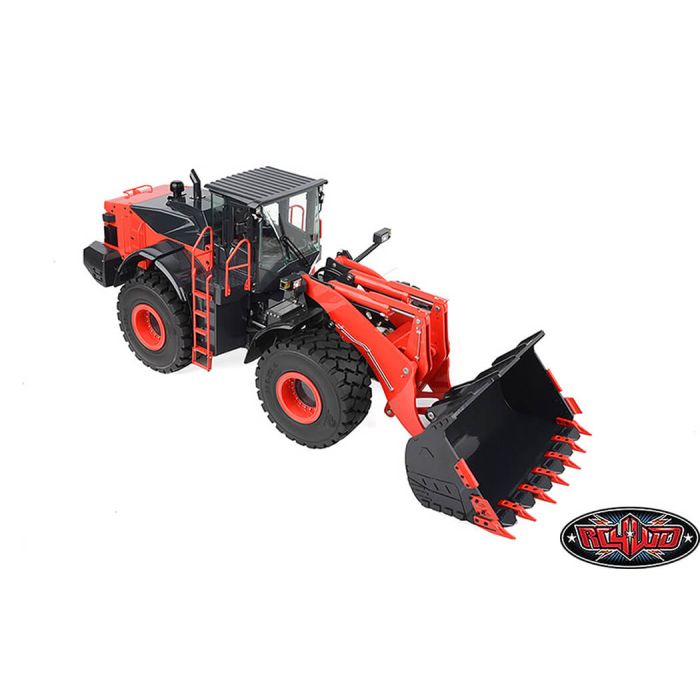

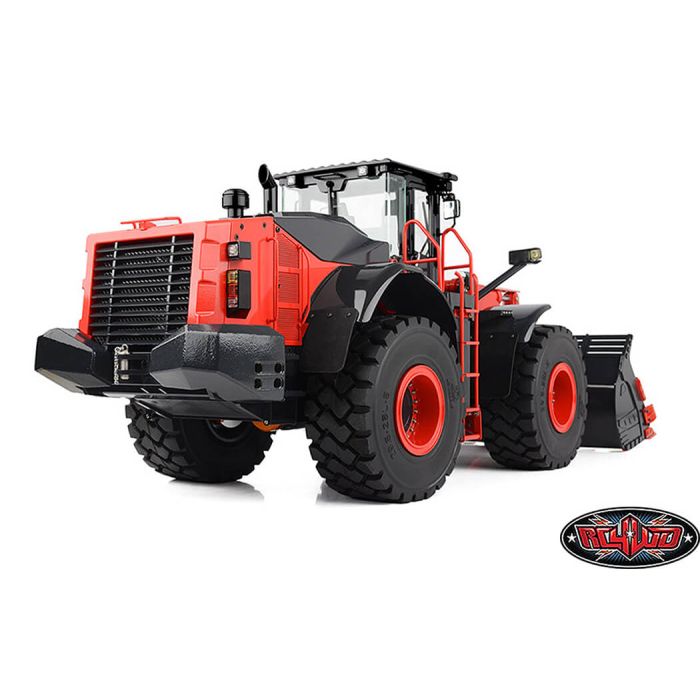

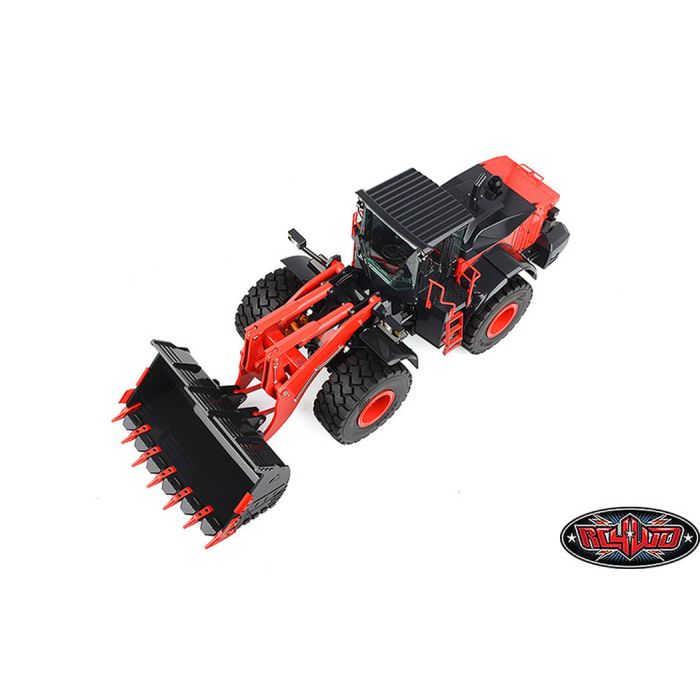

RC4WD 1/14 Earth Mover Z W370 Real Hydraulic Wheeled Loader ARTR (no Batt/Cgr)

Features

CNC Machined Metal Parts

Molded Steel Bucket

10 Channel 2.4Ghz Radio

Optimized Steel Hydraulic System

Scale Operator Station (can fit a driving figure)

137MM Model Special Tires

Reliable Hydraulic Valve and Adjustable Pump

High Pressure Nylon Hoses (OD 4.5mm, ID 2.5mm)

Powder Coated in Red

Brushless System (hydraulic)

40A Brushless ESC with BEC

270KV Brushless Monster Torque Motor

Realistic Non Functional Disk Break

Wheel with Planetary Gearbox Built-in

2 Speed Full Metal Transmission (1:64 and 1:16 gear ratio)

Realistic Full Metal Axles

Run Time is: 30 minutes (5000 mAh Battery)

LiPo Cutoff

Specifications

Scale: 1:14

Length: 27.9in / 710mm

Width: 9.84in / 250mm

Height: 10.5in / 268mm

Wheel Base: 9.92in / 252mm

Maximum Bucket Height: 18.1in / 461mm

Operating Oil Pressure: 3.50 Bar, 50.75 psi

Maximum Bucket Up and Down Angle: 46 to 64 degrees

Maximum Bucket Left and Right Angle: 38 degrees

Maximum Bucket Force: 40kg / 88lbs

Dead Weight: 16.5kg / 36.3lbs

Total Mass Load: 32kg / 70lbs

Theoretical Rise: 15kg / 33lbs (Boom Lift).Theoretical Traction: 30kg / 66lbs

Hydraulic Pump: Flow 0.8 L / MIN, Rated Pressure 2.5 MPA Ultimate Pressure 5 MPA

Requires

5000mAh 11.1V 50C 3S1P LiPo Battery Pack with XT60 Plug (Battery size must be no bigger than 140mm in length, 45mm in width, and 25mm in height)

Compatible Battery Charger

4 x AA Batteries for Radio

Chevron AW ISO 32 Hydraulic Oil 14oz (Z-X0042)

Part Number	VV-JD00070
Manufacturer	RC4WD
