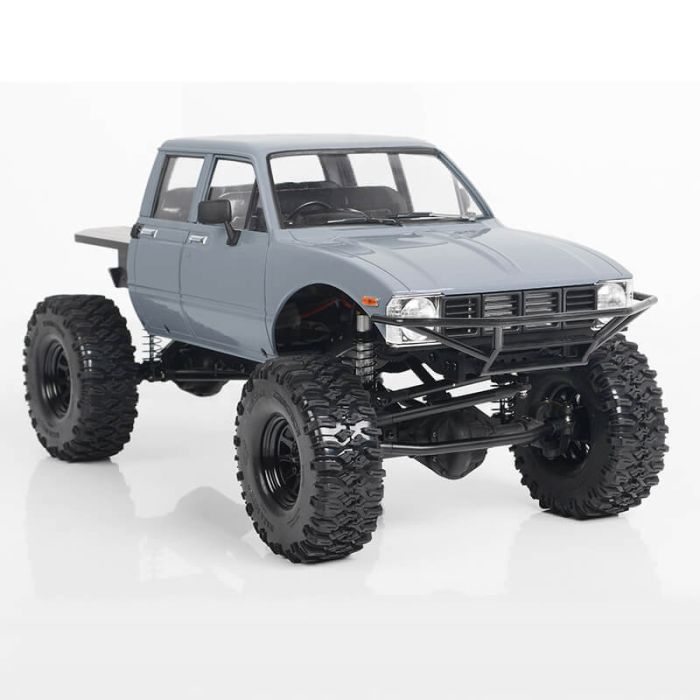

RC4WD C2X Class 2 Competition RC Truck w/Mojave 2 4 Door Body

Built from the ground up to be one of the most capable scale trucks RC4WD has created, the C2X was designed with performance and looks in mind. Whether you are an experienced competitor or a casual Trail driver this truck is ready right out of the box.

The C2X features the classic styling of the 4 Door Mojave body mated with the Marlin style grille and machined delrin bed. Underneath, the chassis is 3mm thick CNC aluminum offering multiple mounting positions for the suspension links and rear shocks. Slide over obstacles with ease thanks to the machined delrin skid plate. The heart of the chassis is made up of our trusted R3 Single Speed Transmission with the Hammer Transfer Case.

Whether you're driving for competition or just out trailing on the weekends, the C2X is sure to exceed your expectations.


Features

RC4WD D44 Narrow Front And Rear Axles

Custom Designed For Looks And Performance

Twister High Torque Metal Gear Digital Servo

Chassis Mounted Steering Servo

540 Crawler Brushed Motor 35T

Rock Crawler RRD Emulsion Scale Dual Spring Shocks

Mickey Thompson 1.9" Scale Tyres

R3 Single Speed Transmission

CNC Machined And Bent Aluminum Chassis Frame

Center Mounted Realistic 4X4 Transfer Case

Outcry III Waterproof ESC

Scale Off-road Style Custom Delrin Bed

4 Link Rear And 3-Link W/ Panhard Bar Front Suspension

OEM Stamped Steel 1.9" Beadlock Wheels

6-Cell 3000mAh NIMH Battery Pack

NIMH Peak Battery Charger

Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1
Internal Ratio = 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

D44 Plastic Complete Rear Axle
Ratio: 38/13 = 2.92:1
Width at pin: 182.5mm

C2X Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Ultra Durable High Quality Steel Yokes

Wheels
Name: OEM 1.9" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 24.3mm
OD: 48.3mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Scale 6 Lug Design

Truck Dimensions
Wheelbase: 318mm (12.5")
Length: 499mm( 19.6")
Width: 239mm (9.4")
Height: 236mm (9.3")
Ground Clearance: 74mm (2.9")
Final Drive Ratio: 34.9:1
Weight: 7.60Lbs/3.45Kg


What's Included

1x RC4WD C2X Class 2 Competition Truck w/ Mojave II 4 Door Body

Notes

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Do not over tighten screws, otherwise you may strip the thread.
