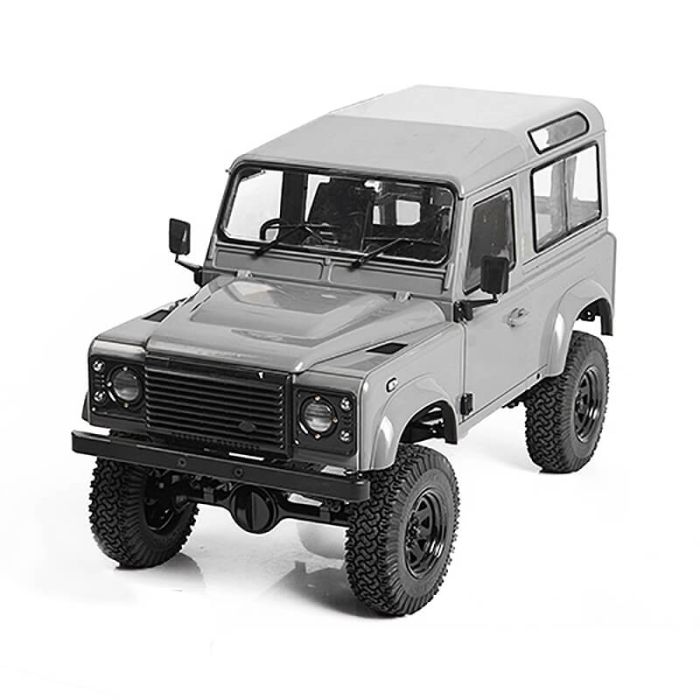

RC4WD Gelande 2 RC Crawler Truck Kit w/Land Rover Defender D90 Hard Body Set

Experience the versatility and advanced design of the G2 for yourself. Packed full of capability, the G2 is ready for any challenging condition. Put your off-road driving to the test and see why the G2 can easily maneuver extreme descents and climb with ease.

The G2 is built with quality materials and craftsmanship like the R3 single speed transmission providing power down to the transfer case and out to the Yota II Axles.

The G2 comes with a 4 link rear and 3 link panhard bar suspension as a standard feature. The chassis mounted servo is out of view for a more scale appearance.

The G2 is completely versatile and can pull off many looks and styles. With the countless options available, RC4WD let's you customize your G2 exactly how you want without sacrificing performance. From emergency and expedition vehicles to daily drivers and hard core rock climbing rigs, the core of the G2 is built for the true off-road enthusiast!

Are you ready for your off-road experience?


Features

Custom Designed for True to Scale Looks

Realistic Aluminum Ladder Frame Chassis

R3 Single Speed Transmission

Center Mounted Realistic 4x4 Transfer Case

Yota II Ultimate Scale Cast Axles

3 Link Front and 4 Link Rear Suspension

1.9" Stamped Steel Beadlocks W/Lug Nuts

Super Grip Dirt Grabber Tires

Chassis Mounted Steering servo

Plastic Fuel Cell Receiver Box

Dual Spring Oil Filled Shock Absorbers

Specifications
Hammer Transfer Case
Ratio: 1.47:1
Gears: Wide 0.8 Mod Hardened Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios: Pinion/Spur 14/64 = 4.57:1 Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67:1
Width at Hex: 178.2mm

G2 Suspension
Double Triangulated 4 Link Rear Suspension
3 Link Suspension with Panhard Bar

Shock Absorbers
Dual Spring 80mm Shocks: Can be Oil Filled

Wheels
Type: 1.9'' 5 Lug Wagon Wheels
Hub: Pin Type
Width: 25mm
Back Spacing: 11mm

Bumpers
Machined Billet Aluminum, Lightweight

G2 Truck Dimensions
Wheelbase: 275mm (10.8")
Width: 213mm (8.3")
Height: 252mm (9.9")
Ground Clearance: 58mm (2.2")
Final Drive Ratio: 31.9:1
Weight: 5.58Lbs / 2.533Kg


What's Included

1x RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set

Please Note: This is a kit that requires building time (appro. 2-3 hours) and electronics.


Required To Complete
Truck Kit

Hex Drivers (1.5mm, 2mm, 2.5mm)

Long Nose Pliers

Blue Thread Lock

Cross Wrench or Nut Driver (4mm, 5.5mm, 7mm)

Body Kit

Modeling / Craft Knife

Long Nose Pliers

Side Cutters

Instant Glue / Plastic Solvent / ShoeGoo / E6000 / 2-part Epoxy

Hex Drivers (1.5mm, 2mm)

Cross Phillips Screwdriver (Small)

Electronics

Motor (35t, 45t or 55t)

Outcry III Waterproof ESC (Z-E0113), or Outcry Extreme Speed Controller ESC w/ Program Card (Z-E0118)

Radio and Receiver (2 channel or more) (3 Channel Z-R0009, or 4 Channel Z-R0006)

Twister High Torque Metal Gear Digital Servo (Z-E0035)

Battery (Consult your "ESC" manual) Z-E0090 or 2 cell Lipo battery

Charger (Consult your battery guide) Chargers

Notes

While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

Do not over tighten screws otherwise you may strip the thread.

Requires 5mm Black Spacer with M3 Hole (Z-S0821) to install Hull Front Bumper W/ Steering Guard for Gelande II (D90/D110) (VVV-C0707) and Hull Front Bumper W/ Steering Guard and IPF Lights for Gelande II (D90/D110) (VVV-C0708).

Be sure to shim your axles if needed
