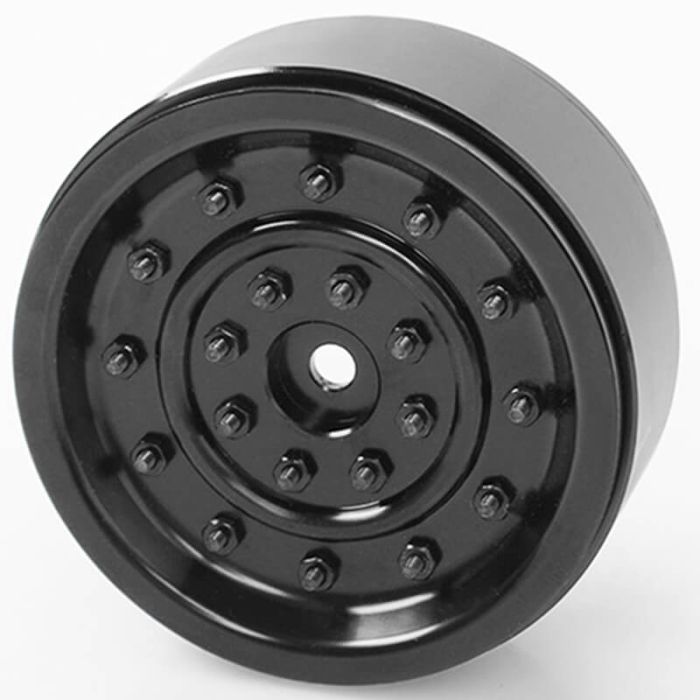

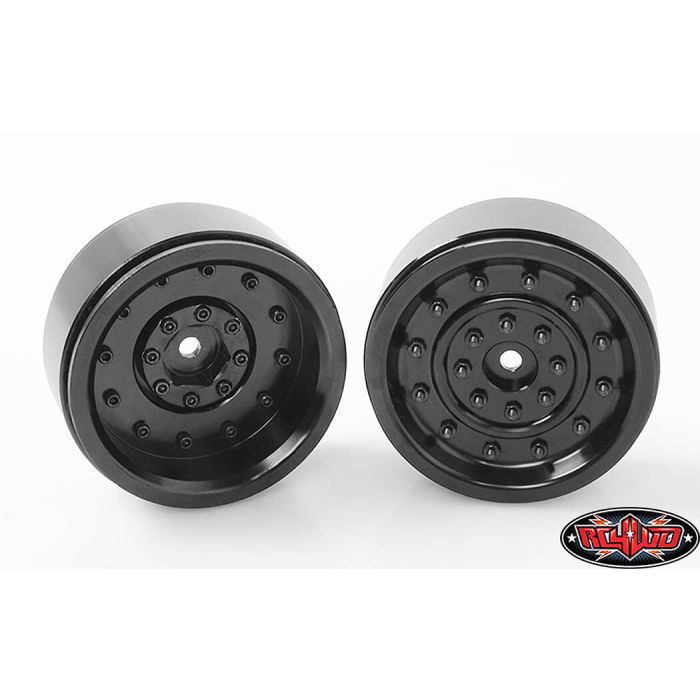

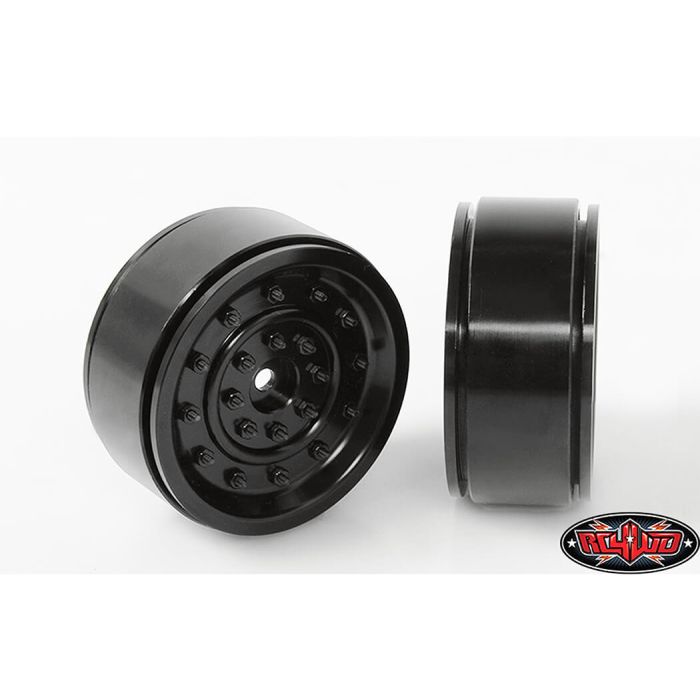

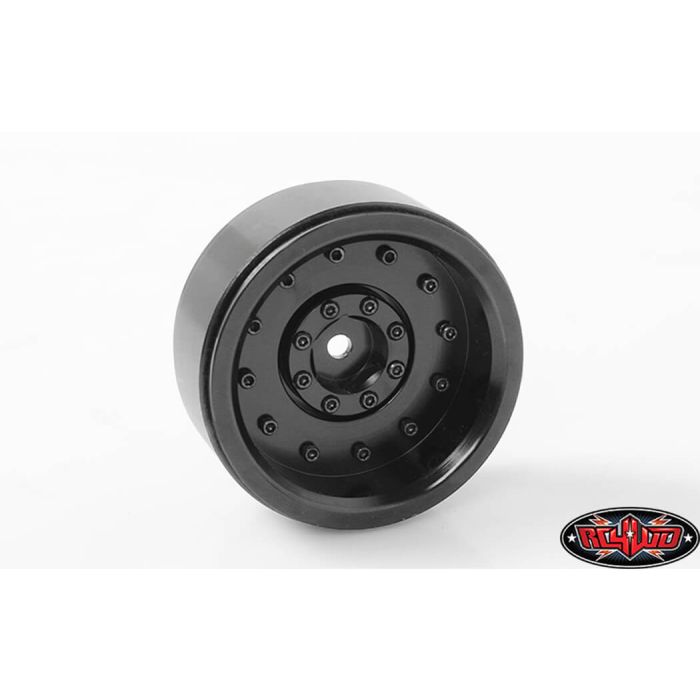

RC4WD Humvee 1.9" Internal Beadlock Wheel

The most scale wheel to date and is CNC machined from aircraft grade aluminum with extreme detail and a functional internal beadlock. Engineered by Fracture in New Zealand, manufactured by RC4WD.
Because of the difficulties of fitting a traditional bead-locking ring on the inside of a wheel while clearing steering components a different approach is required for double beadlocks. The Internal beadlock approach is completely different from normal slot based beadlock.

Specifications

Fits Tires: 1.9"
Hex Size: 12mm
Wheel Size: 1.9"
Wheel Width: 1" / 25.4mm
Positive Offset: 0.13" / 3.4mm
Outside Diameter: 1.9" / 48.26mm
Each Wheel Weighs: 3.2oz / 91g
Colour: Black

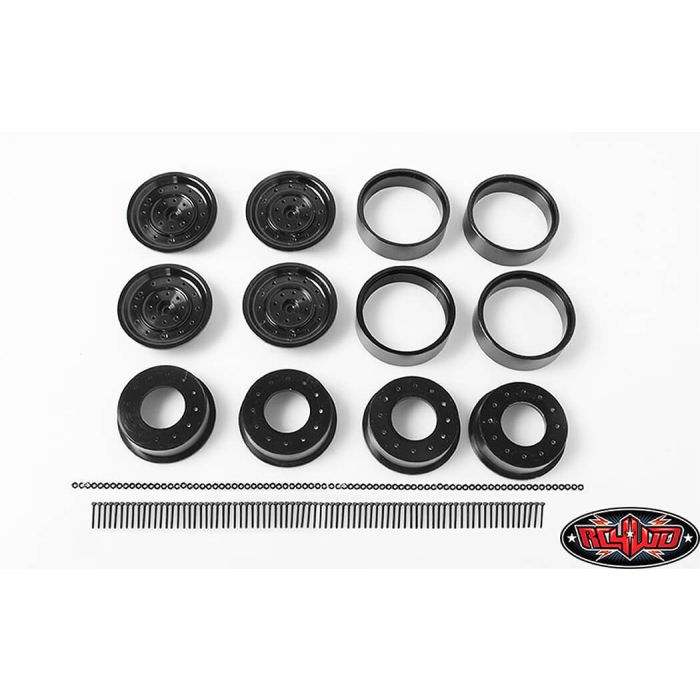

What's Included

4 x 1.9" Humvee Beadlock Wheels

Replacement Hardware

80 x M1.6x12mm Screw (Black

80 x M1.6 Nut (Black)

Optional Parts

1.9 Proline Tire Compatible Internal Beadlock Rings (Z-S0846)

Notes

CNC Machined Billet Aluminum and Internal Beadlock design

This wheel fits the Rock Beast 1.9" Scale RC Tires

Fit Tamiya hummer tires, bfg's or any our 1.9 size tires.Fit truck with 12mm wheel hex, such as Tamiya F-350, Hilux and RC4WD Trail Finder

Fits GMADE Sawback

Due to many different methods to design tires and wheels, we have no control over other manufacturers products. So we can only tell you that RC4WD tires and wheels work together. In some cases our wheels and tires will work with other brand wheels and tires, but we can not guarantee the outcome

Because the scale nature of this wheel, each tiny steel nuts and bolts is extremly easy to break during installation. Each wheel is shipped unassembled and can take up to 45-60 minutes to assemble just one wheel
