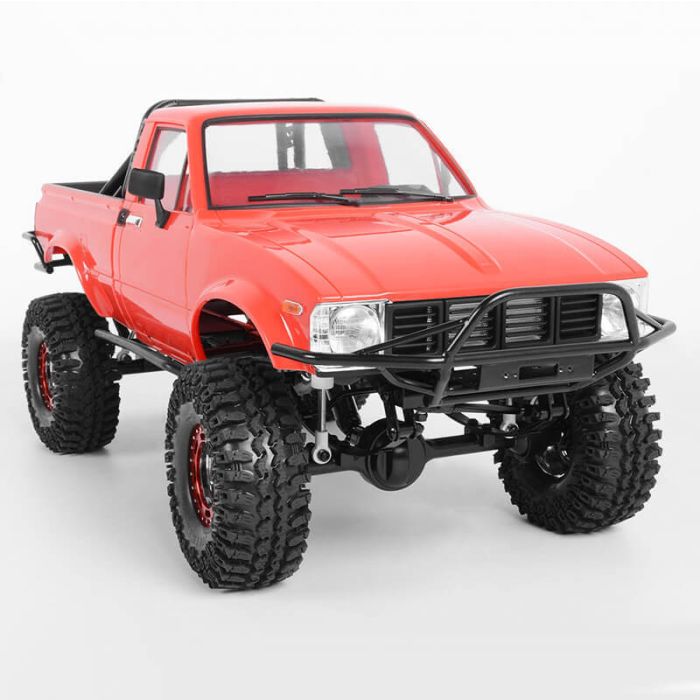

RC4WD Marlin Crawler Trail Finder 2 RTR W/Mojave 2 Crawler Body Set

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the TF2 RTR. Part scale truck, part adventurer, your TF2 RTR is ready for your mud kicking trail-loving lifestyle!

The TF2 RTR has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every TF2 RTR. Performance of the TF2 RTR is smooth and with its single speed transmission, 4WD drivetrain, bulletproof transfer case and quality metal components throughout. The TF2 RTR is truly a work of art in both appearance and performance.

Every TF2 RTR is compatible with a full range of options and performance parts designed to enhance the performance and add to the scale look of the only true scale 1/10 offroad truck... The TF2 RTR.

Your adventure awaits....


Features

Yota II Ultimate Scale Cast Axles

Custom Designed for True to Scale Looks

Twister High Torque Metal Gear Digital Servo

Chassis Mounted Steering Servo

540 Crawler Brushed Motor 45T

Super Soft Flex Leaf Springs For TF2

Interco IROK 1.7'' Scale Tires

R3 Single Speed Transmission

Realistic Aluminum Ladder Frame Chassis

Center Mounted Realistic 4x4 Transfer Case

Outcry III Waterproof ESC

Plastic Fuel Cell Receiver Box

Superlift Superide 80MM Shock Absorbers

TRO 1.7" Stamped Steel Beadlock Wheels

6-Cell 3000MAH NiMH Battery Pack

NiMH Peak Battery Charger

Specifications
Hammer Transfer Case
Ratio: 1.47: 1
Gears: Wide .8 Mod Steel Gears
Features: 8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios Pinion/Spur: 14/64 = 4.57:1
Internal Ratio: 1.78:1
Gears: Wide Steel .8 Mod, Delrin Spur, Slipper Clutch

Cast Yota II Axles
Ratio: 15/40 = 2.67: 1
Width at Hex: 180.5mm

TF2 Chassis
Features: Billet Aluminum Construction, Adjustable Shock Hoops

Drive Shafts
High Quality Plastic Material, Very Durable High Quality Steel Yokes

Wheels
Name: TRO 1.7" Stamped Steel Beadlock Wheels
Hub: 12mm Hex
Width: 25mm
OD: 50mm
Features: Stamped Steel, Aluminum Hubs, Internal Beadlock, Very Scale Looking, 6 Lug Design

Truck Dimensions
Wheelbase: 287mm (11.3")
Width: 221mm (8.7")
Height: 230mm (9")
Ground Clearance: 72mm (2.83")
Final Drive Ratio: 31.9:1
Weight: 6.45Lbs/2.93Kg


What's Included

1 x RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set

Notes

While some components may come assembled, it may be in your best interests to check the products to ensure all hardware is tight. In some cases you may want to apply thread lock to some of the hardware that is already installed.

Use good quality hex drivers to avoid stripping screw heads.

Use thread lock when putting metal screws into metal parts.

Steps marked with an asterisk (*) require thread lock.

Use thread lock sparingly.

In some cases, you may want to apply thread lock to some of the hardware that is already installed.

Do not over tighten screws, otherwise you may strip the thread.
