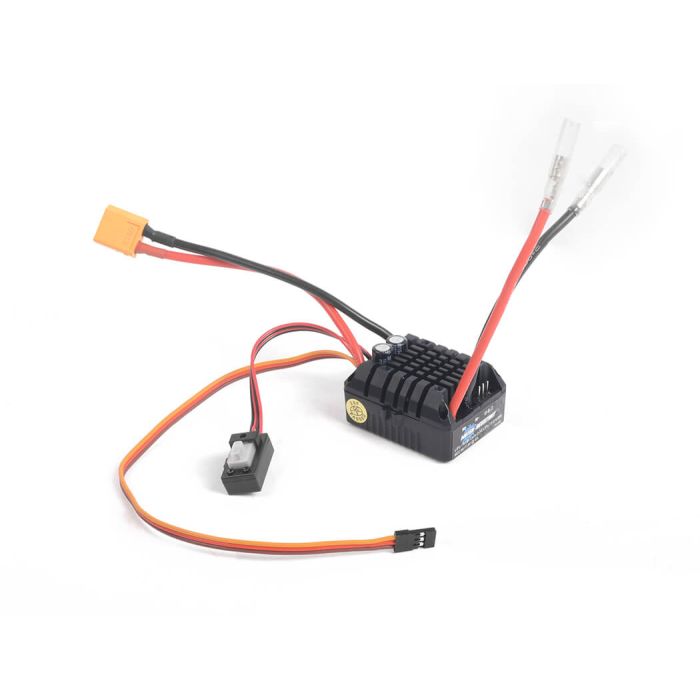

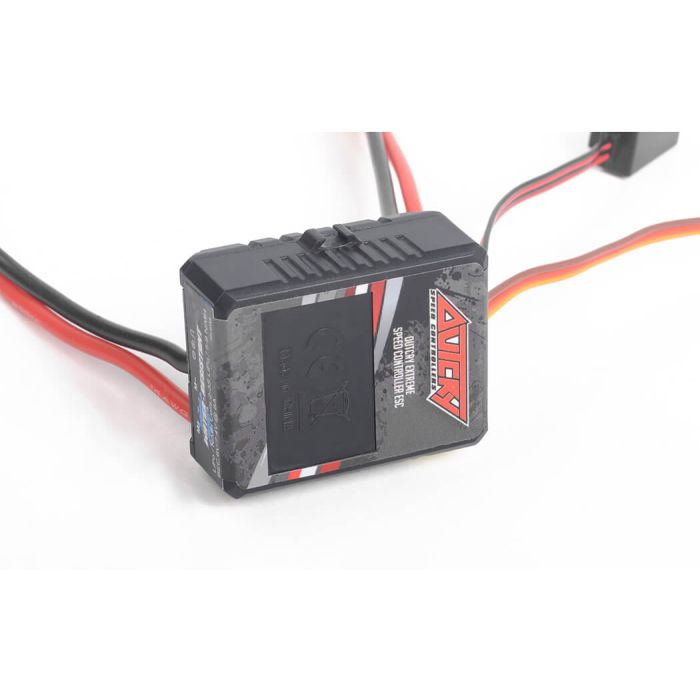

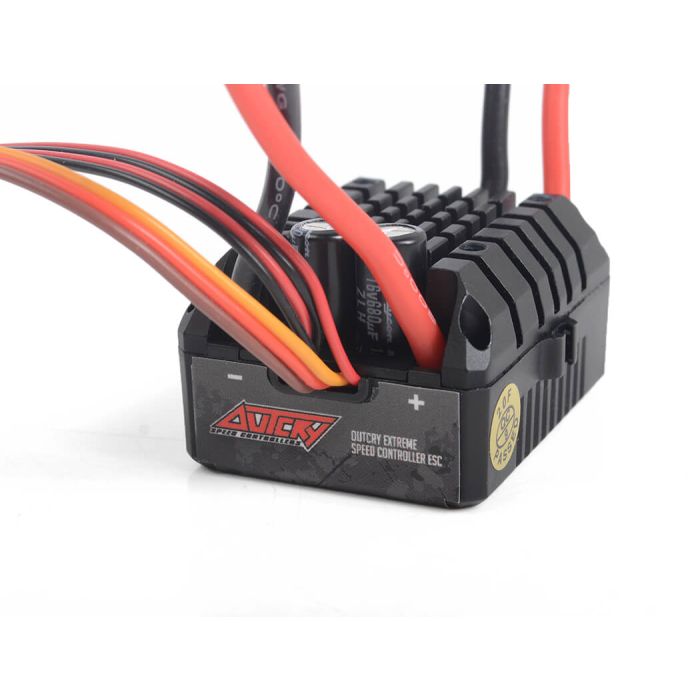

RC4WD Outcry Extreme Speed Controller ESC W/ Program Card

Features

Input Voltage: 2-3S Lipo/5-9 Cells NiMH

Built-in Powerful Switch-mode BEC

BEC Output Voltage-Current: 6V / 7.4V @ 8A

Cont. / Peak Current : 80A / 400A

Applicable to All Weather Conditions

Specifications

Multiple Protection Functions: Low Voltage Protection, Over-temperature Protection
Recommended Motors: 540 /550 / 775 Motors
Size: 1.96 x 1.68 x 1.04in / 50 x 42.9 x 26.5mm
Program Card Working Voltage: 5.0V - 8.0V
Program Card Size: 1.53 x 0.47 x 22.0in / 38.9 x 12.0 x 55.9mm
Total Weight: 1.37oz / 110.5g
Battery Plug: XT60

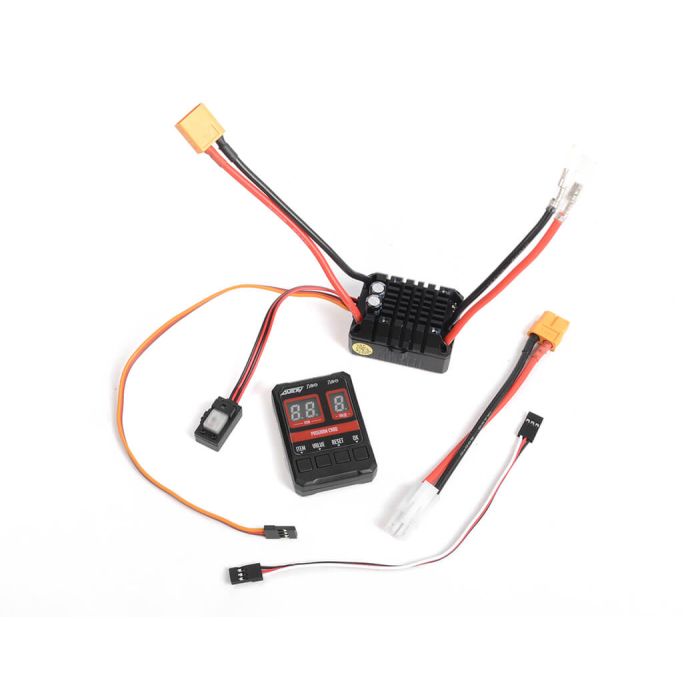

What's Included

1 x Outcry Extreme Speed Controller ESC

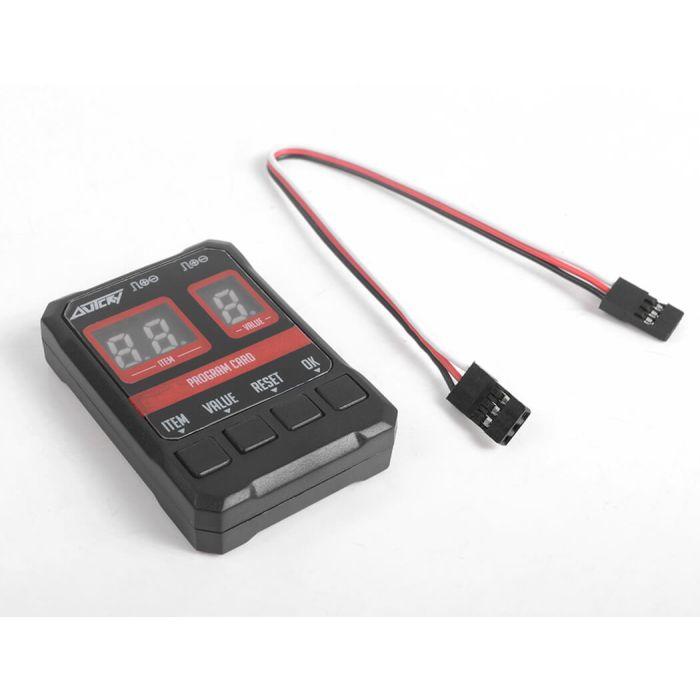

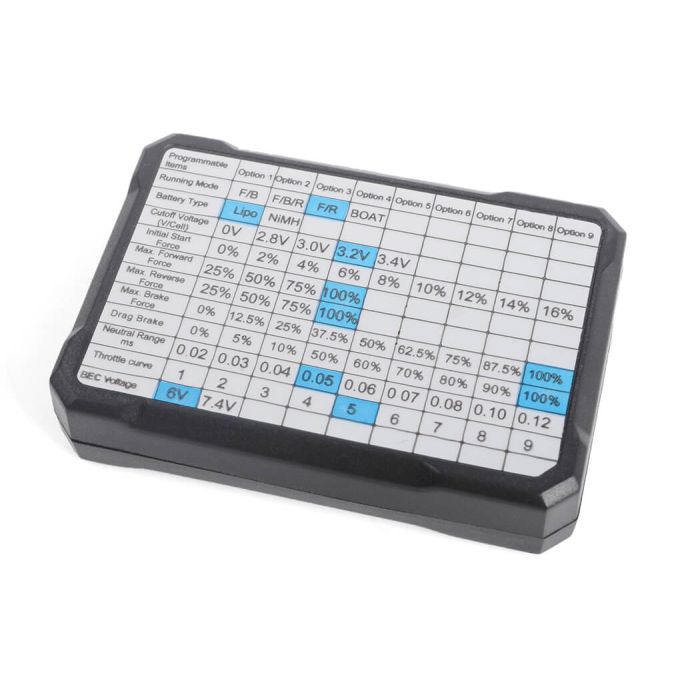

1 x LED Program Card

1 x XT60 Female to Tamiya Male Connector Adapter

1 x Extension Wire 150mm

Fits

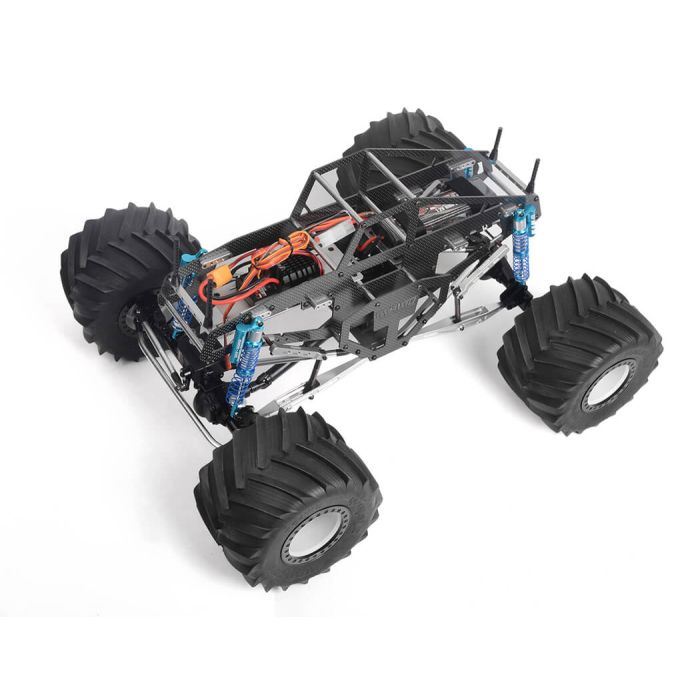

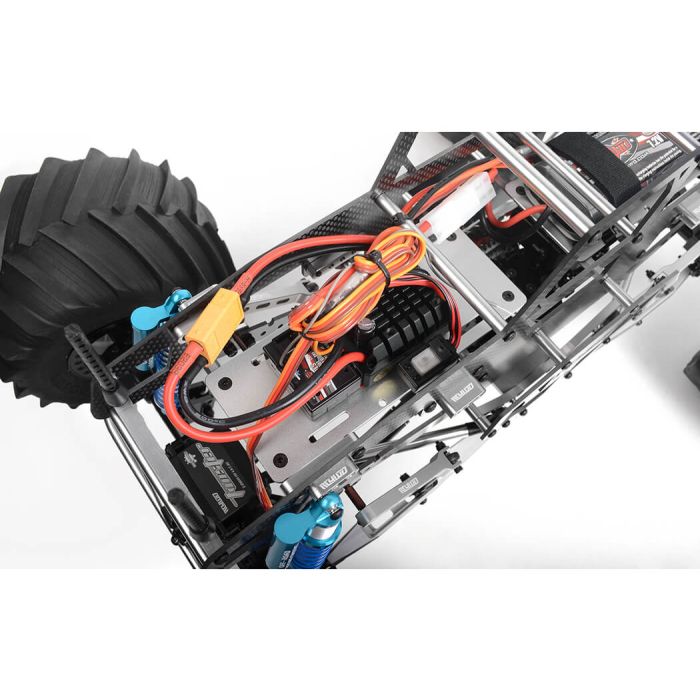

RC4WD Trail Finder 3 RTR W/ Mojave II Hard Body Set (Z-RTR0045)

Notes

Prior to proceeding, be sure to either remove the pinion from the motor or elevate the truck so the wheels are not able to touch the ground.

Do not touch this product while in use to avoid injury. Product emits heat and thus, the heatsink may become extremely hot.

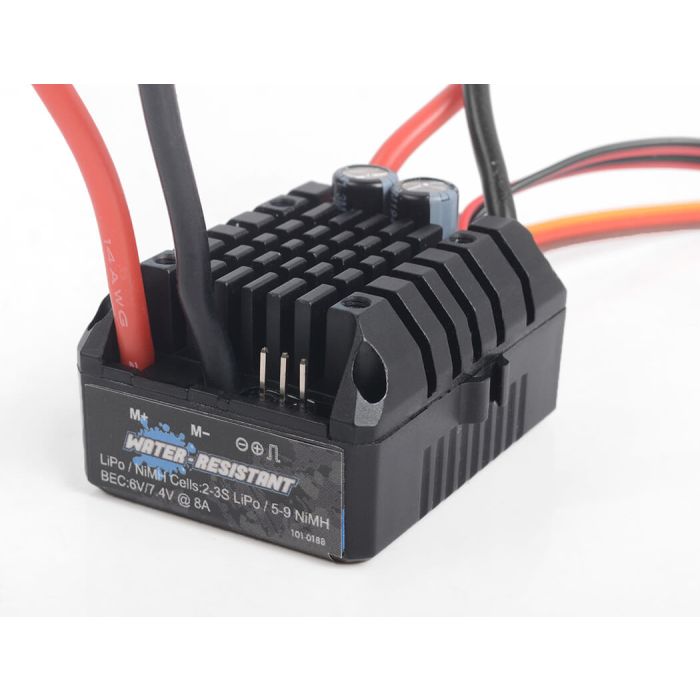

This product is water-resistant.

Begin using your ESC by calibrating with your transmitter. We strongly recommend all users to use the “Fail Safe” function on the radio system and set (F/S) to “Output OFF” or “Neutral Position” . Example of calibrating Neutral range and Endpoint.

Part Number	Z-E0118
Manufacturer	RC4WD
